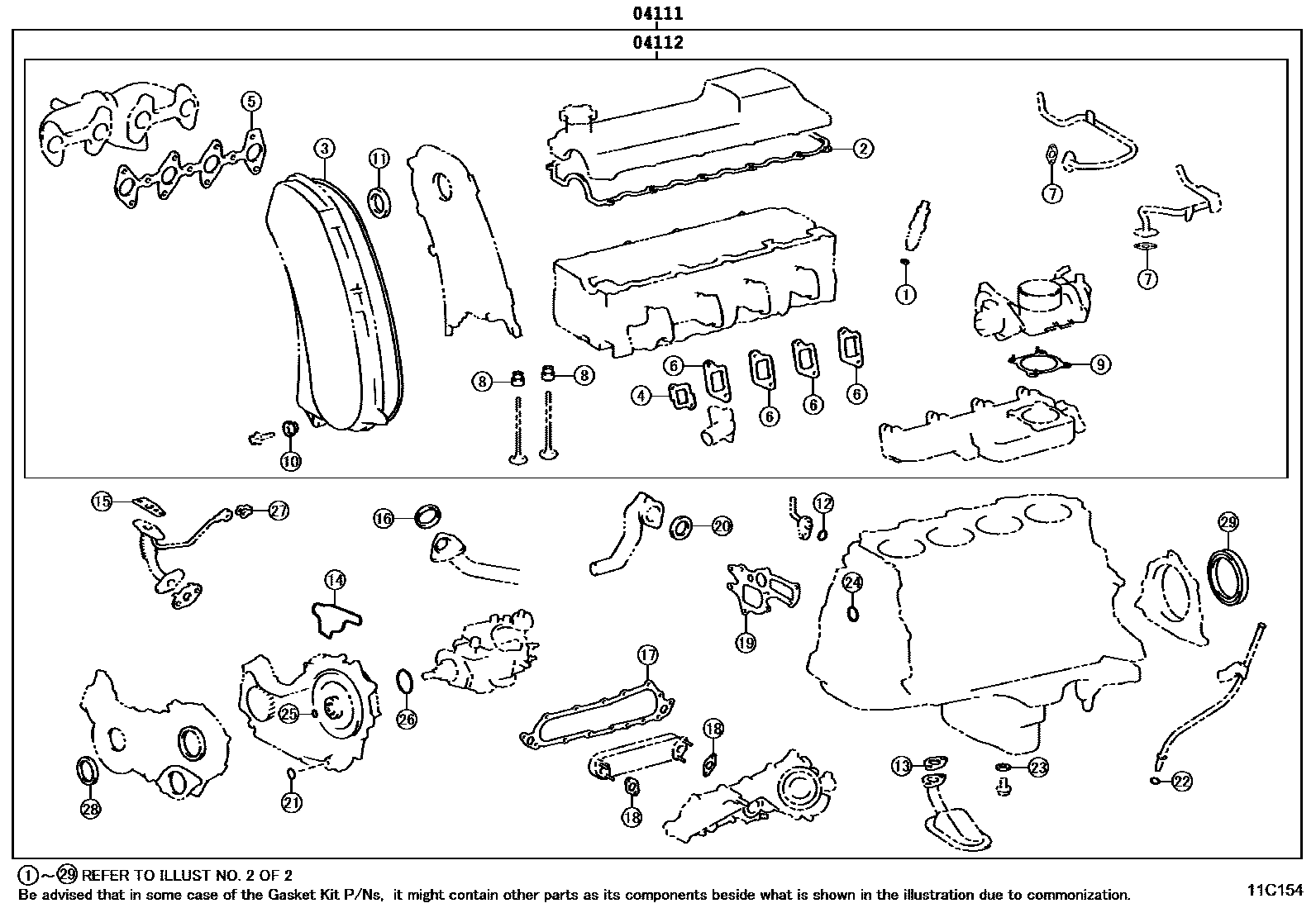

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1 0020 1 0021 1 0022 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-35330i22R..RN110,130..ARL199006-199708

main04111-35340i22R..RN105,135..V199006-199011

main04111-35341i22R..RN10#,13#..(DLX,SR5)..(GEN,V)199011-199311

main04111-35342i22R..RN135;22R..RN10#,130..LHD199311-199909

main04111-35350i22R..RN105..ARL199006-199011

main04111-35351i22R..RN10#..RHD199011-199311

main04111-35352i22R..RN10#..RHD199311-199708

main04111-35360i22RE..RN106199401-199909

main04111-35390i22R..RN110,130198808-199006

main04111-35400i22R..RN105,135..V198808-199006

main04111-35410i22R..RN105..ARL198808-199006

main04111-54090i3L..LN106,111198808-198904

main04111-54091i3L..LN106,111,135198904-198908

main04111-54092i3L..LN106,111,13#198908-199108

main04111-54093i3L..LN10#,111,13#199108-199705

main04111-54094i3L..LN10#,111199705-200008

main04111-54095i3L..LN107200008-200106

main04111-54340i5L..LN205200106-200401

main04111-54470i5L..LN205200401-200412

main04111-65011i3VZE..VZN130199008-199110

main04111-65012i3VZE..VZN130199110-199201

main04111-65013i3VZE..VZN130199201-199208

main04111-65014i3VZE..VZN130199208-199403

main04111-65015i3VZE..VZN130199403-199508

main04111-65016i3VZE..VZN130199508-199511

main04111-67041i1KZTE..KZN205200108-200401

main04111-67080i1KZTE..KZN205200401

main04111-73034i4YE..YN130198908-199001

main04111-73035i4YE..YN130199001-199008

main04111-73042i4Y..YN106,135198808-199001

main04111-73043i4Y..YN106,135199001-199106

main04111-73044i4Y..YN106,135199106-199708

04112GASKET KIT, ENGINE VALVE GRIND

main04112-35310i22R..RN110,130..ARL199006-199708

main04112-35320i22R..RN105,135199006-199011

main04112-35321i22R..RN10#,135;22R..RN130..GEN199011-199311

main04112-35322i22R..RN10#,135;22R..RN130..GEN199311-199909

main04112-35330i22RE..RN106199401-199909

main04112-35360i22R..RN110,130198808-199006

main04112-35370i22R..RN105,135198808-199006

main04112-54070i3L..LN106,111,13#198908-199108

main04112-54071i3L..LN10#,111,13#199108-199705

main04112-54072i3L..LN10#,111199705-200008

main04112-54073i3L..LN107200008-200106

main04112-54080i3L..LN106,111,135198808-198908

main04112-54280i5L..LN205200106-200401

main04112-54410i5L..LN205200401-200412

main04112-65011i3VZE..VZN130199008-199110

main04112-65012i3VZE..VZN130199110-199201

main04112-65013i3VZE..VZN130199201-199208

main04112-65014i3VZE..VZN130199208-199403

main04112-65015i3VZE..VZN130199403-199508

main04112-65016i3VZE..VZN130199508-199511

main04112-67041i1KZTE..KZN205200108-200401

main04112-67080i1KZTE..KZN205200401

main04112-73033i4YE..YN130198908-199001

main04112-73034i4YE..YN130199001-199008

main04112-73041i4Y..YN106,135198808-199001

main04112-73042i4Y..YN106,135199001-199106

main04112-73043i4Y..YN106,135199106-199708

2 parts on this diagram · 22 diagrams in section
