SHORT BLOCK ASSEMBLY

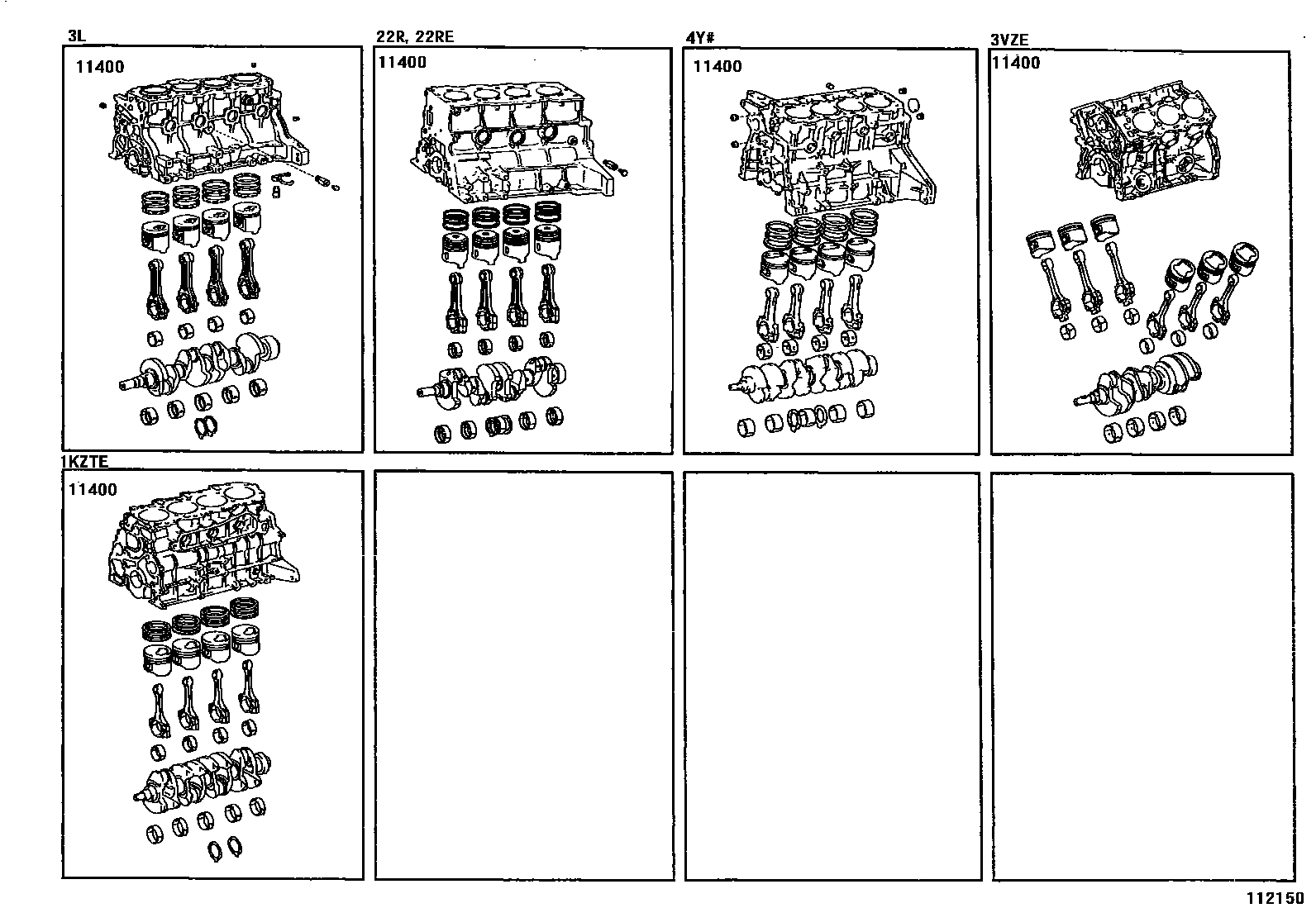

Parts diagram

11400BLOCK ASSY, SHORT

main11400-35043i198808-199008

main11400-35053i199008-199708

main11400-54120i198808-200106

main11400-54160i200401-200412

main11400-65020i199008-199108

main11400-65030i199108-199511

main11400-67051i200108-200412

main11400-73050i198908-199008

main11400-73060i198808-199708

1 parts on this diagram · 1 diagram in section
