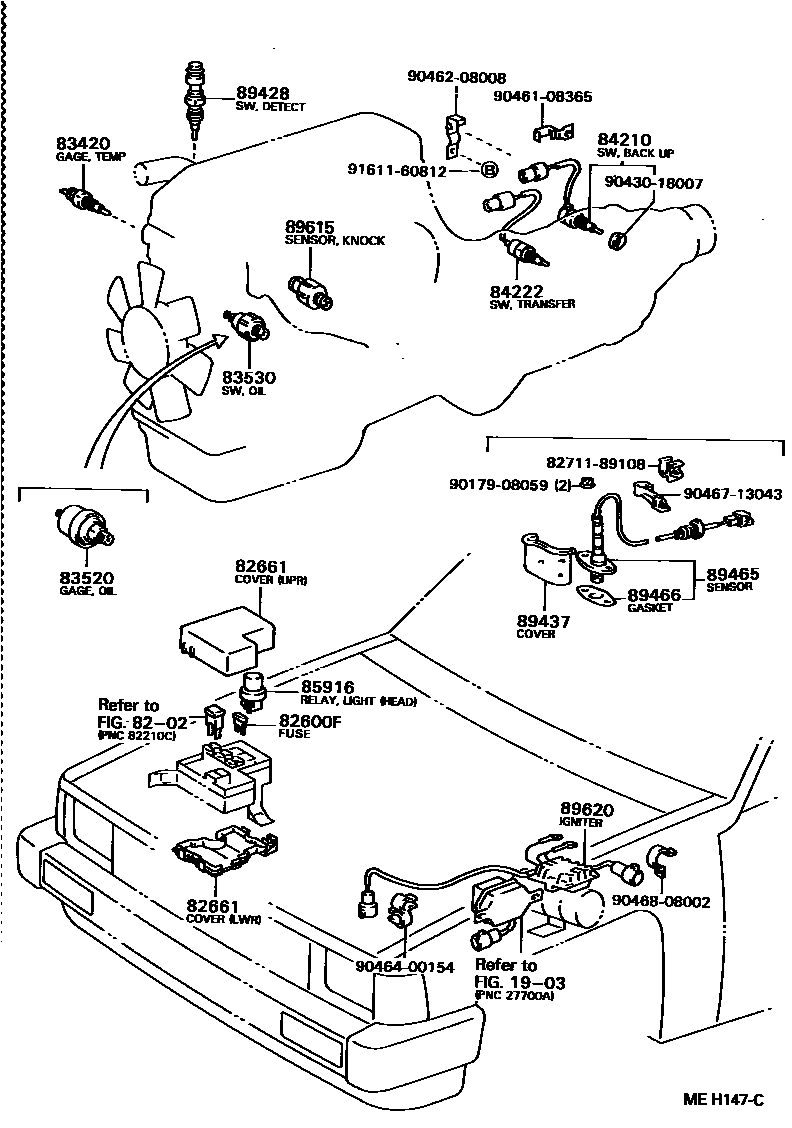

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1903

8202

82600FFUSE, FUSE BLOCK

main90982-09002iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

10A,10A

main90982-09003iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

15A,15A

main90982-09004iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

20A,YELLOW,20A

main90982-09005iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

7.5A,7.5A

82661COVER, RELAY BLOCK, NO.1

main82661-89101iLN5#,6#,RN5#,YN5#,6#198308-198608

COWL SIDE

main82661-89102iLN5#,6#,RN5#,YN5#,6#198308-198608

ENGINE ROOM

main82661-89108iRN61198712-198903

ENGINE ROOM LWR

main82661-89109iRN58..SR5;RN50,55,67,YN5#,6#..CBR198608-199807

ENGINE ROOM,W/ALTER.=40A,55A UPR

main82661-89109iRN58..SR5;RN50,55,67,YN5#,6#..CBR198608-199807

ENGINE ROOM UPR

main82661-89110iRN61,YN63..EFI198608-198903

ENGINE ROOM UPR

main82661-89112iLN56,65..LHD..EUR198608-198912

ENGINE ROOM,W/ALTER.=12V 60A

main82661-89113iLN65,YN56,67..RHD..EUR198608-198808

ENGINE ROOM,ENGLAND SPEC

main82661-89114iRN58..SR5;LN51,56,65,RN50,55,67,YN5#,67198608-199807

COWL SIDE

main82661-89116iRN61198712-198903

COWL SIDE

main82661-89117iLN61,YN63198608-198808

COWL SIDE

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iLN5#,6#,RN5#,61,YN5#,6#198308-199303

main83420-20030iLN5#,6#,RN58,67,YN5#,67199303-199807

sub83420-16040

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14023iRN61198712-198903

DENSO

sub83520-35030

main83520-55011iRN61198712-198903

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iYN5#,6#198308-198502

sub83530-14030

main83530-14030iRN5#,YN5#,6#198502-199303

sub83530-28030

main83530-14070iYN5#,67199303-199807

sub83530-28010

main83530-30060iLN51,56,60,61,65198502-199807

sub83530-60030

main83530-36011iLN5#,6#198308-198502

sub83530-30060

84210SWITCH ASSY, BACK-UP LAMP

main84210-14010iYN57..5F198308-198508

main84210-26020iLN50,55,YN50,55..4F,4H198308-198508

main84210-26030iYN51,56..STD..SA198508-199807

main84210-60021iRN58..SR5;LN51,56,RN50,55,6#..MTM198308-199807

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-35020iLN60,61,65,RN6#,YN6#..MTM198308-199807

85916RELAY, LIGHT CONTROL

main90987-01003iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,67,YN5#,6#198308-199807

TAIL LAMP RELAY

main90987-02006iRN58..SR5;LN51,56,61,65,RN50,55,67,YN5#,6#198608-199807

HEADLAMP RELAY

main90987-04002iLN5#,6#,RN5#,YN5#,6#198308-198608

HEADLAMP RELAY

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-20050iYN63..EFI198608-198903

ECT

main89428-20050iRN5#198601-198808

EMISSION CONTROL

89437COVER, SENSOR

main89437-28020iRN61198712-198903

89465SENSOR, OXYGEN

main89465-19055iYN63..EFI198608-198810

sub89465-19265

main89465-19265iYN63..EFI198810-198903

main89465-39175iRN61198712-198808

sub89465-39325

main89465-39305iRN61198808-198903

89466GASKET, OXYGEN SENSOR

main89466-20020iRN61,YN63..EFI198810-198903

main89466-30010iRN61,YN63..EFI198608-198903

sub89466-20020

89615SENSOR, KNOCK CONTROL

main89615-35040iRN61198712-198903

89620IGNITER ASSY

main89620-35160iRN61198712-198903

MARK=53

main89620-35170iRN61198712-198903

MARK=65

main89620-35180iRN5#198601-198808

main89620-35190iYN63..EFI198608-198903

main89620-35300iRN67;RN58..SR5199407-199807

8271189108WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-89108

9017908059

main90179-08059

9043018007

main90430-18007

9046108365

main90461-08365

9046208008

main90462-08008

9046400154

main90464-00154

9046713043

main90467-13043

9046808002

main90468-08002

9161160812

main91611-60812

25 parts on this diagram · 7 diagrams in section
