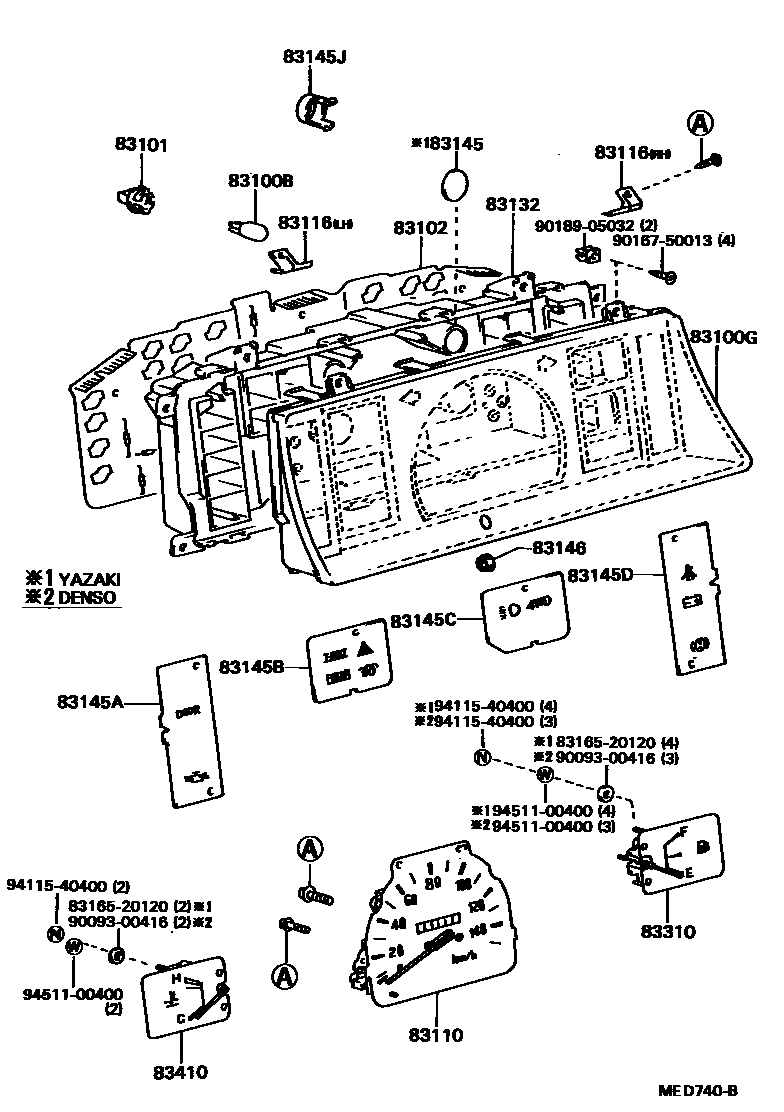

METER

0001 1 0002 1 0003 1 0004 1 0005 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018iYN67..SA198308-199807

12V 1.2W W/O SOCKET,12V 1.4W

main90981-11018iYN57..SR5..(GEN,SA)198508-198912

12V 1.2W W/O SOCKET,12V 1.4W,YAZAKI,W/TACHOMETER

main90981-11018iYN57..SR5..GEN198308-199807

12V 1.2W W/O SOCKET,12V 1.4W,DENSO

main99132-12034iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

12V 3.4W,12V 3.4W

83100GGLASS, COMBINATION METER

main83133-89301iYN50,55,57..(DLX,STD)..SA198308-198608

DENSO

main83133-89301iYN55,57,65..STD..ARL198308-198508

main83133-89311iYN58..4F;YN51,56..(4H,5F)..SA198608-199807

DENSO

main83134-89302iYN50,52,55,57,6#..DLX..ME198308-198408

main83134-89302iYN56,65..RHD..EUR198308-198608

YAZAKI

main83134-89306iLN56..EUR..IV;LN56..TW..EUR;LN56..LHD..GEN;LN56..RHD..STD..(EUR,GEN,SA);LN50,51,55,60,65..(DLX,STD)..(EUR,GEN,SA)198308-198608

main83134-89308iLN5#,6#..ARL,GEN,SA;LN56..LHD..RCB..EUR..CBU198308-198608

W/TACHOMETER

main83134-89310iYN67..RHD..GEN198508-198608

YAZAKI,W/TACHOMETER

main83134-89310iYN57,60,63,65,67..RHD..SR5198308-198608

W/TACHOMETER

main83134-89312iYN56,65..LHD..EUR198308-198608

main83134-89316iYN56,67..LHD..EUR198608-198808

main83134-89318iYN55,56,57,58,6#..(DLX,STD)..ARL198608-198903

main83134-89318iYN50,55,57,67..(DLX,STD)..GEN198608-199807

YAZAKI

main83134-89322iLN51,56,65..(DLX,STD)..(EUR,GEN,SA)198608-199807

main83134-89326iYN52,57,63..5F..ME198608-198903

YAZAKI,W/TACHOMETER

main83134-89328iYN57..RHD..5F..GEN;YN67..RHD..TW..GEN;YN67..RHD..GEN..IV198608-198912

YAZAKI,W/TACHOMETER

main83134-89328iYN56,58,6#..(DLX,STD)..ARL198608-199807

W/TACHOMETER

main83134-89328iRN61198712-198903

main83134-89330iLN51,56,61,65..ARL,GEN,SA198608-199807

W/TACHOMETER

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030iYN58..4F;YN50,51,55,56,57..(4F,4H,5F)..(DLX,STD)..SA198308-199807

12V 3.4W,DENSO

main83101-14040iYN52,57..RCB..5F..ME198508-198912

12V 1.4W,YAZAKI,W/TACHOMETER

main83101-14040iYN50,55,57,6#..ARL,GEN,SA198308-199807

12V 1.4W,DENSO

main83101-14040iYN57..SR5..(GEN,SA)198308-199807

12V 1.4W

main83101-20040iRN5#198608-198903

12V 3.4W,YAZAKI,W/TACHOMETER

main83101-20040iYN57,58,6#..SR5..(ARL,GEN)198308-199807

12V 3.4W

main83101-20040iYN65..4F..GEN;YN50,55,57,60,62,67..(DLX,STD)..GEN198308-199807

12V 3.4W,YAZAKI

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-89300iYN56,65,67..EUR198312-198912

main83247-89300iYN50,52,55,57,67..ME198312-199807

YAZAKI

main83247-89301iYN57,65..STD..ARL198308-198508

main83247-89301iYN57,65..5F..STD..ARL198308-198408

*NSW

main83247-89302iYN5#,6#..EUR,ME198308-198312

YAZAKI

main83247-89303iYN57,65..STD..ARL198308-198408

main83247-89305iYN65..4F..GEN;YN50,55,57,60..(DLX,STD)..GEN198308-198508

DENSO

main83247-89306iLN55,56,65..LHD..EUR198312-198912

main83247-89308iLN50,51,55,56,60,65..(DLX,STD)..(GEN,SA)198308-199807

main83247-89310iLN55,65..LHD..EUR198308-198312

main83247-89311iYN50,55,57,62,67..(DLX,STD)..GEN198508-199807

DENSO

main83247-89313iRN5#,YN52,57,67..ME198408-198808

DENSO

main83247-89314iYN57,65..SR5198308-198312

W/TACHOMETER

main83247-89316iLN50,51,55,56,60,61,65..ARL,GEN,SA198308-199807

W/TACHOMETER

main83247-89318iRN67,YN67..SA;RN58,YN51,58..RCB..5F..SA198312-199807

W/TACHOMETER

main83247-89318iYN67..RHD..GEN198508-198912

YAZAKI,W/TACHOMETER

main83247-89326iYN52,57..RCB..5F..ME198508-198608

YAZAKI,W/TACHOMETER

main83247-89326iYN60..SR5..ME198403-198408

W/TACHOMETER

main83247-89328iYN60,63..SR5..ME198408-198608

main83247-89328iYN52,57..RCB..5F..ME198508-198608

*47,YAZAKI,W/TACHOMETER

main83247-89340iRN61198712-198903

main83247-89358iYN52,57,63..5F..ME198608-198903

YAZAKI,W/TACHOMETER

main83247-89360iYN63..EFI198608-198903

W/TACHOMETER

83110SPEEDOMETER ASSY

main83110-89197iYN50,52,55,57,6#..DLX..ME198308-198408

KM,W/O FR SEAT BELT

main83110-89197iYN65..4F..GEN;YN50,55,57,60,62,67..(DLX,STD)..GEN198308-198608

KM,YAZAKI

main83110-89198iYN65..4F..GEN;YN50,55,57,60,62,67..(DLX,STD)..GEN198308-198608

KM,DENSO

main83110-89199iYN65..4F..GEN;YN50,55,57,60,62,67..(DLX,STD)..GEN198308-198608

MILE & KM,DENSO

main83110-89200iLN56..EUR..IV;LN56..TW..EUR;LN55,65..LHD..EUR198308-198608

KM

main83110-89201iLN5#,60,65..(DLX,STD)..GEN198308-198608

MILE & KM

main83110-89202iYN50,52,55,57,6#..ME198308-198401

KM,W/SEAT BELT

main83110-89203iYN56,65..LHD..EUR198308-198608

KM

main83110-89204iYN57,65..STD..ARL198308-198508

KM

main83110-89204iYN57,65..5F..STD..ARL198308-198408

KM,*NSW

main83110-89205iYN56,65..RHD..EUR198308-198608

MILE & KM

main83110-89212iYN67..SA;YN65..5F..(GEN,SA)198401-198608

KM

main83110-89212iYN67..RHD..GEN198508-198608

KM,YAZAKI,W/TACHOMETER

main83110-89212iYN57..SR5..(GEN,SA)198308-198608

KM,W/TACHOMETER

main83110-89212iYN60..SR5..ME198403-198408

KM,*SOOS OR *GUS

main83110-89213iYN57..SR5..GEN198308-198608

MILE & KM,W/TACHOMETER

main83110-89214iLN5#,60,65..GEN,SA198308-198608

KM,W/TACHOMETER

main83110-89215iLN5#,65..(DLX,STD)..GEN198308-198608

MILE & KM,W/TACHOMETER

main83110-89216iYN57,6#..SR5..ARL198308-198408

KM,*NSW,W/TACHOMETER

main83110-89216iYN57,60,63,65,67..SR5..ARL198408-198608

KM

main83110-89222iYN57,65..STD..ARL198308-198408

KM

main83110-89224iYN57,6#..SR5..ARL198308-198408

KM,W/TACHOMETER

main83110-89225iLN55,56,6#..ARL;LN56..LHD..RCB..EUR..CBU198308-198608

KM,W/TACHOMETER

main83110-89228iLN60,61..SR5198403-198608

W/CRUISE CONTROL

main83110-89229iYN60..SR5..ME198403-198408

KM

main83110-89230iYN50,52,55,57,6#..DLX..ME198401-198408

KM,W/SEAT BELT

main83110-89238iYN50,52,55,57,6#..DLX..ME198408-198608

KM,YAZAKI

main83110-89240iYN52,57..RCB..5F..ME198508-198608

KM,*47,YAZAKI,W/TACHOMETER

main83110-89240iYN60,63..SR5..ME198408-198608

KM

main83110-89244iRN5#,YN52,57,60..DLX..ME198408-198608

KM,DENSO

main83110-89245iYN65..4F..GEN;YN50,55,57,60,62,67..(DLX,STD)..GEN198408-198608

MILE & KM,YAZAKI

main83110-89250iYN55,57,63,67..(DLX,STD)..ARL198508-198608

KM

main83110-89254iYN52,57..RCB..5F..ME198508-198608

KM,YAZAKI,W/TACHOMETER

main83110-89257iRN5#198601-198608

KM,YAZAKI,W/TACHOMETER

main83110-89259iYN50,55,57,67..(DLX,STD)..GEN198608-199807

KM,DENSO

main83110-89260iYN50,55,57,67..(DLX,STD)..GEN198608-199807

KM,YAZAKI

main83110-89261iYN50,55,57,67..(DLX,STD)..GEN198608-199201

MILE & KM,DENSO

main83110-89262iYN50,55,57,67..(DLX,STD)..GEN198608-199201

MILE & KM,YAZAKI

main83110-89263iRN5#,YN52,57,67..ME198608-198808

KM,DENSO

main83110-89264iYN55,57,6#..(DLX,STD)..ARL198608-198912

KM

main83110-89265iYN56,67..LHD..EUR198608-198808

KM

main83110-89266iYN56,67..RHD..EUR198608-198808

MILE & KM

main83110-89270iLN51,56,65..(DLX,STD)..(GEN,SA)198608-199807

KM

main83110-89271iLN5#,65..(DLX,STD)..GEN198608-199201

MILE & KM

main83110-89274iYN57..SR5..GEN198608-199807

KM,W/TACHOMETER

main83110-89274iYN57..RHD..5F..GEN;YN67..RHD..TW..GEN;YN67..RHD..GEN..IV198608-199201

KM,YAZAKI,W/TACHOMETER

main83110-89275iYN57..SR5..GEN198608-198808

MILE & KM,W/TACHOMETER

main83110-89276iYN57,58,6#..SR5..ARL198608-198903

KM

main83110-89276iYN56,58,6#..(DLX,STD)..ARL198708-198903

KM,W/TACHOMETER

main83110-89279iRN5#198608-198903

KM,YAZAKI,W/TACHOMETER

main83110-89281iLN5#,65,67..GEN,SA198608-199807

KM,W/TACHOMETER

main83110-89282iLN5#,65..(DLX,STD)..GEN198608-199201

MILE & KM,W/TACHOMETER

main83110-89283iLN56,6#..ARL198608-198808

KM,W/TACHOMETER

main83110-89284iLN6#..SR5198608-198808

W/CRUISE CONTROL

main83110-89286iRN61198712-198903

KM

83116BRACKET, SPEEDOMETER

main83116-89300iLN5#,6#198308-198608

RH

main83116-89300iYN5#,6#..EUR,ME198308-198608

RH,YAZAKI

main83116-89301iYN65..4F..GEN;YN65..STD..ARL;YN50,55,57,60..(DLX,STD)..(ARL,GEN)198308-198608

RH,DENSO

main83116-89302iYN65..4F..GEN;YN50,55,57,60,62,67..(DLX,STD)..GEN198308-198608

LH

main83116-89302iYN65..4F..GEN;YN50,55,57,60,62,67..(DLX,STD)..GEN198308-198608

LH,YAZAKI

main83116-89303iRN5#,YN52,57,60..DLX..ME198308-198608

LH,DENSO

main83116-89304iRN67,YN67..SA;RN58,YN51,58..RCB..5F..SA198608-199807

RH

main83116-89304iYN55,56,57,58,6#..(DLX,STD)..ARL198608-198903

RH,YAZAKI,W/TACHOMETER

main83116-89304iYN56,58,6#..(DLX,STD)..ARL198708-198903

RH,W/TACHOMETER

main83116-89304iYN57,58,6#..SR5..(ARL,GEN)198608-199807

RH,YAZAKI

main83116-89306iRN67,YN67..SA;RN58,YN51,58..RCB..5F..SA198608-199807

LH

main83116-89306iYN52,57,63..5F..ME198608-198903

LH,YAZAKI,W/TACHOMETER

main83116-89306iYN57,58,6#..SR5..(ARL,GEN)198608-199807

LH,YAZAKI

main83116-89306iYN56,58,6#..(DLX,STD)..ARL198708-198903

LH,W/TACHOMETER

main83116-89309iYN50,55,57,67..(DLX,STD)..GEN198608-199807

RH,DENSO

main83116-89311iYN50,55,57,67..(DLX,STD)..GEN198608-199807

LH,DENSO

83132CASE, COMBINATION METER

main83132-89300iYN55,56,57,58,63,67..(DLX,STD)..ARL198308-199807

main83132-89300iYN50,52,55,57,67..ME198308-199807

YAZAKI

main83132-89301iRN5#,YN52,57,60..DLX..ME198308-199807

DENSO

main83132-89301iYN55,57,65..STD..ARL198308-198508

main83132-89302iYN56,58,6#..(DLX,STD)..ARL198308-199807

W/TACHOMETER

main83132-89302iYN57..RHD..5F..GEN;YN67..RHD..TW..GEN;YN67..RHD..GEN..IV198508-199201

YAZAKI,W/TACHOMETER

main83132-89302iYN67..RHD..GEN198508-198808

YAZAKIW/TACHOMETER

83145LENS, METER, NO.1

main83145-89320iYN5#,6#..(DLX,STD)..(EUR,ME)198308-199807

YAZAKI

83145ALENS, METER, NO.2

main83145-89300iYN5#,6#..(DLX,STD)..(EUR,ME)198308-198608

YAZAKI

main83145-89300iYN56,65..EUR198408-198608

main83145-89301iYN65..4F..GEN;YN50,55,57,60,62,67..(DLX,STD)..GEN198308-199201

DENSO

main83145-89303iYN55,57,65..STD..ARL198308-198508

main83145-89304iYN55,57,63,67..(DLX,STD)..ARL198508-198608

main83145-89319iRN5#,YN52,57,67..ME198608-198808

DENSO

main83145-89336iYN58..4F;YN51,56..(4H,5F)..SA198608-199807

YAZAKI

main83145-89336iYN56,67..EUR198608-198808

main83145-89340iYN55,56,57,58,6#..(DLX,STD)..ARL198608-198903

83145BLENS, METER, NO.3

main83145-89314iYN56,65..LHD..EUR198308-198608

main83145-89338iYN56,67..LHD..EUR198608-199807

83145CLENS, METER, NO.4

main83145-89308iYN5#,6#..(DLX,STD)..(EUR,ME)198308-198608

YAZAKI

main83145-89308iYN56,65..EUR198408-198608

main83145-89309iYN50,55,57,62,67..(DLX,STD)..GEN198308-198608

DENSO

main83145-89315iYN58..4F;YN51,56..(4H,5F)..SA198608-199807

DENSO

main83145-89344iLN51,56,65..(DLX,STD)..(EUR,GEN,SA)198608-199807

YAZAKI

main83145-89344iYN56,67..EUR198608-198903

83145DLENS, METER, NO.5

main83145-89302iLN50,51,55,56,60,65..(DLX,STD)..(EUR,GEN,SA)198308-199807

main83145-89302iYN58..4F;YN50,51,55,56,57..(4F,4H,5F)..(DLX,STD)..SA198308-199807

YAZAKI

main83145-89305iYN65..4F..GEN;YN50,55,57,60,62,67..(DLX,STD)..GEN198308-199807

DENSO

main83145-89307iYN55,57,65..STD..ARL198308-198508

main83145-89311iRN5#,YN52,57,60..DLX..ME198408-198608

DENSO

main83145-89316iYN55,57,63,67..(DLX,STD)..ARL198508-198608

main83145-89317iRN5#,YN52,57,67..ME198608-198808

DENSO

main83145-89334iYN55,56,57,58,6#..(DLX,STD)..ARL198608-198903

83145JADAPTER, METER BULB SOCKET

main83145-20100iYN65..4F..GEN;YN50,55,57,60..(DLX,STD)..GEN198308-199807

YAZAKI

83146GROMMET, METER GLASS

main83145-89318iLN50,51,55,56,60,61,65198308-199807

83310GAGE ASSY, FUEL RECEIVER

main83243-89300iLN5#,60,65..(DLX,STD)..(GEN,SA)198308-198608

YAZAKI

main83243-89300iYN50,52,55,57,6#..DLX..ME198308-198408

main83243-89301iYN50,55,57..(DLX,STD)..SA198308-198608

DENSO

main83243-89302iYN55,57,63,67..(DLX,STD)..ARL198508-198608

main83243-89303iYN55,57,65..STD..ARL198308-198508

main83243-89304iYN52,57..RCB..5F..ME198508-198608

YAZAKI,W/TACHOMETER

main83243-89304iYN60,63..SR5..ME198308-198608

W/TACHOMETER

main83243-89305iYN58..4F;YN51,56..(4H,5F)..SA198608-199807

DENSO

main83243-89306iLN55,56,6#..ARL;LN56..LHD..RCB..EUR..CBU198308-198608

W/TACHOMETER

main83243-89307iRN5#,YN52,57,67..ME198611-199807

DENSO,CKD SPEC

main83243-89316iLN51,56,65..(DLX,STD)..(GEN,SA)198608-199807

main83243-89316iYN50,55,57,67..(DLX,STD)..GEN198608-199201

YAZAKI

main83243-89320iYN57..SR5..GEN198608-199201

YAZAKI,W/TACHOMETER

main83243-89320iLN5#,65..GEN,SA198608-199807

W/TACHOMETER

main83243-89322iYN56,58,6#..(DLX,STD)..ARL198608-198903

W/TACHOMETER

main83243-89324iYN63..EFI198608-198903

W/TACHOMETER

main83243-89402iRN61198712-198903

YAZAKI,W/TACHOMETER

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-89300iYN50,52,55,57,6#..DLX..ME198408-198608

YAZAKI

main83244-89300iLN5#,65..LHD..GEN198308-198508

*ME

main83244-89300iLN5#,65..LHD..GEN198308-198508

*ME,SPEEDOMETER:KM

main83244-89300iYN50,52,55,57,6#..DLX..ME198308-198408

main83244-89301iYN65..4F..GEN;YN50,55,57,60..(DLX,STD)..GEN198308-198508

DENSO

main83244-89302iLN56..EUR..IV;LN56..RHD..EUR;LN55,65,YN56,65..EUR198308-198508

YAZAKI

main83244-89303iYN55,57,65..STD..ARL198308-198508

main83244-89305iYN50,55,57,6#..LHD..GEN198308-198508

*ME,SPEEDOMETER;MILE & KM

main83244-89305iYN52,57,60..DLX..ME198408-198508

DENSO

main83244-89306iYN67..SA;YN65..5F..(GEN,SA)198308-198608

W/TACHOMETER

main83244-89306iYN67..RHD..GEN198508-198608

YAZAKI,W/TACHOMETER

main83244-89307iYN50,55,57,62,67..(DLX,STD)..GEN198508-198608

DENSO

main83244-89308iYN60..SR5..ME198403-198508

W/TACHOMETER

main83244-89308iLN5#,65..LHD..GEN198308-198508

*ME,W/TACHOMETER

main83244-89309iRN5#,YN52,57,60..ME198508-198608

DENSO

main83244-89309iYN50,55,57,62,67..LHD..(T1,TW)..GEN198508-198608

*ME,SPEEDOMETER;MILE & KM

main83244-89310iLN55,56,6#..ARL;LN56..LHD..RCB..EUR..CBU198308-198608

W/TACHOMETER

main83244-89311iYN58..4F;YN51,56..(4H,5F)..SA198608-199807

DENSO

main83244-89313iRN5#,YN52,57,67..ME198608-198808

DENSO

main83244-89313iYN50,55,57,67..LHD..(T1,TW)..GEN198608-199201

*ME,SPEEDOMETER;MILE & KM

main83244-89315iYN50,55,57,67..(DLX,STD)..GEN198611-199807

DENSO,CKD SPEC

main83244-89324iYN55,57,63,67..(DLX,STD)..ARL198508-198608

main83244-89326iYN50,55,57,67..LHD..(T1,TW)..GEN198608-199201

*ME,SPEEDOMETER:KM

main83244-89326iLN5#,65..LHD..GEN198608-199201

*ME

main83244-89328iLN51,56,65..(DLX,STD)..(GEN,SA)198608-199807

YAZAKI

main83244-89328iLN56,65,YN56,67..EUR198608-198912

main83244-89330iYN57..RHD..5F..GEN;YN67..RHD..TW..GEN;YN67..RHD..GEN..IV198608-199201

YAZAKI,W/TACHOMETER

main83244-89330iLN5#,65,67..GEN,SA198608-199807

W/TACHOMETER

main83244-89332iRN5#198608-198903

YAZAKI,W/TACHOMETER

main83244-89332iLN5#,65..LHD..GEN198608-199201

*ME,W/TACHOMETER

main83244-89334iYN57,58,6#..SR5..ARL198608-199807

W/TACHOMETER

main83244-89400iLN5#,65..(DLX,STD)..(GEN,SA)198508-198608

YAZAKI

main83244-89402iLN5#,65..LHD..GEN198508-198608

*ME,SPEEDOMETER:KM

main83244-89402iYN50,55,57,62,67..LHD..(T1,TW)..GEN198508-198608

*ME

main83244-89404iYN52,57..RCB..5F..ME198508-198608

YAZAKI,W/TACHOMETER

main83244-89404iYN52,57..RCB..5F..ME198508-198608

*ME,W/TACHOMETER

main83244-89404iYN52,57..RCB..5F..ME198508-198608

W/TACHOMETER

main83244-89406iRN61198712-198903

8316520120MIRROR, COMBINATION METER, NO.2

main83165-20120

9009300416

main90093-00416

9016750013

main90167-50013

9018905032

main90189-05032

9411540400

main94115-40400

9451100400

main94511-00400

22 parts on this diagram · 5 diagrams in section
