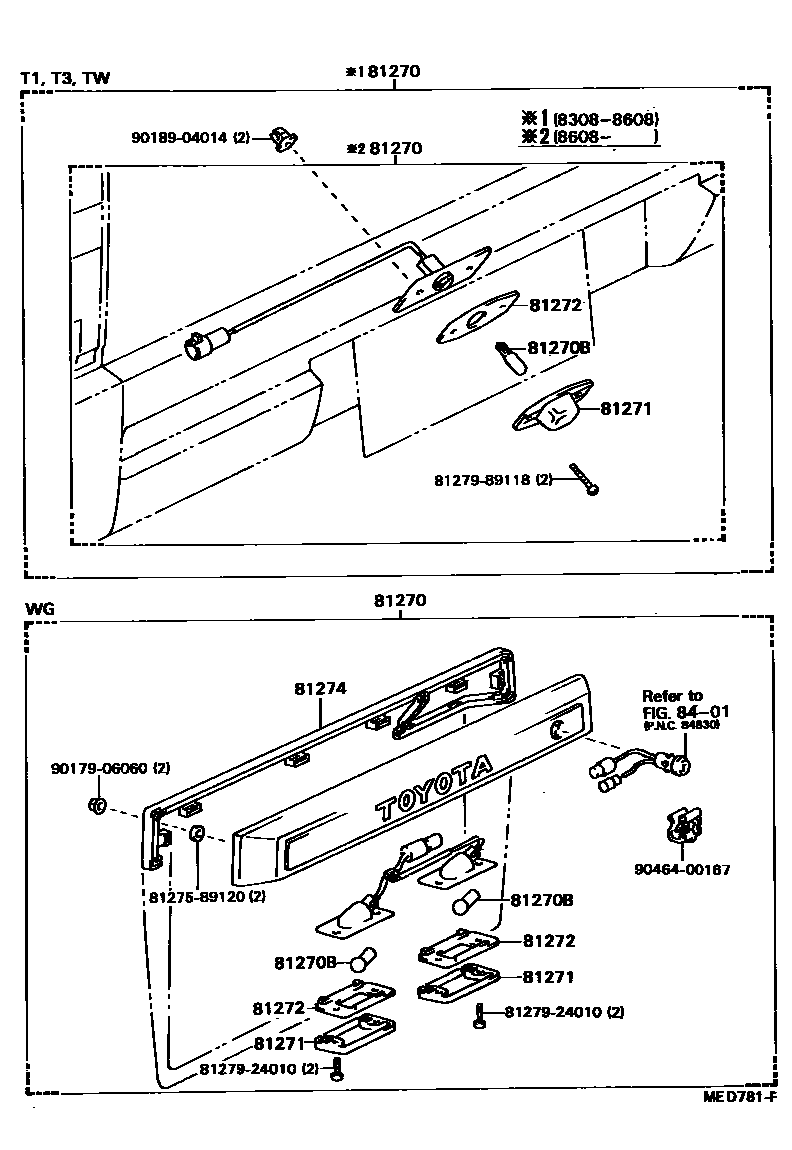

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-39445×2iLN5#,60,65,RN5#,YN5#,60,62,65,67..T1,TW198308-198608

main81270-39465×2iLN55,56,YN55..T3198308-198608

main81270-39475iLN60,61,RN61,YN60,63..WG198403-198903

main81270-89122×2iRN5#,YN52,57..ME; YN67..ME198608-198808

W/O RR BUMPER

main81270-89124×2iLN56,YN55..T3198608-198912

main81270-89125×2iRN5#,YN52,57..ME198608-198808

W/RR BUMPER

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12012×2iLN60,61,RN61,YN60,63..WG198403-198903

12V 7.5W,12V 7.5W

main99132-12050×2iLN5#,60,65,67,RN5#,67,YN5#,60,62,65,67..T1,T3,TW198308-199807

12V 5W,12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-13100×2iLN60,61,RN61,YN60,63..WG198403-198903

main81271-89110×2iLN5#,60,65,67,RN5#,67,YN5#,60,62,65,67..T1,T3,TW198308-199807

81272GASKET, LICENSE PLATE LAMP LENS

main81272-13100×2iLN60,61,RN61,YN60,63..WG198403-198903

main81272-89110×2iLN5#,60,65,67,RN5#,67,YN5#,60,62,65,67..T1,T3,TW198308-199807

81274GASKET, LICENSE PLATE LAMP BODY

main81274-89120iLN60,61,RN61,YN60,63..WG198403-198903

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8127589120SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-89120

8127924010WASHER, SIDE TURN SIGNAL LAMP

main81279-24010

8127989118WASHER, SIDE TURN SIGNAL LAMP

main81279-89118

9017906060

main90179-06060

9018904014

main90189-04014

9046400167

main90464-00167

12 parts on this diagram · 1 diagram in section
