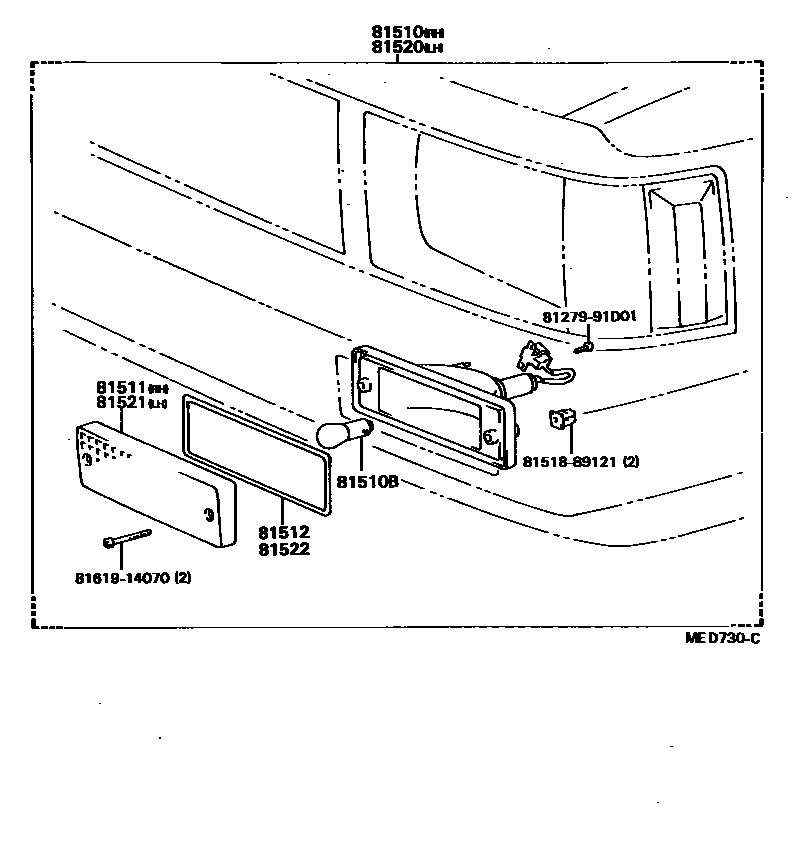

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-89125iLN5#,YN50,52,55,57..ARL,GEN,ME,SA198308-198405

main81510-89126iLN55,YN56..EUR198308-198405

main81510-89128iYN65..4F;YN65..ARL,SA;LN5#,6#,YN50,52,55,57,60..ARL,GEN,ME,SA198405-198408

main81510-89129iLN65,YN65..EUR198308-198405

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2iLN5#,65,67,RN58,67,YN50,51,55,56,57,58,65,67..SA198408-199807

12V 21W,12V 21W

main99132-11230×2iLN5#,6#,YN50,52,55,57,6#..ARL,GEN,ME,SA198308-198408

12V 23W,12V 23W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-12280iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-14140iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-89125iLN5#,YN50,52,55,57..ARL,GEN,ME,SA198308-198405

main81520-89126iLN55,YN56..EUR198308-198405

main81520-89128iYN65..4F;YN65..ARL,SA;LN5#,6#,YN50,52,55,57,60..ARL,GEN,ME,SA198405-198408

main81520-89129iYN65..5F..(EUR,GEN);LN55,56,65,RN61,YN56,67..EUR198405-198912

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-12260iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-14140iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

8127991D01WASHER, SIDE TURN SIGNAL LAMP

main81279-91D01

8151889121SHADE, FRONT TURN SIGNAL LAMP, RH

main81518-89121

8161914070

main81619-14070

10 parts on this diagram · 1 diagram in section
