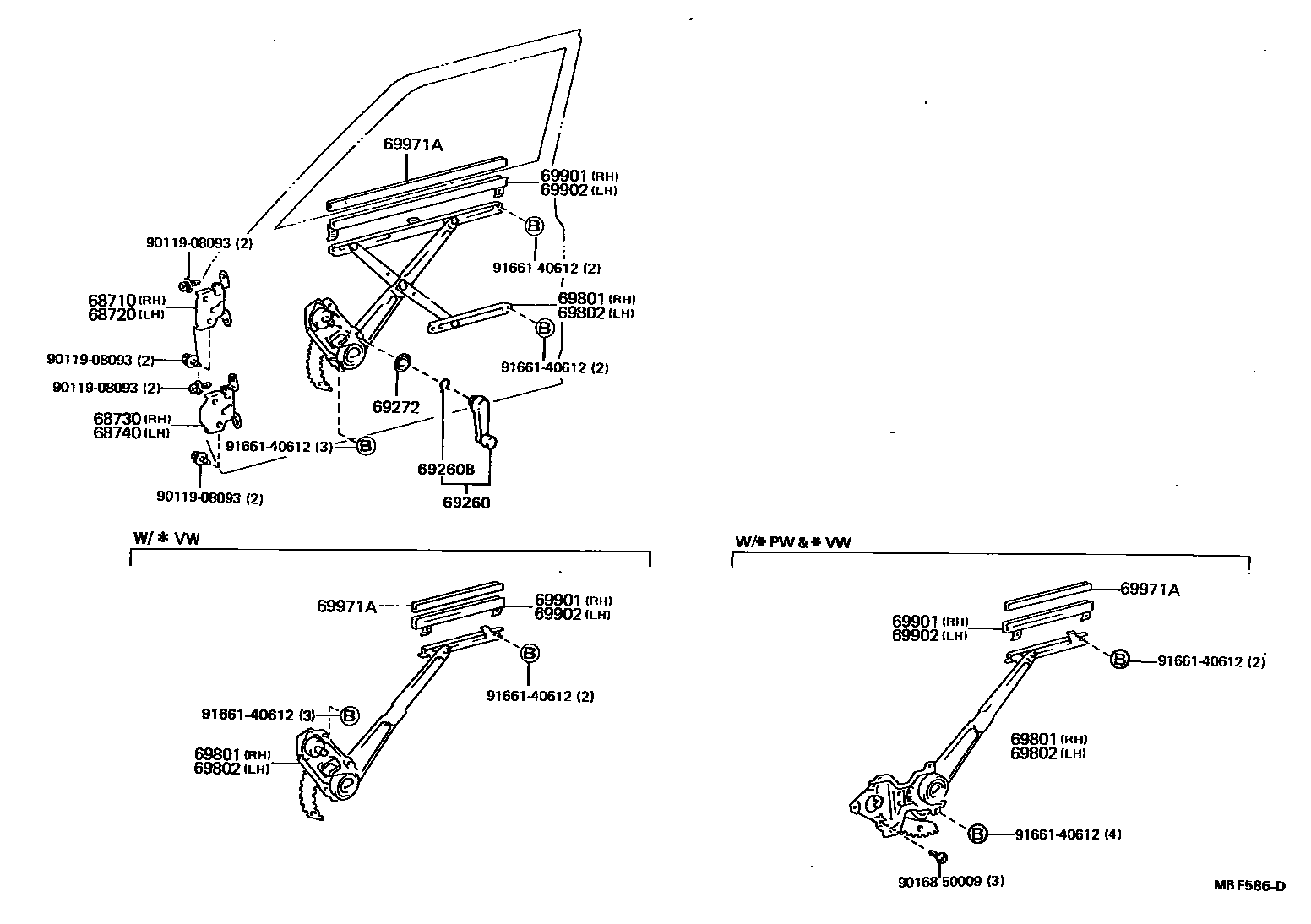

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-14030iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-14030iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-14030iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-14030iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-13×2iLN5#,6#,YN50,55,56,57,62,63,65,67..ARL,EUR,GEN,SA; YN50,55,60,63,67..ME198508-198608

GRAY,GRAY,TRIM1#

main69260-10040-14×2iLN5#,6#,YN50,55,56,57,62,63,65,67..ARL,EUR,GEN,SA; YN50,55,60,63,67..ME198508-198608

BLUE,BLUE,TRIM8#

main69260-10040-56×2iLN5#,6#,YN5#,6#198308-198508

BROWN,BROWN,TRIM4#

main69260-22020-23×2iRN5#,YN52,57..ME198508-198608

GRAY,GRAY,TRIM1#

main69260-22020-24×2iRN5#,YN52,57..ME198508-198608

BLUE,BLUE,TRIM8#

main69260-22020-33×2iRN5#,YN52,57..ME198608-198708

GRAY,GRAY,TRIM1#

main69260-22020-34×2iRN50,55,YN52,57..DLX..ME198708-199807

BLUE,BLUE,TRIM8#

main69260-22020-36×2iRN5#,YN52,57..ME198508-198608

BROWN,BROWN,TRIM4#

main69260-22020-45×2iRN5#,YN52,57..ME198608-198708

BEIGE,BEIGE,TRIM4#

main69260-89104-03×2iLN6#,YN57,6#..(DLX,SR5)..ARL198608-198903

GRAY,GRAY,TRIM1#

main69260-89104-04×2iLN5#,65,67,RN58,YN50,51,55,56,57,58,67..ARL,EUR,GEN,SA; YN67..ME198608-199807

BLUE,BLUE,TRIM8#

main69260-89104-05×2iLN5#,6#,RN58,YN50,51,55,56,57,58,6#..ARL,EUR,GEN,SA; YN6#..ME198608-199807

BEIGE,BEIGE,TRIM4#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69266-22010×2iLN5#,6#,YN5#,6#198308-198508

main69266-22010-08×2iLN5#,6#,YN50,55,56,57,62,63,65,67..ARL,EUR,GEN,SA; YN50,55,60,63,67..ME198508-198608

NATURAL,NATURAL WHITE

main69268-16010×2iLN5#,6#,RN58,YN50,51,55,56,57,58,6#..ARL,EUR,GEN,SA; YN6#..ME198608-199807

main69272-30010-08×2iRN50,55,YN52,57..DLX..ME198508-199807

NATURAL,NATURAL WHITE

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-89107iYN50,55..ME198408-198601

W/O *VW

main69801-89108iRN50,55,YN52,57,6#..ME198608-199807

main69801-89109iRN61198712-198903

main69801-89110iYN60,63..SR5..ME198403-199807

W/*PW

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-89107iRN50,55,YN52,57..4F..ME198610-199807

W/O *VW

main69802-89108iRN5#,YN50,55..ME; YN52,57,60,63,65,67..ME198408-198608

W/*VW

main69802-89109iRN61198712-198903

main69802-89110iYN60,63..SR5..ME198403-199807

W/*PW

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-89108iRN61198712-198903

main69901-89109iRN5#,YN50,55..ME; YN52,57,60,63,65,67..ME198408-198608

W/*VW

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-89108iRN50,55,YN52,57..4F..ME198610-199807

W/O *VW

main69901-89109iRN5#,YN50,55..ME; YN52,57,60,63,65,67..ME198408-198608

W/*VW

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-89103×2iRN50,55,YN52,57..4F..ME198610-199807

W/O *VW

main69971-89104×2iRN5#,YN50,55..ME; YN52,57,60,63,65,67..ME198408-198608

W/*VW

9011908093

main90119-08093

9016850009

main90168-50009

9166140612

main91661-40612

15 parts on this diagram · 1 diagram in section
