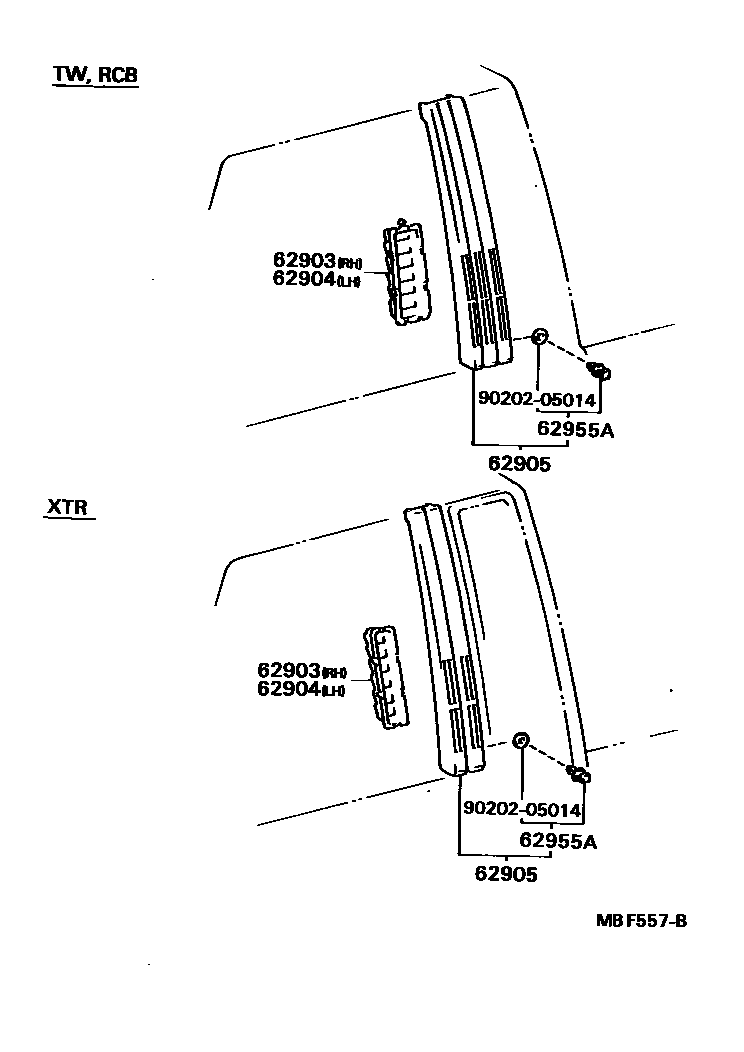

REAR VENTILATOR & ROOF VENTILATOR

0001 1 0002 1

62903DUCT SUB-ASSY, QUARTER VENTILATOR, RH

main62903-89101iLN50,51,55,56,60,65,RN5#,67,YN5#,60,62,65,67..RCB; LN55,56,60,61,65,RN55,6#..TW,WG198308-199807

main62903-89102iLN55,56,65,YN56,57,65,67..XTR198309-199807

62904DUCT SUB-ASSY, QUARTER VENTILATOR, LH

main62903-89101iLN50,51,55,56,60,65,RN5#,67,YN5#,60,62,65,67..RCB; LN55,56,60,61,65,RN55,6#..TW,WG198308-199807

main62903-89102iLN55,56,65,YN56,57,65,67..XTR198309-199807

62905LOUVER, QUARTER VENTILATION

main62905-89101iLN5#,65,67,RN58,67,YN50,51,55,56,58,60,62,65,67..RCB; LN56,65,RN67,YN55,58,65,67..TW; YN57..TW..(ARL,GEN)198508-199807

RH

main62905-89102iLN55,56,65,YN56,57,58,65,67..XTR198309-199807

RH

main62905-89104iLN60,61,RN61,YN60,63..WG198403-198903

RH

main62905-89105iRN50,55,YN52,57..DLX..ME198508-199807

RH,CHROMEPLATED

main62906-89101iRN50,55,YN52,57..STD..ME198708-199807

LH

main62906-89102iLN55,56,65,YN56,57,58,65,67..XTR198309-199807

LH

main62906-89104iLN60,61,RN61,YN60,63..WG198403-198903

LH

main62906-89105iRN50,55,YN52,57..DLX..ME198508-199807

LH,CHROMEPLATED

62955ARETAINER, QUARTER VENT LOUVER

main62955-89101×6iLN56,65,YN56,57,58,65,67..XTR198408-199807

main62955-91C01×2iLN60,61,RN61,YN60,63..WG198408-198903

LWR

9020205014

main90202-05014

5 parts on this diagram · 2 diagrams in section
