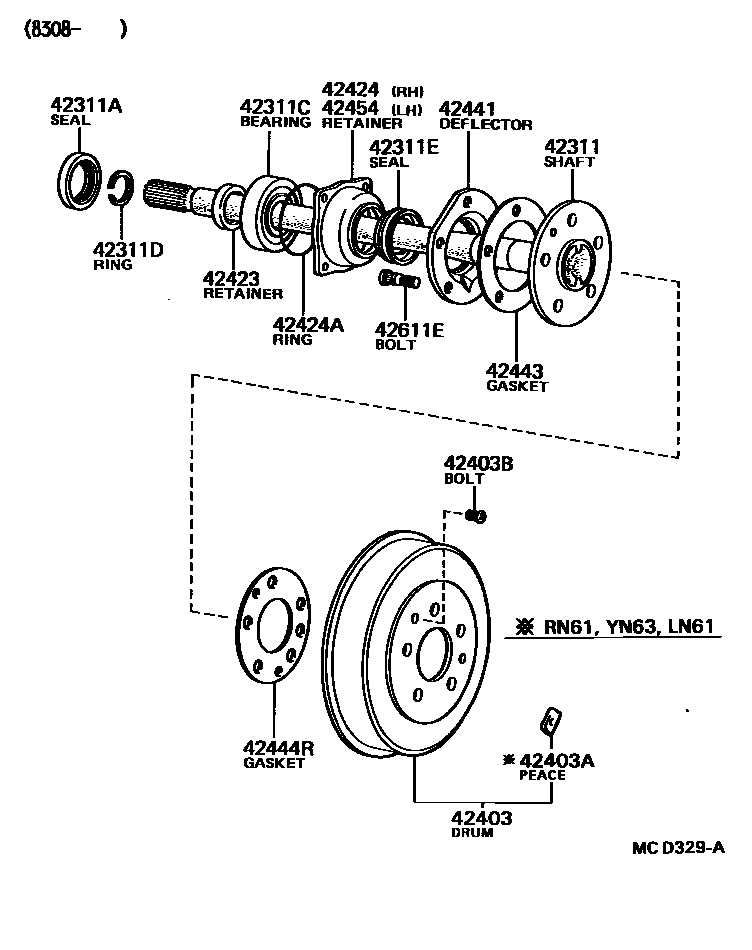

REAR AXLE SHAFT & HUB

42311SHAFT, REAR AXLE

main42311-35100×2iLN6#,YN6#198308-198508

main42311-35110×2iLN5#,RN5#,YN5#198308-198808

main42311-35111×2iYN51,58;LN51,56,RN58,YN50,55,56,57..SR5,STD198808-199807

main42311-35140×2iLN65,67,RN67,YN60,62,65,67198508-199807

main42311-35150×2iLN61,RN61,YN63198508-198903

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90310-50001×2iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

42311CBEARING(FOR REAR AXLE SHAFT)

main90363-40020×2iLN6#,YN6#198308-198508

main97144-06308×2iLN5#,RN5#,YN5#198308-198603

NACHI

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90520-36045×2iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90313-48001×2iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

42403DRUM SUB-ASSY, REAR BRAKE

main42431-25070×2iLN65,67,RN67,YN67198808-199807

main42431-35030×2iYN57..DLX,STD;LN5#,YN50,52,55,56;YN57..SR5..(GEN,SA)198308-198508

main42431-35060×2iLN6#,YN6#198308-198508

main42431-35080×2iYN57..SR5..ARL198308-198508

main42431-35090×2iLN65,YN60,62,65,67198508-198808

main42431-35110×2iLN61,RN61,YN63198508-198808

main42431-35120×2iYN57,58..SR5..ARL198508-198808

main42431-35130×2iYN58..TW;YN58..RCB;YN57..DLX,STD;YN57..SR5..(GEN,SA);LN5#,RN5#,YN50,51,52,55,56198508-198811

main42431-35180×2iLN61,RN61,YN63198808-199407

main42431-35190×2iYN51,58;LN51,56,RN58,YN50,55,56,57..SR5,STD198811-199807

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117×2iLN61,RN61,YN63198511-198903

10G,10G

main90937-01118×2iLN61,RN61,YN63198511-198903

20G,20G

main90937-01119×2iLN61,RN61,YN63198511-198903

30G,30G

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10035×2iLN5#,RN5#,YN5#198308-198811

42423RETAINER, REAR AXLE BEARING, INNER

main42423-20010×2iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42421-35030iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

42424ARING, O (FOR BEARING RETAINER SET)

main90301-88077×2iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

42441DEFLECTOR, BRAKE DRUM OIL

main42441-26010×2iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

main42441-35020×2iLN60,61,65,RN6#,YN6#198308-199807

42443GASKET, BRAKE DRUM OIL DEFLECTOR

main42443-30010×2iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

main42443-55020×2iLN60,61,65,RN6#,YN6#198308-199807

42444RGASKET, BRAKE DRUM (FOR REAR AXLE)

main42444-35020×2iLN5#,YN5#198308-198508

main42444-35040×2iLN6#,YN6#198308-198508

main42444-35050×2iLN61,65,RN6#,YN6#198508-199807

main42444-35060×2iLN5#,RN5#,YN5#198508-198811

main42444-35070×2iYN51,58;LN51,56,RN58,YN50,55,56,57..SR5,STD198811-199807

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42421-35030iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02034×12iLN6#,YN6#198308-198411

main90942-02037×10iLN5#,RN5#,YN5#198308-198808

main90942-02049×10iLN5#,RN58,YN5#198808-199807

main90942-02052×12iLN60,61,65,RN6#,YN6#198411-199807

16 parts on this diagram · 1 diagram in section
