OIL COOLER & TUBE (ATM)

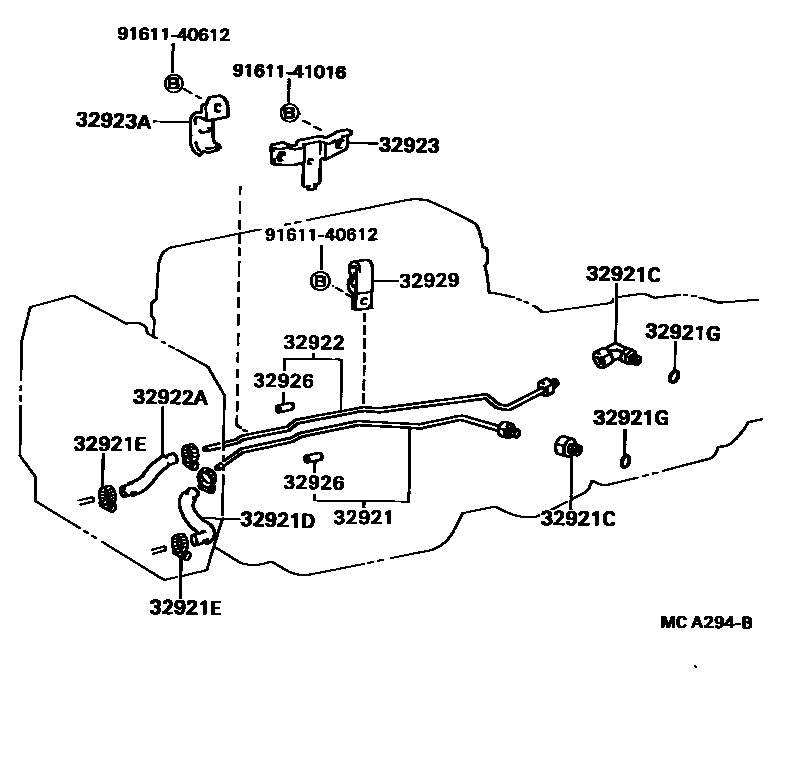

Parts diagram

32921TUBE, OIL COOLER INLET, NO.1

main32921-35060i198308-198808

main32921-35070i198308-198808

main32921-35110i198608-198903

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007i198308-198808

FR

main90407-14003i198308-198808

RR

main90407-16008i198608-198903

OUTLET

main90407-16012i198608-198903

INLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-14076i198308-198808

main90445-14078i198308-198808

main90445-15012i198808-198903

main90445-16027i198608-198808

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085×2i198308-198808

main90460-18002×2i198608-198808

main90467-13039×2i198808-198903

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2i198308-198808

main90301-11006×2i198608-198903

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-35070i198308-198808

main32922-35080i198308-198808

main32922-35130i198608-198903

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-14052i198308-198808

main90445-14101i198308-198808

main90445-15021i198808-198903

main90445-16026i198608-198808

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-28020i198308-198608

main32923-28030i198308-198608

W/COOLER

main32923-30090i198308-198808

main32923-35020i198608-198903

main32923-35030i198608-198903

W/COOLER

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32924-28010i198608-198903

main32924-35020i198608-198808

main90462-12085i198308-198808

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011×8i198308-198808

L=25,ID=8

main32926-30020×8i198608-198903

L=35,ID=10

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-35010i198308-198808

main90461-08070i198308-198808

main90461-08628i198608-198903

9161140612

main91611-40612

9161141016

main91611-41016

13 parts on this diagram · 3 diagrams in section
