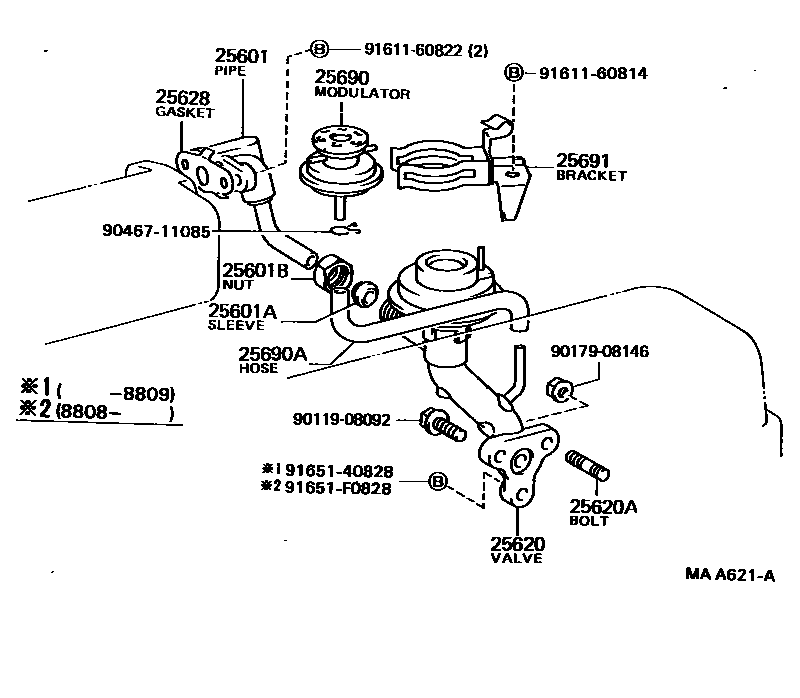

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-35010i22REC..RN61198712-198808

main25601-35050i22REC..RN61198808-198903

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-16044i22REC..RN61198712-198903

25601BNUT, UNION, EGR PIPE, NO.1

main90402-22081i22REC..RN61198712-198903

25620VALVE ASSY, EGR

main25620-35130i22REC..RN61198712-198903

main25620-71070i3Y..YN57,6#..ARL198308-198508

*NSW

main25620-71071i4YC..YN58..IV;4YC..YN58..5F..CBU198708-198808

main25620-71080i1YC..YN55198308-198508

main25620-71081i2YC..YN56198708-198808

main25620-73050i4Y..YN63..ARL198508-198610

*NSW

main25620-73060i1YC..YN55198608-198708

main25620-73080i3Y..YN57..4FC..ARL198608-198708

main25620-73090i4Y..YN63..ARL198610-198708

*NSW

main25620-73100i4YC..YN58..4FC..CBU198708-198808

25620ABOLT, STUD(FOR EGR VALVE)

main90116-08207i22REC..RN61198712-198903

25628GASKET, EGR INLET

main25628-35010i22REC..RN61198712-198808

main25628-35020i22REC..RN61198808-198903

25690MODULATOR ASSY, EGR VACUUM

main25870-35100i22REC..RN61198712-198808

main25870-35130i22REC..RN61198808-198903

main25870-71010i4Y..YN63,67..ARL198508-198606

*NSW

main25870-71011i4Y..YN63,67..ARL198606-198708

*NSW

main25870-71040i1YC,3Y..YN55,57..ARL198508-198606

*NSW

main25870-71041i2YC,4Y,4YC..YN56,58,6#..ARL198708-198903

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-35010i22REC..RN61198712-198808

main25695-35020i22REC..RN61198808-198903

main90445-11065i1YC..YN55; 3Y..YN57,6#..ARL198308-198508

*NSW

main90445-11080i2YC,4Y,4YC..YN56,58,6#..ARL198708-198903

25691BRACKET, EGR VACUUM MODULATOR

main25691-35021i22REC..RN61198712-198808

main25691-35030i22REC..RN61198808-198903

main25691-71020i1YC..YN55; 3Y..YN57,6#..ARL198308-198508

*NSW

main25691-73020i1YC,3Y,4Y..YN55,57,6#..ARL198608-198708

*NSW

9011908092

main90119-08092

9017908146

main90179-08146

9046711085

main90467-11085

9161160814

main91611-60814

9161160822

main91611-60822

9165140828

main91651-40828

91651F0828

main91651-F0828

16 parts on this diagram · 2 diagrams in section
