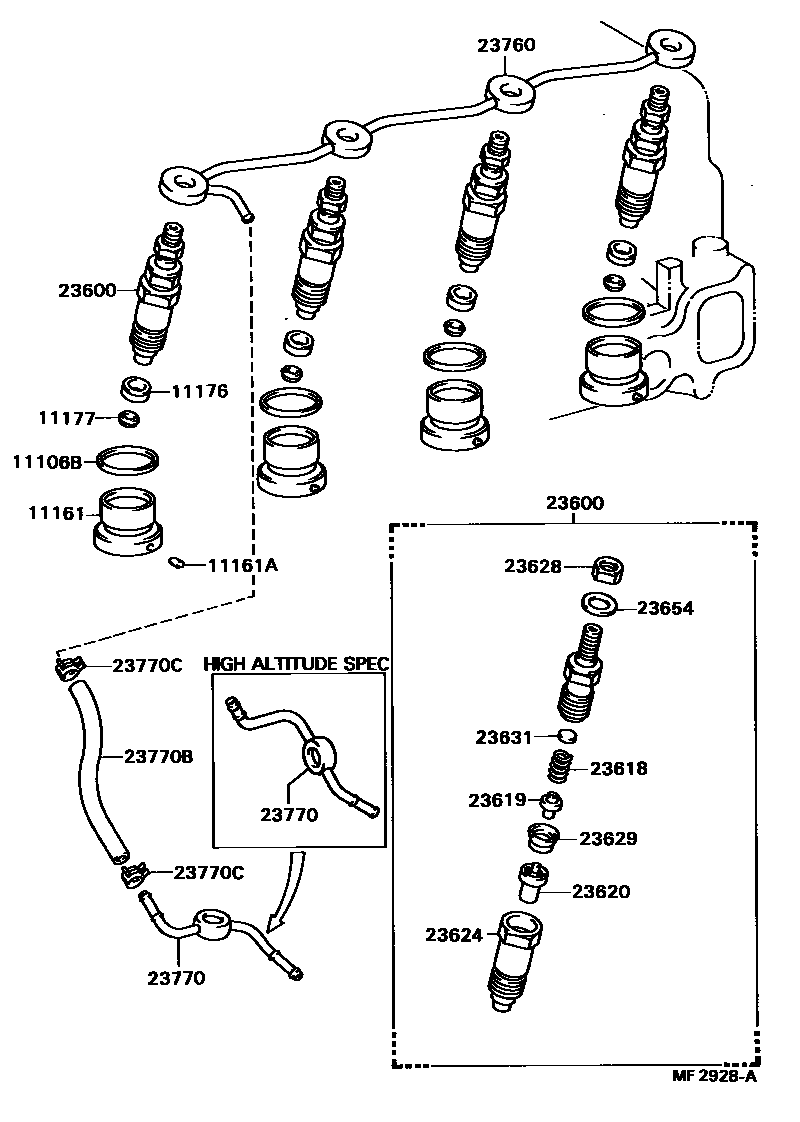

INJECTION NOZZLE
11106CHAMBER SUB-ASSY, COMBUSTION
11106BSHIM(FOR COMBUSTION CHAMBER)
T=0.05
T=0.03
T=0.10
T=0.15
T=0.20
11161CHAMBER, COMBUSTION
11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)
11176SEAT, INJECTION NOZZLE
23600HOLDER & NOZZLE SET, NOZZLE
HONG KONG SPEC
MALAYSIA SPEC
23619PIN, NOZZLE HOLDER PRESSURE
23620NOZZLE ASSY
MALAYSIA SPEC
HONG KONG SPEC
23628NUT(FOR RING PACKING SETTING)
23629PIECE, DISTANCE(FOR NOZZLE)
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
T=1.000
T=0.900
T=0.950
T=1.000
T=1.050
T=1.100
T=1.050
T=1.150
T=1.200
T=1.250
T=1.300
T=1.350
T=1.100
T=1.400
T=1.450
T=1.500
T=1.550
T=1.600
T=1.150
T=1.650
T=1.700
T=1.750
T=1.800
T=1.850
T=1.200
T=1.900
T=1.950
T=1.250
T=1.300
T=1.350
T=1.400
T=1.450
T=1.500
T=1.550
T=1.600
T=1.650
T=1.700
T=1.750
T=1.800
T=1.850
T=1.900
T=1.950
23654WASHER(FOR RING PACKING)
T=0.900
23760PIPE ASSY, NOZZLE LEAKAGE
23770BHOSE, FUEL
L=200(*H,L=110)
L=200(*H,L=120)
19 parts on this diagram · 3 diagrams in section
