ENGINE OIL COOLER

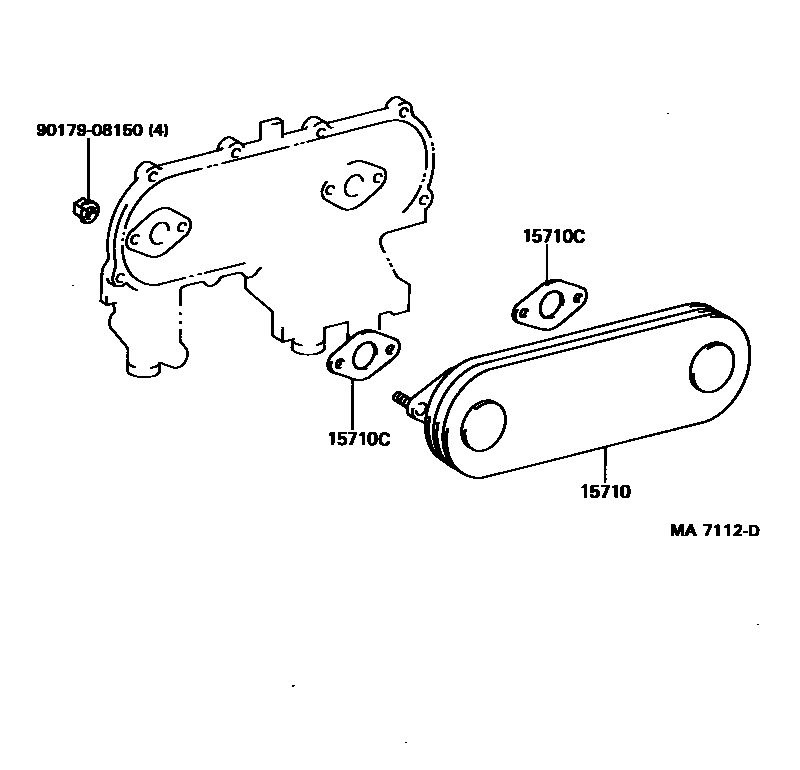

Parts diagram

15710COOLER ASSY, OIL

main15710-54021i198308-198408

main15710-54030i198308-198909

main15710-54050i199109-199508

15710CGASKET(FOR OIL COOLER)

main15785-54010×2i198808-199807

main90923-05015×2i198308-198808

9017908150

main90179-08150

3 parts on this diagram · 1 diagram in section
