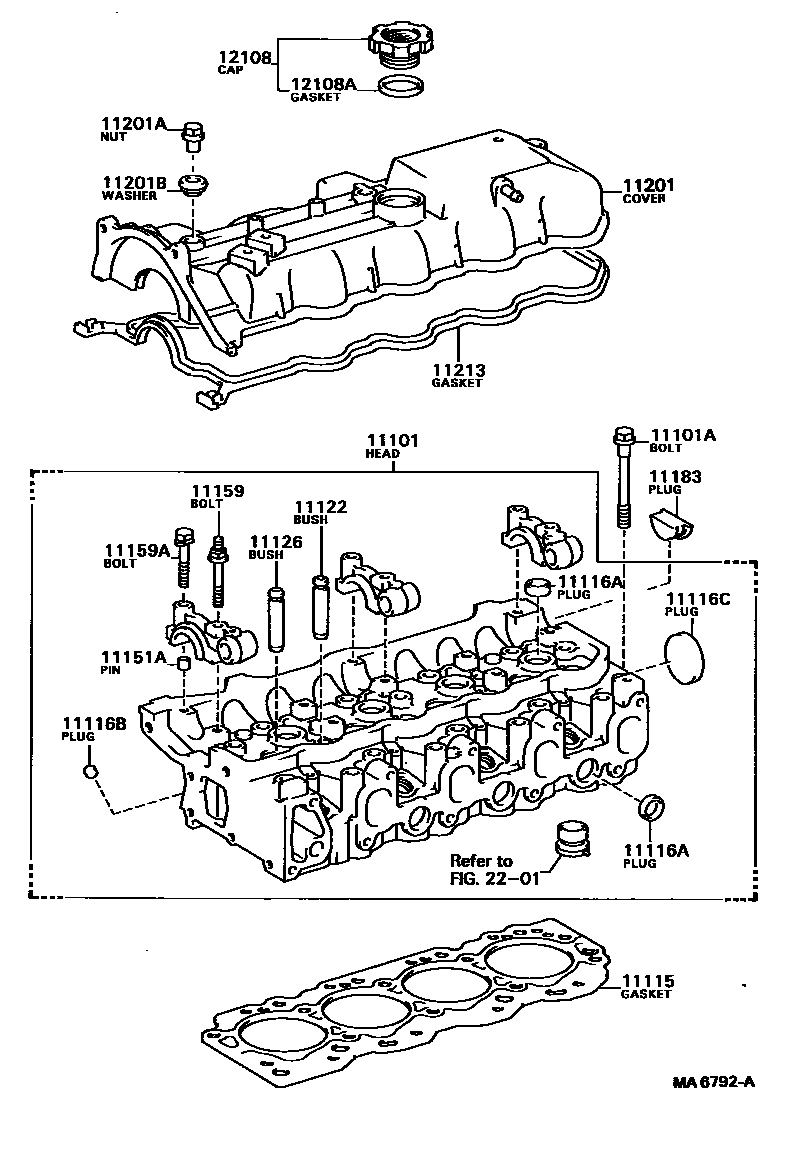

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1

11101HEAD SUB-ASSY, CYLINDER

main11101-35060i22R#..RN5#,61198601-199807

sub11101-35080

main11101-54040iL..LN50,55198308-198408

main11101-54050i2L..LN51,56,6#198308-199508

main11101-54111i2L..LN51,56199508-199807

main11101-54131i3L..LN57,67199508-199807

main11101-71010i1YC..YN55198308-198508

*NSW

main11101-71010i1Y#,2Y#..YN50,51,55,56198508-199212

main11101-71011i2Y..YN51,56199212-199807

main11101-71020i2Y,3Y..YN56,65..EUR198308-198508

sub11101-71010

sub90340-18003

main11101-71030i1Y,3Y..YN50,52,55,57,6#..ARL,GEN,ME,SA198308-198508

sub11101-71010

sub90340-16002

sub90340-18003

sub90344-53011

main11101-73010i4Y,4YC..YN58,6#..ARL198608-198903

main11101-73010i3Y,4Y..YN57,63,67..ARL198508-198708

*NSW

main11101-73020i3Y,4Y,4YE..YN52,57,58,6#..ARL,GEN,ME,SA198508-199212

main11101-73021i4Y..YN58,67199212-199807

11101ABOLT(FOR CYLINDER HEAD SET)

main90105-12056i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F198308-199807

main90105-12092i22R#..RN5#,61198601-199807

main90910-02060iL,2L..LN5#,6#198308-198807

*12-1.25PX112-24

sub90910-02090

main90910-02080i2L,3L..LN5#,67199508-199807

NO.1

main90910-02081i2L,3L..LN5#,67199508-199807

NO.2

main90910-02090i2L..LN5#,6#198807-199508

*12-1.25PX112-24

11115GASKET, CYLINDER HEAD

main11115-35020i22R..RN5#198601-198808

sub11115-35021

main11115-35022i22R..RN67;22R..RN58..SR5199407-199807

main11115-35040i22REC..RN61198712-198808

sub11115-35060

main11115-35060i22REC..RN61198808-198903

main11115-54011iL..LN50,55198308-198408

sub11115-54090

main11115-54012iL..LN50,55198408-198408

sub11115-54100

main11115-54020i2L..LN51,56,6#198308-198912

sub11115-54021

main11115-54021i2L..LN5#,65198912-199508

main11115-54072-B0i3L..LN57,67199508-199603

MARK B,MARK B

sub11115-54073

main11115-54072-D0i3L..LN57,67199508-199603

MARK D,MARK D

sub11115-54073

main11115-54072-F0i3L..LN57,67199508-199603

MARK F,MARK F

sub11115-54073

main11115-54073-B0i3L..LN57,67199603-199807

MARK B,MARK B

main11115-54073-D0i3L..LN57,67199603-199807

MARK D,MARK D

main11115-54073-F0i3L..LN57,67199603-199807

MARK F,MARK F

main11115-54084-B0i2L..LN51,56199508-199807

MARK B,MARK B

main11115-54084-D0i2L..LN51,56199508-199807

MARK D,MARK D

main11115-54084-F0i2L..LN51,56199508-199807

MARK F,MARK F

main11115-71010i1Y#,2Y,3Y..YN5#,6#198308-198508

sub11115-71011

main11115-71011i1Y#,2Y#,3Y..YN50,51,52,55,56,57198508-199108

sub11115-73040

main11115-73010i4Y..YN67;4Y..YN58..4F;4Y..YN58..SR5;4Y#..YN58,62,63..ARL,GEN,ME198508-199807

sub11115-73030

main11115-73040i2Y,3Y..YN51,56,57199108-199308

sub11115-73041

main11115-73041i2Y..YN51,56199308-199511

main11115-73050i2Y..YN51,56199511-199807

11116APLUG, TIGHT, NO.1

main96411-42500iL,2L..LN50,51,55,56,60,61,65198308-199807

OD=25

11116BPLUG, TIGHT, NO.2

main96411-41200iL,2L..LN5#,6#198308-199508

OD=12

main96411-42500i2L,3L..LN5#,67199508-199807

OD=25

11116CPLUG, TIGHT, NO.3

main96411-43000i2L,3L..LN5#,67199508-199807

OD=30

main96411-45000iL,2L..LN5#,6#198308-199508

OD=50

11122BUSH, INTAKE VALVE GUIDE

main11122-35020i22R#..RN5#,61198601-199807

STD,STD

main11122-54011iL,2L..LN5#,6#198308-199508

STD,STD

main11122-54020i2L,3L..LN5#,67199508-199807

STD,STD

sub11122-17020

main11122-71020i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F198308-199807

STD,STD

main11123-35020i22R#..RN5#,61198601-199807

O/S 0.05,O/S 0.05

main11123-54011iL,2L..LN5#,6#198308-199508

O/S 0.05,O/S 0.05

main11123-54020i2L,3L..LN5#,67199508-199807

O/S 0.05,O/S 0.05

sub11123-17020

main11123-71020i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F198308-199807

O/S 0.05,O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-38021i22R..RN67;22R..RN58..SR5198601-199807

STD,STD

main11122-54011iL,2L..LN5#,6#198308-199508

STD,STD

main11122-54020i2L,3L..LN5#,67199508-199807

STD,STD

sub11122-17020

main11123-38021i22R#..RN5#,61198601-199807

O/S 0.05,O/S 0.05

main11123-54011iL,2L..LN5#,6#198308-199508

O/S 0.05,O/S 0.05

main11123-54020i2L,3L..LN5#,67199508-199807

O/S 0.05,O/S 0.05

sub11123-17020

main11126-71020i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F198308-199807

STD,STD

main11127-71020i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F198308-199807

O/S 0.05,O/S 0.05

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90253-11001iL,2L..LN5#,6#198308-199508

L=11,OD=11,L=11,OD=11

main90253-11021i2L,3L..LN5#,67199508-199807

L=8,OD=11,L=8,OD=11

11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)

main90116-08137iL,2L..LN50,51,55,56,60,61,65198308-199807

L=76.6,S=13&15

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90105-08166i2L,3L..LN5#,67199508-199807

main90119-08191iL,2L..LN5#,6#198308-199508

*8-1.25PX55-30

11183PLUG, SEMICIRCULAR

main11183-38010i22R#..RN5#,61198601-199807

main11183-54011iL,2L..LN5#,6#198308-199508

main11183-54020i2L,3L..LN5#,67199508-199807

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-35030i22R#..RN5#,61198601-198804

sub11201-35031

main11201-35031i22R#..RN5#,61198804-198903

sub11201-35032

main11201-35032i22R..RN67;22R..RN58..SR5199407-199807

main11201-54050iL,2L..LN5#,6#198308-198801

sub11201-54080

main11201-54080i2L..LN5#,6#198801-199508

main11201-71011i2Y,4Y..YN5#,67199208-199512

sub11201-71012

main11201-71012i2Y,4Y..YN5#199512-199807

main11201-79035i1Y#,2Y#,3Y,4Y#..YN5#,6#198308-199208

sub11201-71011

sub11213-71020

sub90210-09001

main11210-54041i2L,3L..LN5#,67199508-199807

sub11210-54042

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90176-08007i22R#..RN5#,61198308-199807

main90176-08014iL,2L..LN5#,6#198308-199508

main90176-08041i22REC..RN61198808-199807

main90179-06319i2L,3L..LN5#,67199508-199807

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-08026i22R#..RN5#,61198601-198903

main90210-08040i22R..RN67;22R..RN58..SR5199407-199807

main90210-09001i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F198308-199807

sub90210-09019

main90210-13001iL,2L..LN50,51,55,56,60,61,65198308-199807

11213GASKET, CYLINDER HEAD COVER

main11213-35010i22R..RN67;22R..RN58..SR5198601-199807

main11213-54030iL,2L..LN5#,6#198308-199508

main11213-54050i2L,3L..LN5#,67199508-199807

main11213-71020i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F198308-199807

12108CAP SUB-ASSY, OIL FILLER

main12180-13030i22R#..RN5#,61198510-199508

sub12180-55010

main12180-61010i1Y#,2Y#,3Y,4Y#..YN5#,6#198705-199003

sub12180-70020

main12180-65011i22R..RN67;22R..RN58..SR5199407-199807

main12180-70010iL,2L..LN5#,6#198308-198510

sub12108-78010

main12180-70020i2L,3L..LN5#,67199508-199807

main12180-71010i1Y#,2Y,3Y..YN5#,6#198308-198506

sub12180-71011

main12180-71011i1Y#,2Y,3Y,4Y#..YN5#,6#198506-198705

sub12180-61010

main12180-73010i4Y..YN58..4F;4Y..YN58..SR5;1Y,2Y,3Y,4Y..YN51,55,56,57,67..4F,4H,5F199011-199807

sub12180-73011

main12180-75010i1Y,2Y,3Y,4Y..YN5#,67199003-199011

sub12180-73011

12108AGASKET(FOR OIL FILLER CAP)

main12195-70010i1Y,2Y,3Y,4Y..YN5#,67199003-199807

main12195-71010i1Y#,2Y,3Y..YN5#,6#198308-198506

sub12195-71020

main12195-71020i1Y#,2Y#,3Y,4Y#..YN5#,6#198506-199003

main12195-73010i4Y..YN58..4F;4Y..YN58..SR5;1Y,2Y,3Y,4Y..YN51,55,56,57,67..4F,4H,5F199011-199807

main90430-37140i22R..RN58,67198308-199807

2201

19 parts on this diagram · 4 diagrams in section
