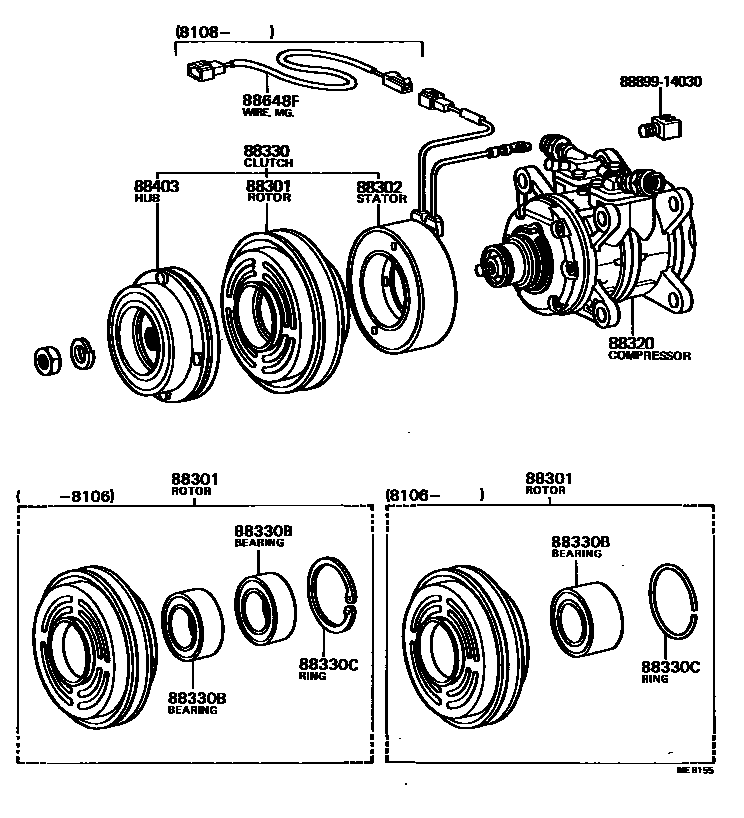

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12040iRN46..GEN;RN46..ARL..IV3;LN3#,4#,RN3#,40,41..ARL,GEN,PHL,SA197808-198106

main88412-14010iLN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA198106-198403

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iLN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA198106-198403

main88411-22040iRN46..GEN;RN46..ARL..IV3;LN3#,4#,RN3#,40,41..ARL,GEN,PHL,SA197808-198106

88320COMPRESSOR ASSY, COOLER

main88320-35010iRN30,40..RHD..(ARL,GEN,SA)197808-198108

main88320-35011iRN30,40..RHD..(ARL,GEN,SA)198108-198403

main88320-35020iRN36,46..LHD..GEN197901-198108

main88320-35021iRN3#,4#..LHD..(GEN,ME)198108-198307

main88320-35030iLN30,40..RHD..GEN197909-198108

main88320-35040iLN30,40..LHD..GEN197909-198108

main88320-35061iLN3#,4#,RN31,36,41,46..RHD..(ARL,GEN,SA)198108-198403

main88320-35070iLN36,46..LHD198103-198108

main88320-35071iLN3#,4#..LHD..GEN198108-198307

main88320-35080iLN36,46..RHD;RN46..ARL..CBU198103-198108

88330CLUTCH ASSY, MAGNET

main88410-14090iLN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA198106-198403

main88410-22060iRN46..GEN;RN46..ARL..IV3;LN3#,4#,RN3#,40,41..ARL,GEN,PHL,SA197808-198106

88330BBEARING, MAGNET CLUTCH

main90099-10117×2iRN46..GEN;RN46..ARL..IV3;LN3#,4#,RN3#,40,41..ARL,GEN,PHL,SA197808-198106

main90099-10133iLN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA198106-198403

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094iRN46..GEN;RN46..ARL..IV3;LN3#,4#,RN3#,40,41..ARL,GEN,PHL,SA197808-198106

main90099-07114iLN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA198106-198403

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030iLN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA198106-198403

main88403-26030iRN46..GEN;RN46..ARL..IV3;LN3#,4#,RN3#,40,41..ARL,GEN,PHL,SA197808-198106

88648FWIRE, MAGNET CLUTCH

main88648-89107iRN46..ARL..IV3;RN46..GEN,ME,SA;LN46..T1..ARL..CBU;RN3#,40,41..ARL,GEN,ME,PHL,SA198108-198403

8889914030COVER, EVAPORATOR

main88899-14030
