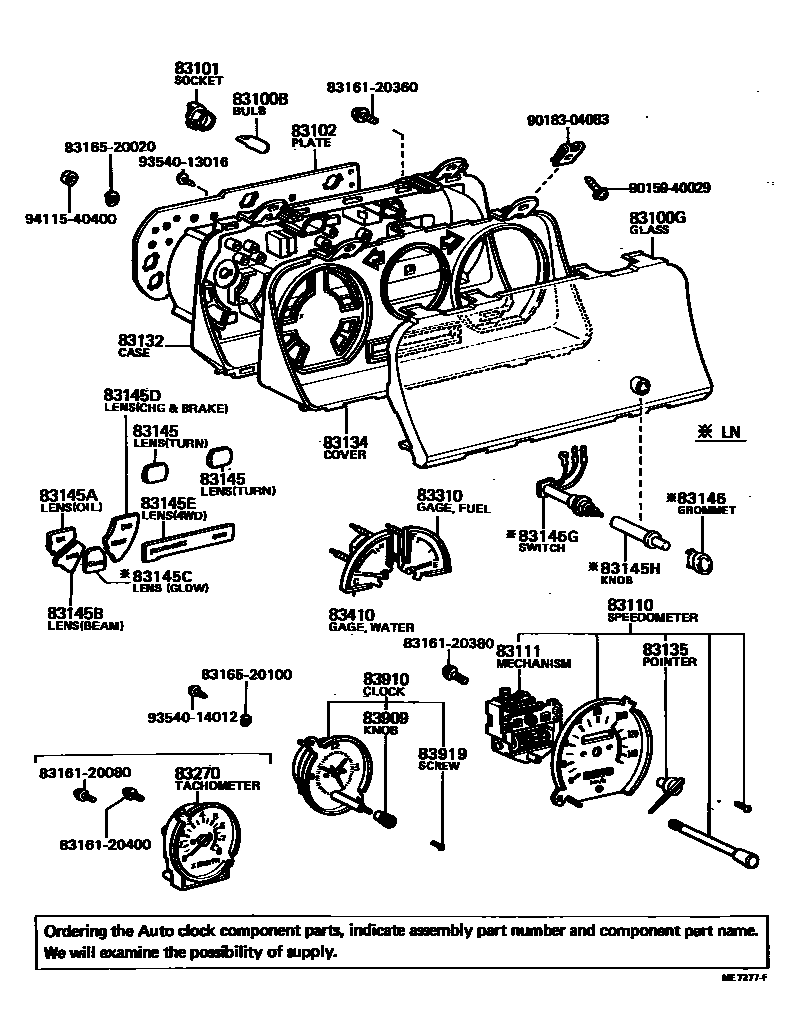

METER

0001 1 0002 1 0003 1 0005 1 0006 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018×4iLN3#,4#,RN3#,4#198108-198403

12V 1.2W W/O SOCKET,12V 1.4W

main99132-12034×12iLN3#,4#,RN3#,4#197808-198403

12V 3.4W,12V 3.4W

83100GGLASS, COMBINATION METER

main83138-89132iRN36,46..LHD..EUR; RN46..GEN,SA;RN36..ARL,GEN;RN46..ARL..IV3;LN46..T1..ARL..CBU198108-198307

W/TACHOMETER

main83138-89134iRN31,41;RN30,40..LHD..GEN197808-198108

W/CLOCK

main83138-89152iLN3#,4#;RN46..ARL..CBU197909-198108

main83138-89153iLN36,46;LN30,40..LHD;RN46..ARL..CBU197909-198108

W/CLOCK

main83138-89251iRN46..ARL..IV3;RN46..EUR,GEN,ME;LN46..T1..ARL..CBU;RN3#,40,41..DLX,STD198108-198307

W/O CLOCK

main83138-89253iRN30,31,40,41..(DLX,STD)..(ME,SA); RN30,31,40..LHD..4F..GEN; RN36,46..EUR,GEN,ME; RN41..DLX..GEN;RN41..STD..GEN..IV3198108-198307

W/CLOCK

main83138-89255iLN46..TW;LN3#,40..STD;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN)198108-198403

W/O CLOCK

main83138-89256iLN30,40..LHD..GEN; LN30,40..SA; LN36,46..LHD198108-198307

W/CLOCK

main83138-89257iRN31,41..SR5198108-198312

main83138-89274iLN40..ARL;LN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU198108-198307

W/TACHOMETER

main83138-95F08iLN40..SR5198208-198403

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040×4iLN3#,4#,RN3#,4#198108-198403

BULB=1.4W

main83101-20040×12iLN3#,4#,RN3#,4#197808-198403

BULB=3.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83102-89130iRN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3197808-198008

main83102-89168iRN30,31,40,41..ARL198008-198108

main83247-89130iLN30,40..GEN,SA;LN40..5F..ECB..CBU197909-198108

main83247-89132iLN36,46;LN40..ARL;RN46..ARL..CBU198004-198108

main83247-89211iLN40..5H..ECB198008-198108

main83247-89213iRN30,31,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA)198108-198403

main83247-89214iLN3#,4#..STD..(EUR,GEN,SA)198108-198403

main83247-89216iLN40..ARL;LN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU198108-198307

main83247-89217iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN3#,40,41..STD..ARL198108-198307

main83247-89218iLN40..ARL;LN40..SR5;LN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU198108-198307

W/TACHOMETER

main83247-89219iRN36,46..GEN,SA; RN36,46..LHD..EUR198108-198307

W/TACHOMETER

main83247-89222iRN41..SR5..ARL198108-198307

83110SPEEDOMETER ASSY

main83110-89132iRN3#,4#..EUR,GEN,PHL,SA; RN30,40..ARL197808-198108

KM

main83110-89135iRN3#,4#..EUR,GEN197808-198108

MILE & KM

main83110-89140iRN30,40..ARL; RN46..ARL..IV3;RN31,36,41..ARL197808-198108

KM; KM,NEW SOUTH WALES SPEC

main83110-89152iLN3#,4#;RN46..ARL..CBU197909-198108

KM

main83110-89154iLN3#,4#;RN46..ARL..CBU197909-198108

MILE & KM

main83110-89177iRN30,31,40,41..(DLX,STD)..(GEN,ME,PHL,SA)198108-198403

KM

main83110-89178iRN30,40..ARL; RN41..STD..ARL;RN46..ARL..IV3;LN46,RN31,36..T1..ARL..CBU198108-198307

KM; KM,NEW SOUTH WALES SPEC

main83110-89179iRN3#,4#..(DLX,STD)..GEN; RN40,46..RHD..EUR198108-198307

MILE & KM

main83110-89181iLN36,4#..LHD..EUR198108-198307

KM

main83110-89182iLN30,40..STD..GEN; LN4#..RHD..EUR198108-198307

MILE & KM

main83110-89185iRN31,41..SR5..(GEN,SA)198108-198312

KM

main83110-89186iRN31,41..SR5..GEN..ECB..CBU198108-198307

MILE & KM

main83110-89187iRN41..SR5..ARL198108-198307

KM,NEW SOUTH WALES SPEC

main83110-89191iLN40..SR5198208-198403

KM

main83110-89226iLN40..ARL;LN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU198204-198307

KM

main83110-89227iRN30,40..ARL198304-198307

KM

main83110-95112iRN36,46..GEN,SA; RN36,46..LHD..EUR198108-198307

KM,W/TACHOMETER

83111MECHANISM, SPEEDOMETER

main83112-89132iRN3#,4#..EUR,GEN,PHL,SA; RN30,40..ARL197808-198008

KM

main83112-89135iRN3#,4#..EUR,GEN197808-198008

MILE

main83112-89148iRN30,40..ARL; RN46..ARL..IV3;RN31,36,41..ARL197808-198008

KM; KM,NEW SOUTH WALES SPEC

main83112-89152iLN3#,4#;RN46..ARL..CBU197909-198108

KM

main83112-89154iLN3#,4#;RN46..ARL..CBU197909-198108

MILE

83132CASE, COMBINATION METER

main83132-89130iRN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3197808-198108

main83132-89152iLN3#,4#;RN46..ARL..CBU197909-198108

main83132-89251iLN40..ARL;LN40..SR5;LN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU; RN46..ARL,EUR,GEN,ME;LN3#,4#,RN3#,40,41..DLX,STD198108-198403

TYPE;A,W/O TACHOMETER; TYPE;A,W/TACHOMETER

main83132-89257iRN36,46..GEN,SA; RN36,46..LHD..EUR198108-198307

TYPE;B,W/TACHOMETER

83134COVER, COMBINATION METER, NO.1

main83134-89130iRN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3197808-198108

main83134-89131iRN31,36,41;RN46..EUR,GEN;RN46..ARL..IV3;RN30,40..LHD..GEN197808-198108

W/CLOCK OR TACHOMETER

main83134-89152iLN30,40197909-198008

main83134-89153iLN30,40..LHD197909-198008

W/CLOCK

main83134-89200iLN30,40..SA; LN36,46,RN36,46..EUR,GEN,ME; RN30,31,40,41..(DLX,STD)..(ME,SA); RN30,31,40..LHD..4F..GEN; RN41..DLX..GEN;RN41..STD..GEN..IV3198108-198307

W/CLOCK

main83134-89201iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN);LN3#,40,RN30,31,40,41..DLX,STD; RN36,46..EUR,GEN198108-198307

W/O CLOCK & TACHOMETER

main83134-89202iLN40..ARL;LN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU198108-198307

W/TACHOMETER

main83134-89237iLN3#,4#;RN46..ARL..CBU198008-198108

main83134-89238iLN36,46;LN30,40..LHD;RN46..ARL..CBU198008-198108

W/CLOCK

main83134-89253iLN30,40..LHD..GEN198108-198307

W/CLOCK

main83134-89257iRN36,46..GEN,SA; RN36,46..LHD..EUR198108-198307

W/TACHOMETER

main83134-89274iLN40..SR5198208-198403

83135POINTER, SPEEDOMETER

main83135-89130iLN3#,4#,RN3#,4#197808-198108

83145LENS, METER, NO.1

main83145-89114×2iLN3#,4#,RN3#,4#197808-198108

main83145-89245×2iRN46..ARL,EUR,GEN,ME;LN3#,4#,RN3#,40,41..DLX,STD198108-198403

W/O TACHOMETER

main83145-89246×2iRN36,46..GEN,SA; RN36,46..LHD..EUR198108-198307

W/TACHOMETER

83145ALENS, METER, NO.2

main83145-89113iRN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41197808-198008

main83145-89212iRN46..ARL..IV3;LN40,RN3#,40,41..ARL198008-198108

main83145-89220iLN3#,4#,RN3#,4#..EUR,GEN,PHL,SA198008-198108

main83145-89228iLN4#,RN3#,4#..STD..ARL198108-198307

main83145-89229iLN36,46,RN36,46..EUR,GEN,ME198108-198307

main83145-89242iRN31,41..SR5..(GEN,SA)198108-198312

main83145-89243iRN41..SR5..ARL198108-198307

main83145-95115iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198108

W/OIL PRESSURE GAGE

main83145-95F12iRN36,46..EUR,GEN198108-198307

W/VOLT & OIL GAGE

main83145-95F20iRN36,46..GEN,SA; RN36,46..LHD..EUR198108-198307

W/VOLT,OIL GAGE & TACHOMETER

83145BLENS, METER, NO.3

main83145-89112iRN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41197808-198008

main83145-89213iLN3#,4#,RN3#,4#198008-198108

main83145-89233iLN30,40,RN30,31,40,41..(DLX,STD)..(GEN,ME,PHL,SA)198108-198403

main83145-89237iLN40,RN30,31,40,41..STD..ARL198108-198307

main83145-89238iLN40,RN40..RHD..EUR198108-198307

W/RR FOG LAMP

main83145-89239iLN40,RN30,40..LHD..EUR198108-198307

W/RED HAZARD INDICATOR

main83145-95F14iLN36,46,RN36,46..EUR; LN36,46,RN36,46..GEN,ME198108-198307

main83145-95F15iLN46,RN36,46..ARL198108-198307

main83145-95F16iLN46,RN46..RHD..EUR198108-198307

W/RR FOG LAMP

main83145-95F17iLN46..LHD..EUR198108-198307

W/RED HAZARD INDICATOR

83145CLENS, METER, NO.4

main83145-89116iLN30,40197909-198008

main83145-89223iLN3#,4#;RN46..ARL..CBU198008-198108

main83145-89230iRN46..ARL..IV3;RN46..EUR,GEN,ME;LN46..T1..ARL..CBU;RN3#,40,41..DLX,STD198108-198403

main83145-89231iLN40..ARL;LN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU198108-198307

main83145-89232iLN3#,4#..EUR,GEN,SA198108-198403

83145DLENS, METER, NO.5

main83145-89111iRN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41197808-198008

main83145-89211iRN46..ARL..IV3;LN40,RN3#,40,41..ARL198008-198108

main83145-89219iLN3#,4#,RN3#,4#..EUR,GEN,PHL,SA198008-198108

83145ELENS, METER, NO.6

main83145-89115iLN30,40..GEN197909-198108

main83145-89119iRN30,31,40,41..EUR,GEN,PHL197808-198108

main83145-89121iLN40..ARL198004-198108

main83145-95110iRN36,46..RHD..EUR197909-198008

W/RR FOG LAMP

main83145-95111iRN36,46..EUR,GEN197901-198008

main83145-95113iRN36..ARL;RN46..ARL..IV3197901-198008

main83145-95114iRN30,31,40,41..ARL197808-198108

main83145-95116iRN30,40..4H..EUR197909-198108

W/RR FOG LAMP

main83145-95120iRN36,46..EUR,GEN198008-198108

main83145-95121iRN36,46..RHD..EUR198008-198108

W/RR FOG LAMP

main83145-95122iRN36..ARL;RN46..ARL..IV3198008-198108

main83145-95123iLN36,46;RN46..ARL..CBU198103-198108

83145GSWITCH ASSY, COMBINATION METER

main83125-89110iLN3#,4#;RN46..ARL..CBU197909-198108

83145HKNOB, COMBINATION METER

main83145-89120iLN3#,4#;RN46..ARL..CBU197909-198108

83146GROMMET, METER GLASS

main83145-89117iLN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN)197909-198403

83270TACHOMETER ASSY, ENGINE

main83270-89143iRN31,41..SR5..CBU197808-197812

main83270-89166iRN31,41..LHD..SR5198008-198108

MIDDLE EAST COUNTRY SPEC

main83270-89167iRN41..SR5;RN46..EUR,GEN;RN46..ARL..IV3;RN31,36..(4F,5F)..(SR5,STD)198008-198108

main83270-89168iRN36,46..GEN,SA; RN36,46..LHD..EUR198108-198307

TYPE:B; TYPE:B,KM

main83270-89169iRN41..SR5..ARL198108-198307

TYPE:B

main83270-89171iLN40..ARL;LN40..SR5;LN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU198108-198403

TYPE:A

main83270-89172iRN31,41..SR5..GEN..ECB..CBU198108-198307

TYPE:B,MILE & KM

main83270-95111iRN36,46..GEN,SA; RN36,46..LHD..EUR198108-198307

TYPE:B,KM,W/VOLT & OIL GAGE

83310GAGE ASSY, FUEL RECEIVER

main83243-89210iLN4#,RN3#,4#..STD..ARL198108-198307

TYPE:A

main83243-89211iLN30,40,RN30,31,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA)198108-198403

TYPE:A

main83243-89212iRN41..SR5..ARL198108-198307

TYPE:B

main83243-89213iRN36,46..GEN,SA; RN36,46..LHD..EUR198108-198307

TYPE:B,W/TACHOMETER; W/TACHOMETER

main83310-89130iLN3#,4#,RN3#,4#197808-198108

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-89210iLN4#,RN3#,4#..STD..ARL198108-198307

TYPE:A

main83244-89211iLN30,40,RN30,31,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA)198108-198403

TYPE:A

main83244-89212iRN3#,4#..LHD..4F..(GEN,ME)198108-198307

MIDDLE EAST COUNTRY SPEC:A

main83244-89213iRN41..SR5..ARL198108-198307

TYPE:B

main83244-89214iRN36,46..GEN,SA; RN36,46..LHD..EUR198108-198307

TYPE:B,W/TACHOMETER; W/TACHOMETER

main83244-89215iRN31,41..SR5..GEN..ECB..CBU198108-198307

MIDDLE EAST COUNTRY SPEC:B

main83410-89130iRN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41197808-197912

main83410-89173iLN3#,4#,RN3#,4#197912-198108

main83410-89192iLN3#,4#,RN3#,4#..GEN197912-198108

MIDDLE EAST COUNTRY SPEC

83909KNOB, CLOCK

main83909-12230iLN30,40,RN30,31,40,41..(DLX,STD)..(ME,SA); LN30,40,RN30,31,40..LHD..(DLX,STD)..GEN; LN36,46,RN36,46..EUR,GEN,ME; RN41..DLX..GEN;RN41..STD..GEN..IV3198108-198307

main83909-14012iRN31;RN30,4#..LHD..GEN197808-197812

83910CLOCK ASSY

main83910-89102iLN30,40,RN30,40..LHD..GEN;LN30,40..RHD..T1..GEN..ECB; RN41..4H..GEN;RN36,41..4F,5F;RN46..ARL..IV3;LN36,46,RN31,46..EUR,GEN,SA198008-198108

main83910-89104iLN30,40,RN30,31,40,41..(DLX,STD)..(ME,SA); LN30,40,RN30,31,40..LHD..(DLX,STD)..GEN; LN36,46,RN36,46..EUR,GEN,ME; RN41..DLX..GEN;RN41..STD..GEN..IV3198108-198307

DIGITAL

83919SCREW, CLOCK

main83919-12230iLN30,40,RN30,31,40,41..(DLX,STD)..(ME,SA); LN30,40,RN30,31,40..LHD..(DLX,STD)..GEN; LN36,46,RN36,46..EUR,GEN,ME; RN41..DLX..GEN;RN41..STD..GEN..IV3198108-198307

DIGITAL

main83919-14012iRN36;RN46..EUR,GEN;RN46..ARL..IV3;RN41..LHD..(DLX,SR5);LN30,40,RN30,31,40..LHD..GEN197812-198008

8316120080CASE, COMBINATION METER MIRROR, NO.1

main83161-20080

8316120360CASE, COMBINATION METER MIRROR, NO.1

main83161-20360

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316120400CASE, COMBINATION METER MIRROR, NO.1

main83161-20400

8316520020MIRROR, COMBINATION METER, NO.2

main83165-20020

8316520100MIRROR, COMBINATION METER, NO.2

main83165-20100

9015940029

main90159-40029

9018304083

main90183-04083

9354013016

main93540-13016

9354014012

main93540-14012

9411540400

main94115-40400

35 parts on this diagram · 5 diagrams in section
