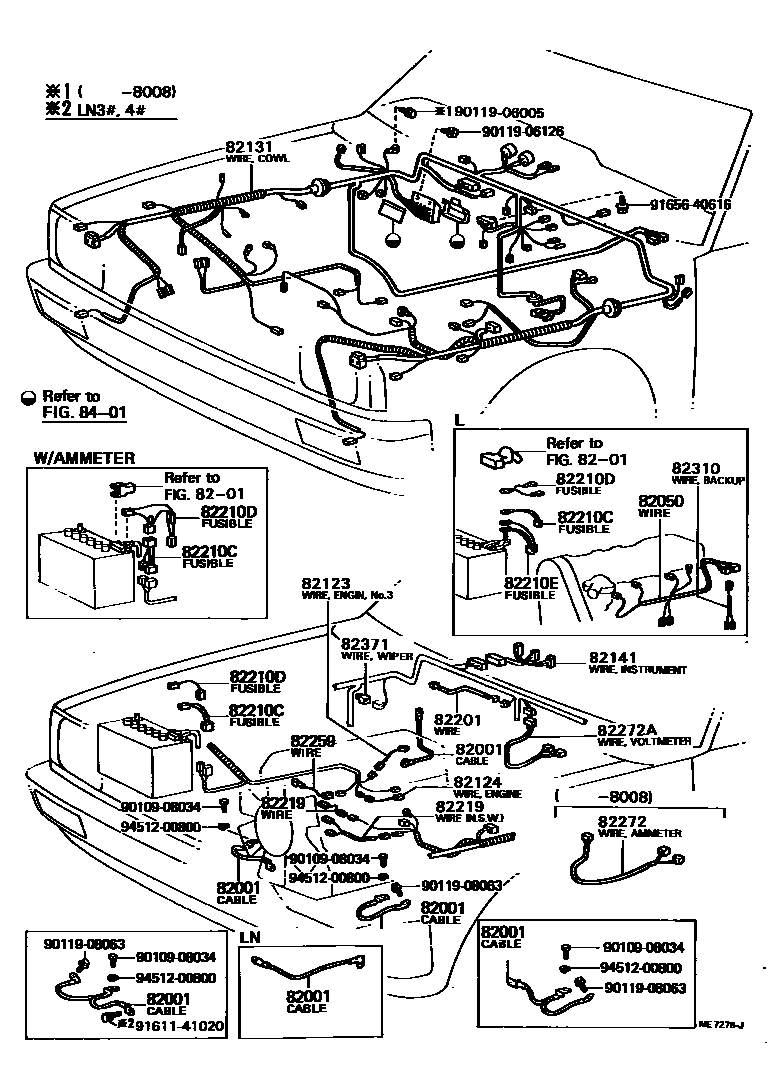

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1

82001CABLE, BOND, NO.1

main90980-07031iRN30,31,40,41198108-198403

L=210 DASH-ENGINE

main90980-07130iRN30,40..RHD197808-198403

L=350&270,APRON-FRAME,ENGINE

main90980-07139iRN31,41..RHD197808-198312

L=340,LH-APRON TO FRAME

main90980-07140iRN31,41..RHD197808-198312

L=260,RH-FRAME TO ENGINE

main90980-07145iRN30,40..LHD197808-198307

L=470

main90980-07146iRN31,41..LHD197808-198307

L=310&290,APRON-FRAME,ENGINE

main90980-07152iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197901-198307

L=270&250,APRON-FRAME,ENGINE

main90980-07165iLN30,40..RHD..(ARL,GEN,SA)197909-198403

L=280&310,APRON-FRAME,ENGINE

main90980-07166iLN30,40..LHD197909-198101

L=300 & 375

main90980-07174iLN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN)197909-198403

L=320,DASH-ENGINE

main90980-07197iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198103-198307

L=220&300,APRON-FRAME,ENGINE

8201BATTERY & BATTERY CABLE

→ Go to FIG 82-01

82050WIRE ASSY, ENGINE

main82050-89101iLN30,40197909-198101

main82050-89107iLN30,40..STD..(ARL,GEN,SA)198108-198403

main82121-89102iLN46..TW;LN46..IV3;RN46..ARL..CBU;LN36,46..T1..GEN..CBU198108-198307

main82121-89103iLN40..EUR198108-198307

main82121-95112iLN36,46..EUR198108-198307

82123WIRE, ENGINE, NO.3

main82124-95111iRN36,46..EUR,GEN,SA198108-198307

COLD SPEC

82124WIRE, ENGINE, NO.4

main82124-95110iRN36,46..RHD..(EUR,GEN,SA)198108-198307

COLD SPEC

82131WIRE, COWL

main82131-89106iLN40..5H198208-198307

main82131-89118iRN40..4H..EUR198108-198208

main82131-89119iRN30,40..ARL198108-198307

main82131-89120iRN30,40..ARL198108-198307

NEW SOUTH WALES SPEC

main82131-89121iRN30,40..SA198108-198312

main82131-89122iRN30,40..4H..RCB198108-198202

HONGKONG SPEC

main82131-89123iRN30,40..RHD..T1..GEN198108-198403

main82131-89124iRN40..RHD..GEN..ECB..CBU198108-198307

main82131-89125iRN31,41..4H..ARL198108-198307

main82131-89126iRN41..DLX..SA198108-198312

main82131-89127iRN41..RHD..(DLX,STD)..GEN198108-198307

main82131-89128iRN41..SR5..ARL198108-198307

main82131-89129iRN41..SR5..SA198108-198312

main82131-89130iRN31,41..RCB198108-198307

main82131-89131iRN30,40..4F..EUR198108-198208

W/HEADLAMP CLEANER

main82131-89132iRN30,40..4F..EUR198108-198208

main82131-89133iRN30,40..LHD..T1..(GEN,ME); RN30,40..LHD..T1..GEN; RN30,40..PHL198108-198208

W/*TIS

main82131-89134iRN30,40..LHD..T1..(GEN,ME)198108-198208

W/NON REVERSE STEREO

main82131-89135iRN40..LHD..TW; RN40..LHD..TW..GEN198108-198208

W/*TIS

main82131-89136iRN40..LHD..TW198108-198208

W/NON REVERSE STEREO

main82131-89137iRN31,41..LHD..4F198108-198208

main82131-89138iRN31,41..LHD..DLX..GEN; RN31,41..ME198208-198307

IGNITION & DOOR KEY=TOYOTA

main82131-89139iRN31,41..SR5..GEN..ECB198108-198208

main82131-89140iRN31,41..SR5..GEN..ECB198108-198208

W/NON REVERSE STEREO

main82131-89143iLN40..5H198108-198208

main82131-89144iLN40..ARL198108-198112

main82131-89145iLN30,40..SA198108-198112

main82131-89146iLN30,40..RHD..T1..GEN198108-198112

W/CYCLONE AIR CLEANER

main82131-89147iLN40..RHD..TW198108-198112

W/CYCLONE AIR CLEANER

main82131-89148iLN30,40..RHD..T1..GEN198108-198112

W/STD AIR CLEANER

main82131-89149iLN40..RHD..TW198108-198112

W/STD AIR CLEANER

main82131-89151iLN40..5F..EUR198108-198208

main82131-89152iLN40..5F..EUR198108-198208

W/HEADLAMP CLEANER

main82131-89153iLN30,40..LHD..T1..GEN198108-198112

W/CYCLONE AIR CLEANER & *TIS

main82131-89154iLN30,40..LHD..T1..GEN198108-198112

W/CYCLONE,*TIS & NON REVERSE

main82131-89155iLN40..LHD..TW198108-198112

W/CYCLONE AIR CLEANER & *TIS

main82131-89156iLN40..LHD..TW198108-198112

W/CYCLONE,*TIS & NON REVERSE

main82131-89157iLN30,40..LHD..T1..GEN198108-198112

W/STD AIR CLEANER

main82131-89158iLN30,40..LHD..T1..GEN198108-198112

W/STD CLEANER,*TIS &NONREVERSE

main82131-89159iLN40..LHD..TW198108-198112

W/STD AIR CLEANER

main82131-89160iLN40..LHD..TW198108-198112

W/STD CLEANER,*TIS &NONREVERSE

main82131-89161iLN40..T1..ARL198112-198307

main82131-89162iLN30,40..SA198112-198312

main82131-89163iLN30,40..RHD..T1..GEN198112-198208

W/CYCLONE AIR CLEANER

main82131-89164iLN40..RHD..TW..GEN198208-198307

main82131-89165iLN30,40..RHD..T1..GEN198112-198208

W/STD AIR CLEANER

main82131-89166iLN40..RHD..TW198112-198208

W/STD AIR CLEANER

main82131-89167iLN30,40..LHD..T1..GEN198112-198208

W/CYCLONE AIR CLEANER & *TIS

main82131-89168iLN30,40..LHD..T1..GEN198208-198307

W/CYCLONE AIR CLEANER

main82131-89169iLN40..LHD..TW198112-198208

W/CYCLONE AIR CLEANER & *TIS

main82131-89170iLN40..LHD..TW198208-198307

W/CYCLONE AIR CLEANER

main82131-89171iLN30,40..LHD..T1..GEN198112-198208

W/STD AIR CLEANER

main82131-89172iLN30,40..LHD..T1..GEN198208-198307

W/STD AIR CLEANER

main82131-89173iLN40..LHD..TW198112-198208

W/STD AIR CLEANER

main82131-89174iLN40..LHD..TW198112-198208

W/STD CLEANER,*TIS &NONREVERSE

main82131-89194iRN30,40..T1..ME198208-198307

IGNITION & DOOR KEY=NAIMAN

main82131-89196iRN40..TW..ME198208-198307

IGNITION & DOOR KEY=NAIMAN

main82131-89197iRN31,41..ME198208-198208

W/NONREVERSE STEREO & *NK

main82131-89198iRN31,41..ME198208-198307

IGNITION & DOOR KEY=NAIMAN

main82131-89199iRN41..4F..ARL198208-198307

main82131-89200iLN40..TW..ARL198208-198307

main82131-89201iLN40..SR5198208

main82131-89202iRN41..SR5..IV3198208-198307

main82131-89203iRN40..4H..EUR198208-198211

main82131-89204iRN30,40..4F..EUR198208-198211

main82131-89205iRN30,40..4F..EUR198208-198211

W/HEADLAMP CLEANER

main82131-89206iLN40..5H198208-198211

main82131-89207iLN40..5F..EUR198208-198211

main82131-89208iLN40..5F..EUR198208-198211

W/HEADLAMP CLEANER

main82131-89211iRN40..4H..EUR198211-198307

main82131-89212iRN30,40..4F..EUR198211-198307

main82131-89213iRN30,40..4F..EUR198211-198307

W/HEADLAMP CLEANER

main82131-89214iLN40..5H198211-198307

main82131-89215iLN40..5F..EUR198211-198307

main82131-89216iLN40..5F..EUR198211-198307

W/HEADLAMP CLEANER

main82131-95118iRN36,46..LHD..EUR198108-198208

main82131-95120iRN46..RHD..EUR198108-198208

main82131-95121iRN46..SA198108-198307

main82131-95122iRN46..ARL..IV3;LN46,RN36..T1..ARL..CBU198108-198307

main82131-95124iRN36,46..RHD..GEN198108-198307

main82131-95128iRN36,46..LHD..(GEN,ME)198108-198307

main82131-95136iLN36,46..LHD..EUR198108-198208

main82131-95137iLN36,46..LHD..EUR198108-198208

W/HEAD LAMP CLEANER

main82131-95138iLN36,46..LHD..EUR198108-198208

W/RED HAZARD INDICATOR

main82131-95139iLN46..RHD..EUR198108-198208

main82131-95140iLN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU198108-198112

main82131-95144iLN36,46..RHD..GEN198108-198112

main82131-95145iLN36,46..LHD..GEN198108-198112

main82131-95155iLN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU198112-198302

main82131-95156iLN36,46..RHD..GEN198112-198302

main82131-95157iLN36,46..LHD..GEN198112-198302

main82131-95167iRN36,46..ME198208-198307

W/BRAKE WARNING LAMP

main82131-95170iLN46..RHD..EUR198208-198211

main82131-95171iRN46..RHD..EUR198208-198211

main82131-95173iLN36,46..LHD..EUR198208-198211

main82131-95174iLN36,46..LHD..EUR198208-198211

W/HEAD LAMP CLEANER

main82131-95175iLN36,46..LHD..EUR198208-198211

W/RED HAZARD INDICATOR

main82131-95176iRN36,46..LHD..EUR198208-198211

main82131-95177iRN36,46..LHD..EUR198211-198307

main82131-95178iRN46..RHD..EUR198211-198307

main82131-95179iLN36,46..LHD..EUR198211-198302

main82131-95180iLN46..RHD..EUR198211-198302

main82131-95181iLN36,46..LHD..EUR198211-198302

W/RED HAZARD INDICATOR

main82131-95182iLN36,46..LHD..EUR198211-198302

W/HEAD LAMP CLEANER

main82131-95184iLN36,46..RHD..GEN198302-198307

main82131-95185iLN36,46..LHD..GEN198302-198307

main82131-95186iLN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU198302-198307

main82131-95187iLN36,46..LHD..EUR198302-198307

main82131-95188iLN46..RHD..EUR198302-198307

main82131-95189iLN36,46..LHD..EUR198302-198307

W/RED HAZARD INDICATOR

main82131-95F00iLN36,46..LHD..EUR198302-198307

W/HEAD LAMP CLEANER

main82210-89194iRN30,40..RHD..GEN..RCB197808-198008

main82210-89195iRN30,40..ARL197808-197904

main82210-89196iRN30,40..ARL197808-197904

NEW SOUTH WALES SPEC

main82210-89197iRN30,40..4H..EUR197808-198108

main82210-89198iRN30,40..LHD..T1..GEN197808-198008

main82210-89199iRN30,40..4F..EUR197808-198008

main82210-89300iRN31,41..RHD..DLX197808-198008

main82210-89301iRN31,41..RHD..SR5..(GEN,SA)197808-198008

main82210-89303iRN31,41..LHD..4F197808-198008

main82210-89304iRN31,41..LHD..SR5197808-198008

main82210-89305iRN31,41..ARL197808-197904

main82210-89312iRN30,40..PHL197808-198008

main82210-89317iRN30,40..SA197808-198008

main82210-89318iRN40..RHD..GEN..ECB197901-198008

main82210-89319iRN40..LHD..TW197901-198008

main82210-89320iRN30,40..LHD..T1..GEN197808-198008

W/TAPE PLAYER

main82210-89321iRN31,41..LHD..DLX197808-198008

W/TAPE PLAYER

main82210-89322iRN31,41..LHD..SR5197808-198008

W/TAPE PLAYER

main82210-89323iRN40..LHD..TW197901-198008

W/TAPE PLAYER

main82210-89324iLN30,40..LHD..T1..GEN198008-198101

main82210-89325iLN30,40..LHD..T1197909-198008

W/CYCLONE AIRCLEANER

main82210-89326iLN30,40..LHD..T1..GEN198008-198101

W/NONREVERSE TAPE PLAYER

main82210-89327iLN30,40..LHD..T1..GEN198008-198012

W/CYCLONE CLEANER & NONREVERSE

main82210-89328iLN30,40..RHD..T1..GEN197909-198008

main82210-89329iLN30,40..RHD..T1..GEN197909-198008

W/CYCLONE AIRCLEANER

main82210-89330iLN40..RHD..TW197909-198101

main82210-89331iLN40..RHD..TW197909-198012

W/CYCLONE AIRCLEANER

main82210-89332iLN40..LHD..TW197909-198101

main82210-89333iLN40..LHD..TW197909-198012

W/CYCLONE AIRCLEANER

main82210-89334iLN40..LHD..TW197909-198008

W/TAPE PLAYER

main82210-89335iLN40..LHD..TW198008-198012

W/CYCLONE CLEANER & NONREVERSE

main82210-89336iRN30,40..ARL197904-198008

main82210-89337iRN30,40..ARL197904-198008

NEW SOUTH WALES SPEC

main82210-89338iRN31,41..ARL197904-198008

main82210-89355iRN30,40..4H..RCB..CBU197909-198008

HONG KONG SPEC

main82210-89356iLN40..ARL198004-198012

main82210-89357iRN30,40..ARL198008-198108

main82210-89358iRN30,40..ARL198008-198108

NEW SOUTH WALES SPEC

main82210-89359iRN30,40..4H..RCB..CBU198008-198108

HONG KONG SPEC

main82210-89360iRN30,40..SA198008-198108

main82210-89361iRN30,40..RHD..T1..GEN198008-198108

main82210-89362iRN40..RHD..GEN..ECB..CBU198008-198108

main82210-89363iRN30,40..LHD..T1..(GEN,PHL)198008-198108

main82210-89364iRN30,40..LHD..T1..GEN198008-198108

W/NONREVERSE TAPE PLAYER

main82210-89365iRN40..LHD..TW198008-198108

main82210-89366iRN40..LHD..TW198008-198108

W/NONREVERSE TAPE PLAYER

main82210-89367iRN41..SR5..ARL198008-198108

main82210-89368iRN31,41..STD..ARL198008-198108

main82210-89369iRN31,41..RHD..SR5..(GEN,SA)198008-198108

main82210-89370iRN31,41..RHD..(DLX,STD)..(GEN,SA)198008-198108

main82210-89371iRN31,41..LHD..SR5198008-198108

main82210-89372iRN31,41..LHD..SR5198008-198108

W/NONREVERSE TAPE PLAYER

main82210-89373iRN31,41..LHD..4F198008-198108

main82210-89374iRN31,41..LHD..DLX198008-198108

W/NONREVERSE TAPE PLAYER

main82210-89375iLN40..5H..ECB198008-198101

main82210-89376iLN40..5F..ECB..CBU198008-198101

main82210-89395iRN30,40..4F..EUR198008-198108

W/HEADLAMP CLEANER

main82210-89396iLN40..5F..ECB..CBU198008-198101

W/HEADLAMP CLEANER

main82210-89397iRN30,40..4F..EUR198008-198108

main82210-89398iLN30,40..LHD..T1..GEN198012-198101

W/CYCLONE AIRCLEANER

main82210-89399iLN30,40..LHD..T1..GEN198012-198101

W/CYCLONE CLEANER & NONREVERSE

main82210-89400iLN30,40..RHD..T1..(GEN,SA)198012-198101

W/CYCLONE AIRCLEANER

main82210-89401iLN40..RHD..TW198012-198101

W/CYCLONE AIRCLEANER

main82210-89402iLN40..LHD..TW198012-198101

W/CYCLONE AIRCLEANER

main82210-89403iLN40..LHD..TW198012-198101

W/CYCLONE CLEANER & NONREVERSE

main82210-89404iLN40..ARL198012-198101

main82210-89405iLN30,40..LHD..T1..GEN198101-198108

main82210-89406iLN30,40..LHD..T1..GEN198101-198108

W/CYCLONE AIRCLEANER

main82210-89407iLN30..LHD;LN40..LHD..RCB;LN40..LHD..T1..GEN..ECB..CBU198101-198108

W/NONREVERSE TAPE PLAYER

main82210-89408iLN30..LHD;LN40..LHD..RCB;LN40..LHD..T1..GEN..ECB..CBU198101-198108

W/CYCLONE CLEANER & NONREVERSE

main82210-89409iLN40..5F..ECB..CBU198101-198108

main82210-89410iLN40..5F..ECB..CBU198101-198108

W/HEADLAMP CLEANER

main82210-89411iLN40..LHD..TW198101-198108

main82210-89412iLN40..LHD..TW198101-198108

W/CYCLONE AIRCLEANER

main82210-89413iLN40..LHD..TW198101-198108

W/NONREVERSE TAPE PLAYER

main82210-89414iLN40..LHD..TW198101-198108

W/CYCLONE CLEANER & NONREVERSE

main82210-89417iLN30,40..RHD..T1..(GEN,SA)198101-198108

main82210-89418iLN30,40..RHD..T1..(GEN,SA)198101-198108

W/CYCLONE AIRCLEANER

main82210-89419iLN40..ARL198101-198108

main82210-89420iLN40..5H..ECB198101-198108

main82210-89421iLN40..RHD..TW198101-198108

main82210-89422iLN40..RHD..TW198101-198108

W/CYCLONE AIRCLEANER

main82210-89423iLN40..GEN..ECB..IV3198102-198108

W/*IW

main82210-89424iLN40..GEN..ECB..IV3198102-198108

W/CYCLONE AIRCLEANER & *IW

main82210-95127iRN36,46..RHD..T1..GEN197901-198008

main82210-95128iRN36,46..LHD..T1..GEN197901-198008

main82210-95129iRN36..ARL;RN46..ARL..IV3197901-198008

main82210-95134iRN36,46..RHD..EUR197901-198008

main82210-95135iRN36,46..LHD..EUR197901-198008

main82210-95143iRN36..RHD..GEN..CBU197901-198008

main82210-95144iRN36,46..LHD..GEN197901-198008

W/TAPE PLAYER

main82210-95151iRN46..RHD..TW198001-198008

main82210-95152iRN46..LHD..TW198001-198008

main82210-95167iRN36,46..RHD..T1..GEN198008-198108

main82210-95168iRN36,46..LHD..T1..GEN198008-198108

main82210-95169iRN36..ARL;RN46..ARL..IV3198008-198108

main82210-95170iRN36,46..RHD..EUR198008-198108

main82210-95171iRN36,46..LHD..EUR198008-198108

main82210-95172iRN36..RHD..GEN..CBU198008-198108

main82210-95173iRN36..LHD..GEN198008-198108

W/TAPE PLAYER

main82210-95175iRN46..RHD..TW198008-198108

main82210-95176iRN46..LHD..TW198008-198108

main82210-95180iLN36,46..RHD;RN46..ARL..CBU198103-198108

main82270-95110iLN36,46..LHD..T1198103-198108

main82270-95111iLN46..TW198103-198108

82141WIRE, INSTRUMENT PANEL

main82142-95110iRN36;RN46..ARL..IV3;RN46..EUR,GEN,ME;LN46..T1..ARL..CBU198108-198307

main82142-95111iRN36,46..GEN,ME,SA; RN36,46..LHD..EUR198108-198307

W/TACHO METER

82201WIRING SUB-ASSY, INSTRUMENT PANEL

main82201-89101iLN30197909-198005

W/SEGIMENTER BUZZER,THAILAND

82210CFUSIBLE LINK

main90982-08046iLN46..TW;LN46..T1..IV3;RN46..ARL..CBU;LN46..T1..GEN..CBU;LN3#,40..ARL,GEN,SA197909-198403

main90982-08078iRN3#,40,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197808-198403

0.5G & 0.85R

main90982-08092iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198008

W/AMMETER

82210DFUSIBLE LINK

main90982-08079iRN3#,40,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197808-198403

W/O HEADLAMP CLEANER

main90982-08093iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198008

W/AMMETER

main90982-08156iRN30,40..4F..EUR198008-198307

0.5G & 0.3P,W/HEADLAMP CLEANER

main90982-08173iLN40..EUR198108-198307

1.25B & 1.0Y

82210EFUSIBLE LINK

main90982-08116iLN30,40197909-198108

main90982-08155iLN40..5F..ECB..CBU198008-198108

W/HEADLAMP CLEANER

main90982-08175iLN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN)198108-198403

0.5G & 0.3P

main90982-08176iLN36,4#..LHD..EUR198108-198307

0.5G & 0.3P,W/HEADLAMP CLEANER

82219WIRE, THERMO SENSOR

main82219-22020iRN31,36,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197808-198312

main82219-89101iRN30,40..ARL197808-198307

NEW SOUTH WALES SPEC

82259WIRE, DISTRIBUTOR

main82259-89101iRN30,40197808-197911

82272WIRE, AMMETER

main82272-95110iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198008

82272AWIRE, VOLTMETER

main82272-89101iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA198008-198307

82310WIRING ASSY, TO BACK UP LAMP SWITCH

main82125-89102iLN30,40..5F..(GEN,SA)198211-198403

main82439-89104iLN30,40..5F,5H197911-198010

main82439-89105iLN30,40..5F..(GEN,SA)198108-198211

82371WIRE, WIPER RELAY

main82371-89101iRN30,40..4H..RCB..CBU197808-197909

HONG KONG SPEC

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010908034

main90109-08034

9011906005

main90119-06005

9011906126

main90119-06126

9011908063

main90119-08063

9161141020

main91611-41020

9165640616

main91656-40616

9451200800

main94512-00800

25 parts on this diagram · 4 diagrams in section
