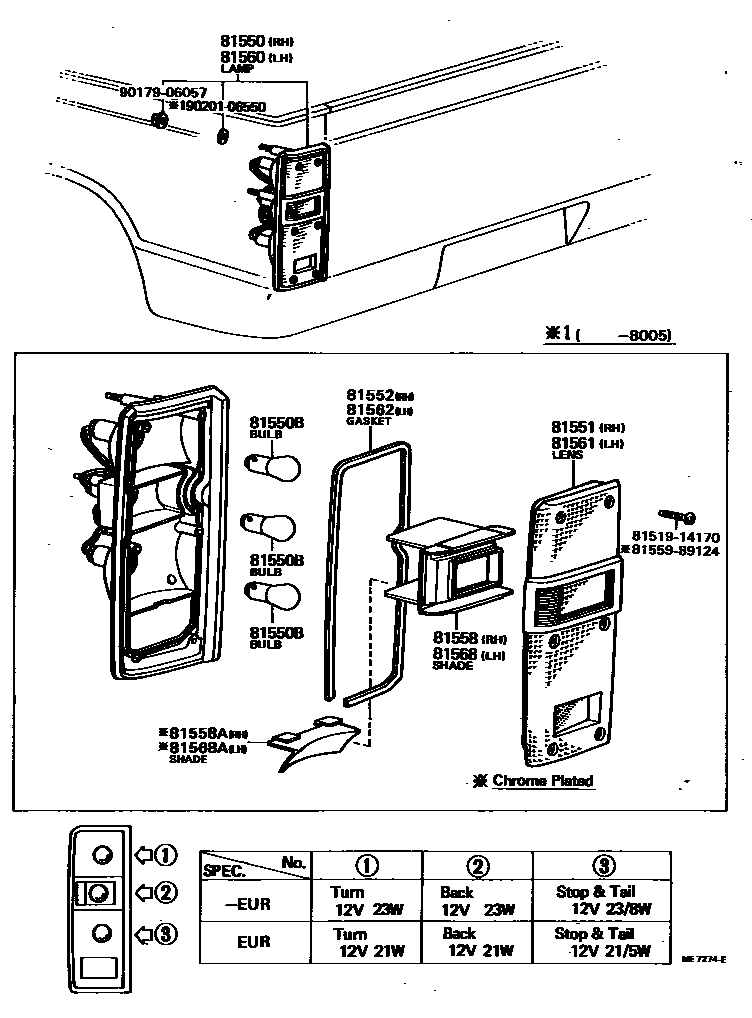

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-29407198201-198403

main81550-39495197808-198008

main81550-39505197808-198008

main81550-39515197808-198008

main81550-39585197908-198008

main81550-39605198008-198307

main81550-39615198008-198307

main81550-39625198008-198403

main81550-39645198008-198307

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210197808-198307

main99132-11230197808-198403

main99132-21210197808-198403

main99132-21230197808-198403

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060198201-198403

main81551-89121197808-198307

main81551-89122197808-198403

main81551-89123197908-198307

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-89122197808-198403

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-25060198201-198403

main81557-89122197808-198403

main81557-89124197908-198307

81558ASHADE, REAR COMBINATION LAMP, NO.2 RH

main81557-25060198201-198403

main81557-89123197908-198307

81560LAMP ASSY, REAR COMBINATION, LH

main81560-29397198201-198403

main81560-39465197808-198008

main81560-39475197808-198008

main81560-39485197808-198008

main81560-39545197908-198008

main81560-39565198008-198307

main81560-39575198008-198307

main81560-39585198008-198403

main81560-39605198008-198307

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040198201-198403

main81561-89121197808-198307

main81561-89122197808-198403

main81561-89123197908-198307

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-89122197808-198403

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-25060198201-198403

main81557-89122197808-198403

main81557-89124197908-198307

81568ASHADE, REAR COMBINATION LAMP, NO.2 LH

main81557-25060198201-198403

main81567-89120197908-198307

8151914170BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-14170

8155989124MOULDING, REAR COMBINATION LAMP, RH

main81559-89124

9017906057

main90179-06057

9020106550

main90201-06550

15 parts on this diagram · 2 diagrams in section
