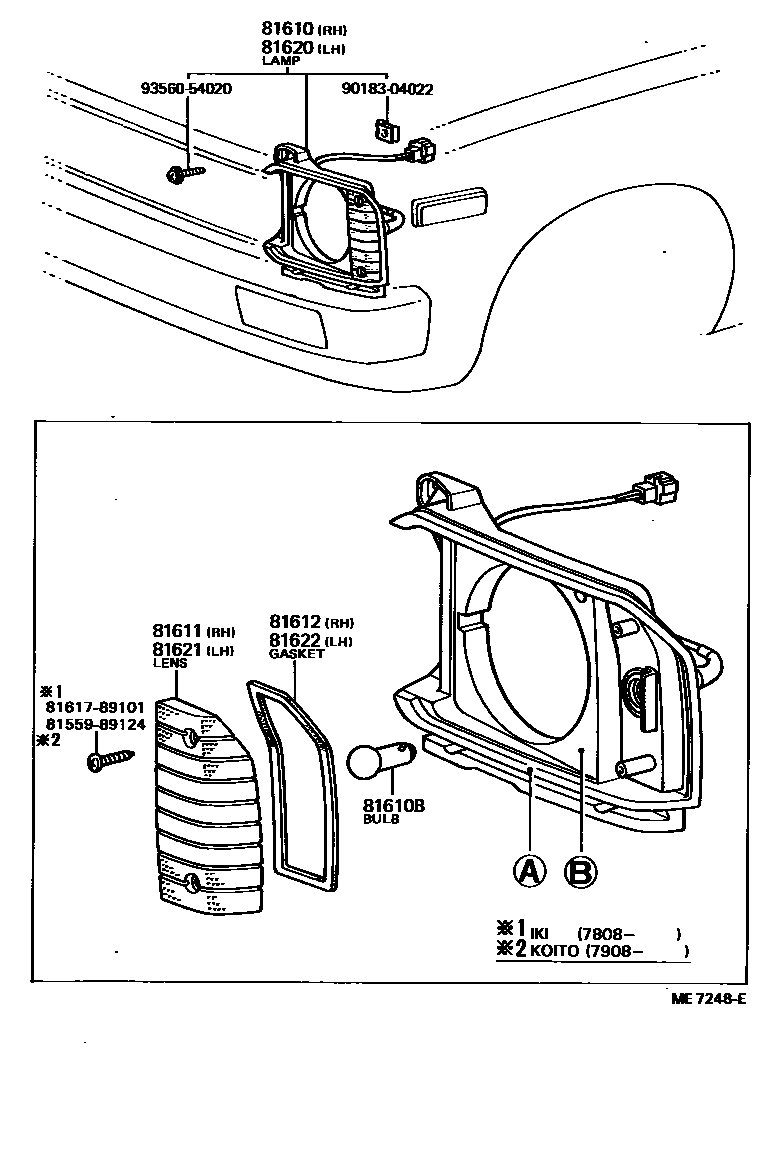

FRONT CLEARANCE LAMP

0001 1 0002 1

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-39145iLN30,40,RN31,41..STD197901-198108

A & B=BLACK-M,IKI

main81610-39155iRN31,41..DLX197808-198108

A=BLACK-M /B=DARK GRAY-M,IKI

main81610-39165iRN31,41..SR5197808-198108

A & B=DARK GRAY-M,IKI

main81610-39175iLN3#,4#,RN3#,4#..LHD..GEN197808-198108

A & B=CHROME PLATED

main81610-39215iLN40,RN30,40..EUR197808-198108

IKI

main81610-39235iLN36,46,RN36,46..ARL,GEN197901-198108

main81610-39255iRN36,46..EUR197901-198108

main81610-39325iLN30,40,RN31,41..STD; RN30,40..ARL,GEN,PHL,SA197908-198108

A & B=BLACK-M,KOITO

main81610-39335iRN31,41..DLX197908-198108

A=BLACK-M /B=DARK GRAY-M,KOITO

main81610-39345iRN31,41..SR5197908-198108

A & B=DARK GRAY-M,KOITO

main81610-39395iLN40,RN30,40..EUR197908-198108

KOITO

main81610-39455iLN36,46,RN36,46..ARL,GEN,SA198108-198307

A=DARK GRAY-M /B=SILVER-M

main81610-39485iLN30,40,RN30,40..STD..(ARL,GEN,PHL)198208-198403

A & B=BLACK-M,IKI

main81610-39495iRN31,41..DLX..(GEN,SA)198108-198208

A=GRAY-M /B=SILVER-M,IKI

main81610-39515iRN31,41..SR5..GEN..ECB198108-198307

A=DARK GRAY-M /B=CHROME,IKI

main81610-39525iRN41..SR5..ARL198208-198307

A & B=CHROME PLATED

main81610-39565iLN40,RN30,40..EUR198108-198208

IKI

main81610-39575iLN30,40,RN30,40..ARL,GEN,PHL,SA198108-198208

A & B=BLACK-M,KOITO

main81610-39585iRN31,41..DLX..GEN198208-198307

A=GRAY-M /B=SILVER-M,KOITO

main81610-39605iLN36,46,RN36,46..GEN; RN31,41..SR5..GEN..ECB198108-198307

A=DARK GRAY-M /B=CHROME; A=DARK GRAY-M /B=CHROME,KOITO

main81610-39615iLN30,40,RN30,31,40,41..LHD..(GEN,ME); RN31,41..RHD..(DLX,SR5)..GEN; RN36,46..ME198108-198307

A & B=CHROME PLATED,KOITO

main81610-39655iLN36,4#,RN30,36,40,46..EUR198108-198208

KOITO

main81610-39745iLN40,RN30,40..EUR198208-198307

IKI

main81610-39755iLN36,4#,RN30,36,40,46..EUR198208-198307

KOITO

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-11050×2iLN3#,4#,RN3#,4#197808-198403

12V 5W,12V 5W

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-89101iLN3#,4#,RN3#,4#197808-198108

IKI

main81611-89111iLN30,40,RN30,31,40,41197908-198108

KOITO

main81611-89121iLN30,40,RN30,31,40,41198108-198403

IKI

main81611-89130iLN3#,4#,RN3#,4#198108-198403

KOITO

81612GASKET, PARKING AND CLEARANCE LAMP LENS, RH

main81612-89101iLN3#,4#,RN3#,4#197808-198108

IKI

main81612-89111iLN30,40,RN30,31,40,41197908-198108

KOITO

main81612-89130iLN3#,4#,RN3#,4#198108-198403

KOITO

main81622-89121iLN30,40,RN30,31,40,41198108-198403

IKI

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-39145iLN30,40,RN31,41..STD197901-198108

A & B=BLACK-M,IKI

main81620-39155iRN31,41..DLX197808-198108

A=BLACK-M /B=DARK GRAY-M,IKI

main81620-39165iRN31,41..SR5197808-198108

A & B=DARK GRAY-M,IKI

main81620-39175iLN3#,4#,RN3#,4#..LHD..GEN197808-198108

A & B=CHROME PLATED

main81620-39215iLN40,RN30,40..EUR197808-198108

IKI

main81620-39235iLN36,46,RN36,46..ARL,GEN197901-198108

main81620-39255iRN36,46..EUR197901-198108

main81620-39325iLN30,40,RN31,41..STD; RN30,40..ARL,GEN,PHL,SA197908-198108

A & B=BLACK-M,KOITO

main81620-39335iRN31,41..DLX197908-198108

A=BLACK-M /B=DARK GRAY-M,KOITO

main81620-39345iRN31,41..SR5197908-198108

A & B=DARK GRAY-M,KOITO

main81620-39395iLN40,RN30,40..EUR197908-198108

KOITO

main81620-39455iLN36,46,RN36,46..ARL,GEN,SA198108-198307

A=DARK GRAY-M /B=SILVER-M

main81620-39485iLN30,40,RN30,40..STD..(ARL,GEN,PHL)198208-198403

A & B=BLACK-M,IKI

main81620-39495iRN31,41..DLX..(GEN,SA)198108-198208

A=GRAY-M /B=SILVER-M,IKI

main81620-39515iLN30,40,RN30,40,41..SA198208-198312

IKI

main81620-39525iLN30,40,RN30,31,40,41..LHD..(GEN,ME); RN31,41..RHD..(DLX,SR5)..GEN198108-198307

A & B=CHROME PLATED,IKI

main81620-39565iLN40,RN30,40..EUR198108-198208

IKI

main81620-39575iLN30,40,RN30,40..ARL,GEN,PHL,SA198108-198208

A & B=BLACK-M,KOITO

main81620-39585iRN31,41..DLX..GEN198208-198307

A=GRAY-M /B=SILVER-M,KOITO

main81620-39605iLN36,46,RN36,46..GEN; RN31,41..SR5..GEN..ECB198108-198307

A=DARK GRAY-M /B=CHROME; A=DARK GRAY-M /B=CHROME,KOITO

main81620-39615iLN30,40,RN30,31,40,41..LHD..(GEN,ME); RN31,41..RHD..(DLX,SR5)..GEN; RN36,46..ME198108-198307

A & B=CHROME PLATED,KOITO

main81620-39655iLN36,4#,RN30,36,40,46..EUR198108-198208

KOITO

main81620-39745iLN40,RN30,40..EUR198208-198307

IKI

main81620-39755iLN36,4#,RN30,36,40,46..EUR198208-198307

KOITO

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-89101iLN3#,4#,RN3#,4#197808-198108

IKI

main81621-89111iLN30,40,RN30,31,40,41197908-198108

KOITO

main81621-89121iLN30,40,RN30,31,40,41198108-198403

IKI

main81621-89130iLN3#,4#,RN3#,4#198108-198403

KOITO

81622GASKET, PARKING AND CLEARANCE LAMP LENS, LH

main81612-89111iLN30,40,RN30,31,40,41197908-198108

KOITO

main81612-89130iLN3#,4#,RN3#,4#198108-198403

KOITO

main81622-89101iLN3#,4#,RN3#,4#197808-198108

IKI

main81622-89121iLN30,40,RN30,31,40,41198108-198403

IKI

8155989124MOULDING, REAR COMBINATION LAMP, RH

main81559-89124

8161789101MOULDING, PARKING AND CLEARANCE LAMP, RH

main81617-89101

9018304022

main90183-04022

9356054020

main93560-54020

11 parts on this diagram · 2 diagrams in section
