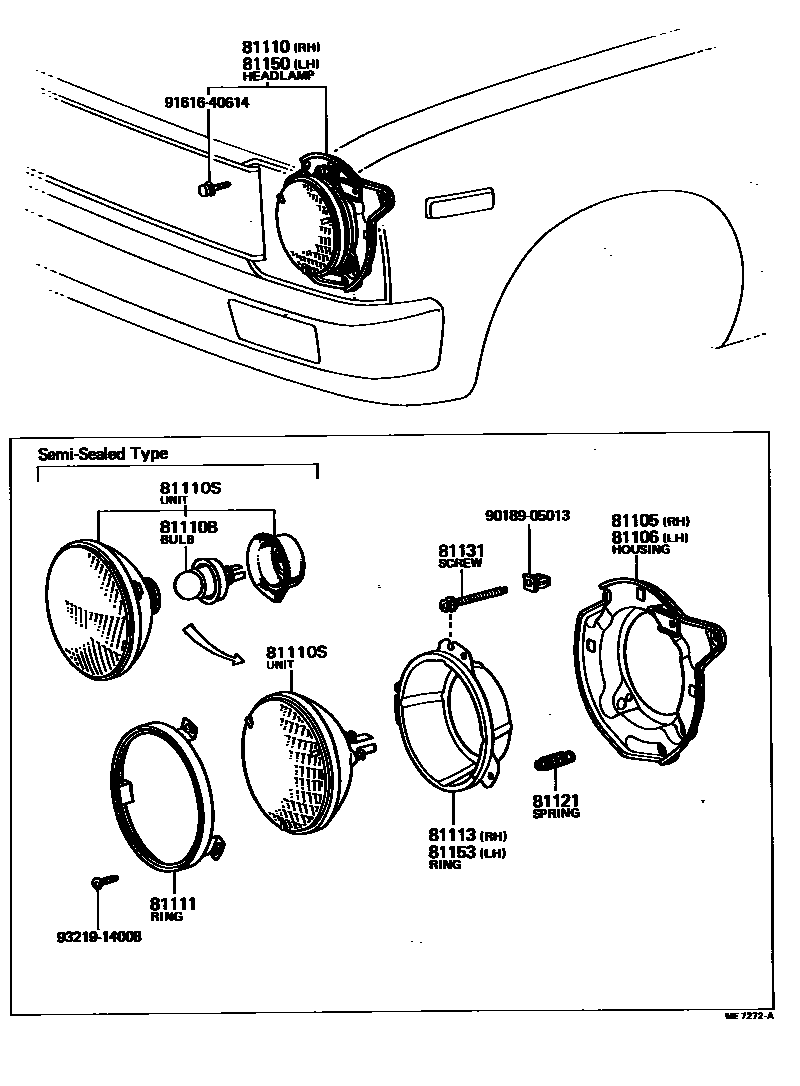

HEADLAMP

0001 1 0002 1

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-89117iLN3#,4#,RN3#,4#197808-198108

main81105-89125iLN3#,4#,RN3#,4#198108-198403

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-89117iLN3#,4#,RN3#,4#197808-198108

main81106-89125iLN3#,4#,RN3#,4#198108-198403

81110HEADLAMP ASSY, RH

main81110-39465iLN3#,4#,RN3#,4#..RHD197808-198108

main81110-39475iLN3#,4#,RN3#,4#..LHD..(GEN,PHL)197808-198108

main81110-39485iLN3#,4#,RN3#,4#..RHD..(EUR,GEN)197808-198108

SEMI-SEALED,WHITE

main81110-39495iLN3#,4#,RN3#,4#..LHD..(EUR,GEN)197808-198108

SEMI-SEALED,WHITE

main81110-39505iLN3#,4#,RN3#,4#..LHD..(EUR,GEN)197808-198108

SEMI-SEALED,YELLOW

main81110-39625iLN40,RN30,40..LHD..EUR198008-198108

WHITE,W/HEADLAMP CLEANER

main81110-39635iLN40,RN30,40..LHD..EUR198008-198108

YELLOW,W/HEADLAMP CLEANER

main81110-39725iLN46,RN46..RHD..EUR198108-198307

SEALED

main81110-39735iLN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA)198108-198307

SEALED HALOGEN

main81110-39745iLN3#,4#,RN3#,4#..LHD..(GEN,ME,PHL)198108-198307

SEALED

main81110-39755iLN3#,4#,RN3#,4#..LHD..(GEN,ME)198108-198307

SEALED HALOGEN

main81110-39765iRN36..LHD..GEN;LN3#,4#,RN30,31,4#..LHD..(EUR,GEN)198108-198307

*SSB,WHITE

main81110-39775iLN36,4#,RN30,36,40,46..LHD..EUR198108-198307

*SSB,HALOGEN,WHITE

main81110-39785iRN41..RHD..GEN..ECB;LN3#,4#,RN30,36,40,46..RHD..STD..(EUR,GEN)198108-198307

*SSB,WHITE

main81110-39795iLN4#,RN40,46..RHD..EUR198108-198307

*SSB,HALOGEN,WHITE

main81110-39805iLN3#,4#,RN3#,4#..LHD..(EUR,GEN)198108-198307

*SSB,HALOGEN,YELLOW

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13013×2iLN3#,4#,RN3#,4#..EUR,GEN197808-198108

12V 45/40W,WHITE,12V 45/40W,WHITE

main90981-13014×2iLN3#,4#,RN3#,4#..LHD..(EUR,GEN)197808-198108

12V 45/40W,YELLOW,12V 45/40W,YELLOW

main90981-13015×2iLN36,4#,RN30,36,40,46..EUR198108-198307

12V 60/55W,*HAL *WH,12V 60/55W,*SSB,HALOGEN,WHITE

main90981-13016×2iLN3#,4#,RN3#,4#..LHD..(EUR,GEN)198108-198307

12V 60/55W,*HAL *YE,12V 45/40W,*SSB,HALOGEN,YELLOW

81110SSEALED BEAM UNIT, NO.1

main90981-01017×2iLN3#,4#,RN3#,4#..LHD..(EUR,GEN)197808-198108

12V 45/40W,*WSB,SEMI-SEALED,WHITE

main90981-01018×2iLN3#,4#,RN3#,4#..LHD..(EUR,GEN)197808-198108

12V 45/40W,*YSB,SEMI-SEALED,YELLOW

main90981-01022×2iLN3#,4#,RN3#,4#..RHD197808-198108

12V 60/50W,*WB,12V 60/50W

main90981-01023×2iLN3#,4#,RN3#,4#..LHD..(GEN,PHL)197808-198108

12V 60/50W,*WB,12V 60/50W

main90981-01028×2iLN3#,4#,RN3#,4#..RHD..(EUR,GEN)197808-198108

12V 45/40W,*WSB,SEMI-SEALED,WHITE

main90981-01029×2iLN40,RN30,40..LHD..EUR198008-198108

12V 45/40W,*WSB,W/HEADLAMP CLEANER,WHITE

main90981-01042×2iLN40,RN30,40..LHD..EUR198008-198108

12V 45/40W,*YSB,W/HEADLAMP CLEANER,YELLOW

main90981-04001×2iLN46,RN46..RHD..EUR198108-198307

12V 65/55W,*WB,12V 65/55W

main90981-04004×2iLN3#,4#,RN3#,4#..LHD..(GEN,ME,PHL)198108-198307

12V 65/55W,*WB,12V 65/55W

main90981-04005×2iRN41..RHD..GEN..ECB;LN3#,4#,RN30,36,40,46..RHD..STD..(EUR,GEN)198108-198307

12V 45/40W,*WSB,12V 45/40W,*SSB,WHITE

main90981-04006×2iRN36..LHD..GEN;LN3#,4#,RN30,31,4#..LHD..(EUR,GEN)198108-198307

12V 45/40W,*WSB,12V 45/40W,*SSB,WHITE

main90981-04008×2iLN36,4#,RN30,36,40,46..LHD..EUR198108-198307

12V 60/55W,*HWS,12V 60/55W,*SSB,HALOGEN,WHITE

main90981-04009×2iLN3#,4#,RN3#,4#..LHD..(EUR,GEN)198108-198307

12V 60/55W,*HYS,12V 45/40W,*SSB,HALOGEN,YELLOW

main90981-04011×2iLN4#,RN40,46..RHD..EUR198108-198307

12V 60/55W,*HWS,12V 60/55W,*SSB,HALOGEN,WHITE

main90981-04015×2iLN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA)198108-198307

12V 65/55W,*WB,12V 65/55W,SEALED HALOGEN

main90981-04016×2iLN3#,4#,RN3#,4#..LHD..(GEN,ME)198108-198307

12V 65/55W,*WB,*HAL,12V 65/55W,SEALED HALOGEN

81111RING, SEALED BEAM RETAINING

main81111-16020×2iLN3#,4#,RN3#,4#198108-198403

main81111-89117×2iLN3#,4#,RN3#,4#197808-198108

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-89125iLN3#,4#,RN3#,4#198108-198403

main81153-95188iLN3#,4#,RN3#,4#197808-198108

81121SPRING, HEADLAMP TENSION

main81121-16020×2iLN3#,4#,RN3#,4#198108-198403

main81121-62010×2iLN3#,4#,RN3#,4#197808-198108

81131SCREW, HEADLAMP ADJUSTING

main81131-10031×4iLN3#,4#,RN3#,4#197808-198108

main81131-20360×4iLN3#,4#,RN3#,4#198108-198403

81150HEADLAMP ASSY, LH

main81150-39465iLN3#,4#,RN3#,4#..RHD197808-198108

main81150-39475iLN3#,4#,RN3#,4#..LHD..(GEN,PHL)197808-198108

main81150-39485iLN3#,4#,RN3#,4#..RHD..(EUR,GEN)197808-198108

SEMI-SEALED,WHITE

main81150-39495iLN3#,4#,RN3#,4#..LHD..(EUR,GEN)197808-198108

SEMI-SEALED,WHITE

main81150-39505iLN3#,4#,RN3#,4#..LHD..(EUR,GEN)197808-198108

SEMI-SEALED,YELLOW

main81150-39625iLN40,RN30,40..LHD..EUR198008-198108

WHITE,W/HEADLAMP CLEANER

main81150-39635iLN40,RN30,40..LHD..EUR198008-198108

YELLOW,W/HEADLAMP CLEANER

main81150-39725iRN41..RHD..(DLX,STD);RN41..RHD..SR5..(GEN,SA);LN3#,4#,RN3#,40,46..RHD..(ARL,GEN,SA)198108-198403

SEALED

main81150-39735iLN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA)198108-198307

SEALED HALOGEN

main81150-39745iLN3#,4#,RN3#,4#..LHD..(GEN,ME,PHL)198108-198307

SEALED

main81150-39755iLN3#,4#,RN3#,4#..LHD..(GEN,ME)198108-198307

SEALED HALOGEN

main81150-39765iRN36..LHD..GEN;LN3#,4#,RN30,31,4#..LHD..(EUR,GEN)198108-198307

*SSB,WHITE

main81150-39775iLN36,4#,RN30,36,40,46..LHD..EUR198108-198307

*SSB,HALOGEN,WHITE

main81150-39785iRN41..RHD..GEN..ECB;LN3#,4#,RN30,36,40,46..RHD..STD..(EUR,GEN)198108-198307

*SSB,WHITE

main81150-39795iLN4#,RN40,46..RHD..EUR198108-198307

*SSB,HALOGEN,WHITE

main81150-39805iLN3#,4#,RN3#,4#..LHD..(EUR,GEN)198108-198307

*SSB,HALOGEN,YELLOW

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-89117iLN3#,4#,RN3#,4#197808-198108

main81153-89125iLN3#,4#,RN3#,4#198108-198403

9018905013

main90189-05013

9161640614

main91616-40614

9321914008

main93219-14008

14 parts on this diagram · 2 diagrams in section
