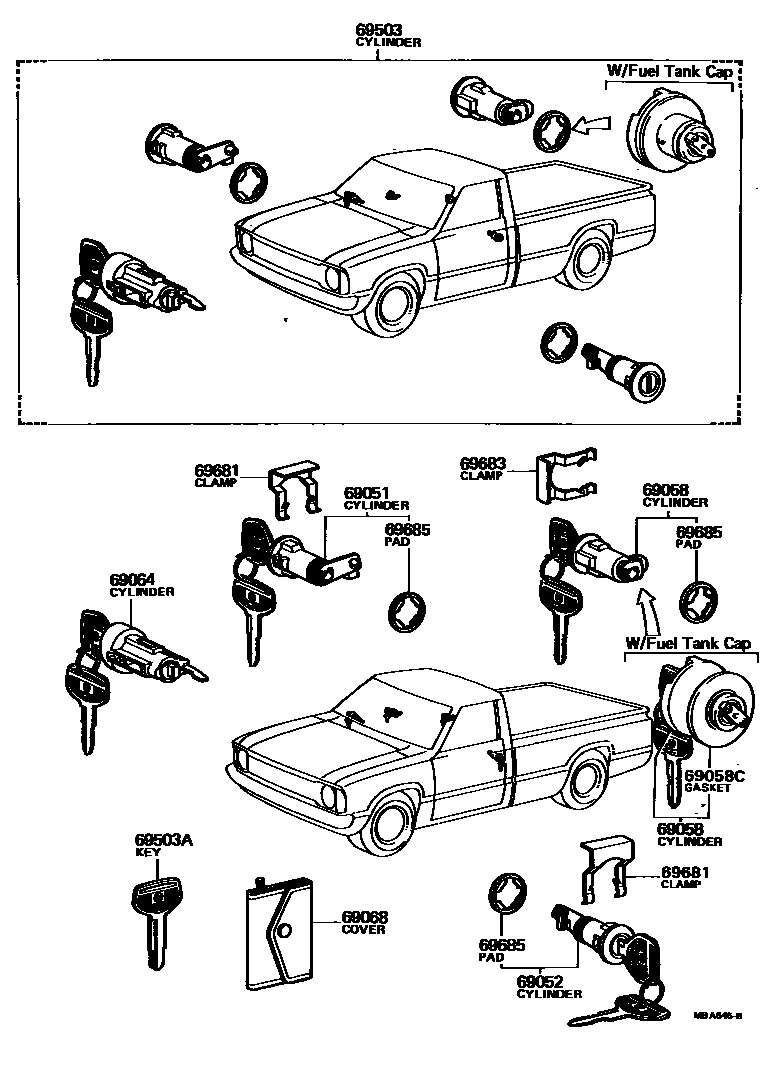

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-89106iLN3#,4#,RN3#,4#197808-198108

sub69051-19085

main69051-89107iLN3#,4#,RN3#,4#198108-198403

sub69051-89109

main69051-89108iLN36,4#,RN30,36,40,46..EUR198208-198307

W/*STL

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-89106iLN3#,4#,RN3#,4#197808-198108

sub69052-19085

main69052-89107iLN3#,4#,RN3#,4#198108-198403

sub69052-89109

main69052-89108iLN36,4#,RN30,36,40,46..EUR198208-198307

W/*STL

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-89101iLN3#,4#,RN3#,4#..(ARL,EUR,GEN,ME,PHL)..CBU197808-198403

main69058-89102iLN30,40..SA198108-198312

sub69058-25010

main69058-89104iLN36,4#,RN30,36,40,46..EUR..CBU198208-198307

W/*STL

main69058-95400iRN30,4#..SA198108-198312

sub69058-60071

main69058-95400iRN46..RHD..T1..GEN..CBU197904-198108

W/FUEL TANK CAP

sub69058-60071

69058CGASKET, FUEL FILLER LID CYLINDER

main77316-12031iLN30,40,RN30,4#..SA198108-198312

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12011iLN30,40,RN30,31,40,41..ARL,EUR,GEN,PHL,SA197808-198208

W/*STL

main69057-14010iRN31,41..LHD..(DLX,SR5)..GEN198108-198307

W/*STL & *TIS

sub69057-22020

main69057-19015iRN30,31,40,41..ME198208-198307

NEIMAN

main69057-89101iRN31,41..ME197808-198307

W/O *STL

main69057-89103iLN36,4#,RN30,36,40,46..EUR198208-198307

W/*STL

main69057-89106iLN36,46,RN36,46..ARL,GEN,ME198208-198403

W/*STL

sub69057-89102

69068COVER SUB-ASSY, KEY

main84041-89102iLN3#,4#,RN3#,4#197808-198403

69503CYLINDER SET, LOCK

main69005-89105iRN40..4F..ECB..IV3;LN3#,4#,RN3#,4#..STD..CBU197808-198108

W/O *STL

main69005-89106iLN3#,4#,RN3#,4#..CBU197808-198108

W/*STL

main69005-89107iLN30,4#,RN3#,4#..STD..IV197808-198108

W/O *STL & FUEL TANK CAP

main69005-89108iLN30,4#,RN3#,4#..IV197808-198108

W/*STL,W/O FUEL TANK CAP

main69005-89111iLN30,40,RN30,40..SA197902-198108

W/O *STL,W/FUEL TANK CAP

main69005-89112iLN30,40,RN30,40..SA197902-198108

W/*STL & FUEL TANK CAP

main69005-89114iLN30,40..SA198011-198108

W/O *STL,W/FUEL TANK CAP

main69005-89115iLN30,40..SA198011-198108

W/*STL & FUEL TANK CAP

main69005-89116iLN40..TW..IV3198108-198403

W/O *STL

main69005-89117iLN30,40,RN30,31,40,41..(ARL,EUR,GEN,ME,PHL)..CBU198108-198403

W/*STL

main69005-89119iRN30,40,41..SA198108-198312

W/*STL

main69005-89122iLN30,4#,RN30,36,40,46..T1..(EUR,GEN)..IV3198108-198307

W/O *STL

main69005-89123iLN30,4#,RN3#,4#..T1..IV3198108-198307

W/*STL

main69005-89126iLN30,40..SA198108-198312

main69005-89129iLN30,40,RN30,31,40,41..LHD..GEN..IV3198108-198307

W/*TIS

main69005-89130iLN36,46,RN36,46..(ARL,GEN)..CBU198108-198307

W/*TIS

main69005-89131iLN36,4#,RN30,36,40,46..EUR..CBU198208-198307

W/*STL

main69005-89132iRN30,40..EUR..IV3198208-198307

W/*STL

main69005-95112iRN46..SA198108-198307

69503AKEY, BLANK

main69515-12050iRN30,31,40,41..ME198208-198307

MASTER KEY,NEIMAN

main90999-00057iRN41..LHD..(DLX,SR5);LN36,46,RN3#,40,46..LHD..T1..(GEN,ME)197808-198403

GLOVE COMPARTMENT LOCK

sub90999-00067

main90999-00066iLN3#,4#,RN3#,4#197808-198403

MASTER KEY

sub90999-00085

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-20010iRN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3197808-197907

sub69681-20040

main69681-20040iRN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41197907-198307

main69681-89102iLN30,40,RN30,31,40,41198004-198403

69683CLAMP, FUEL LOCK CYLINDER

main69681-20010iRN3#,40,41..CBU;RN46..(EUR,GEN)..CBU197808-197907

sub69681-20040

main69681-20040iRN46..(EUR,GEN)..CBU;LN30,40,RN3#,40,41..CBU197907-198307

main69681-89102iLN30,40,RN30,31,40,41..(ARL,EUR,GEN,ME,PHL)..CBU198004-198403

69685PAD, LOCK CYLINDER

main69513-12020iLN3#,4#,RN3#,4#..(ARL,EUR,GEN,ME,PHL)..CBU198208-198403

FUEL LOCK

main69685-12010iLN3#,4#,RN3#,4#197808-198403

DOOR LOCK

main69685-95400iLN30,40..SA197808-198208

FUEL LOCK

11 parts on this diagram · 2 diagrams in section
