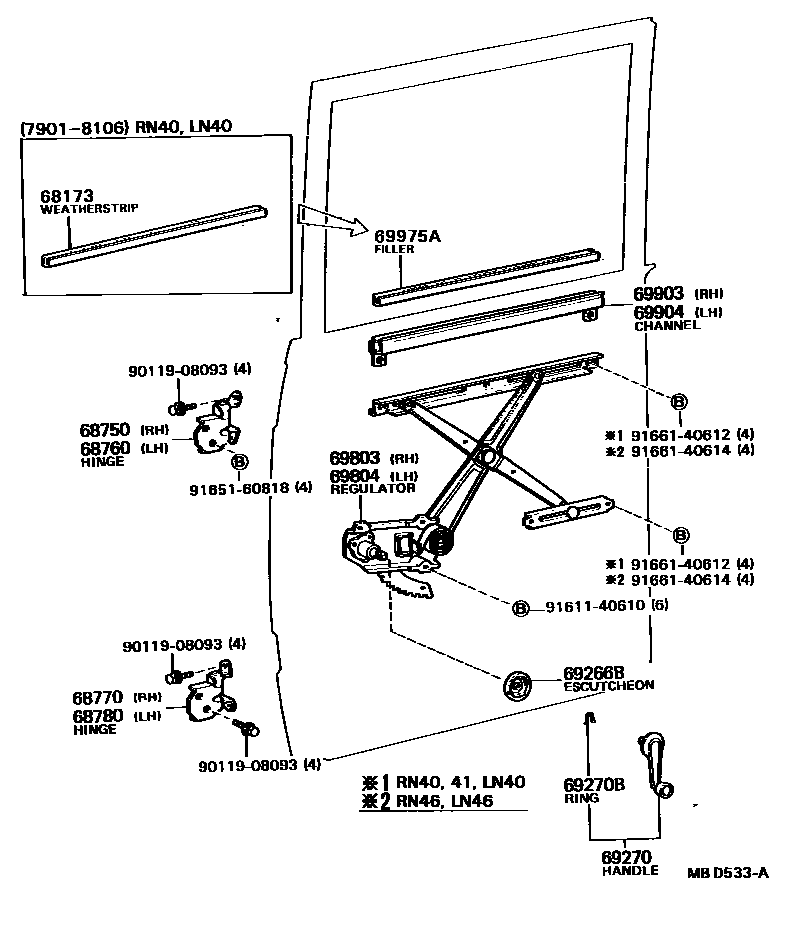

REAR DOOR WINDOW REGULATOR & HINGE

68173WEATHERSTRIP, REAR DOOR GLASS CHANNEL

main68173-89103×4iLN40,RN40..TW197901-198106

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-89101iLN4#,RN4#..TW197901-198307

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-89101iLN4#,RN4#..TW197901-198307

68770HINGE ASSY, REAR DOOR, LOWER RH

main68750-89101iLN4#,RN4#..TW197901-198307

68780HINGE ASSY, REAR DOOR, LOWER LH

main68760-89101iLN4#,RN4#..TW197901-198307

69266BESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR)

main69266-22010×2iLN4#,RN4#..TW197908-198307

main69266-22010-01×2iRN40..TW197901-197908

BLACK,BLACK,TRIM2#

main69266-22010-04×2iRN40..TW197901-197908

BLUE,BLUE,TRIM8#

main69266-22010-05×2iRN40..TW197901-197908

BEIGE,BEIGE,TRIM4#

69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-10040-01×2iLN4#,RN4#..TW197901-198307

BLACK,BLACK,TRIM2#

main69260-10040-04×2iLN4#,RN4#..TW197901-198307

BLUE,BLUE,TRIM8#

main69260-10040-05×2iLN4#,RN40,46..TW197901-198108

BEIGE,BEIGE,TRIM4#

main69260-10040-06iRN40..TW..ME198108-198307

BROWN,BROWN,TRIM4#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iLN4#,RN4#..TW197901-198307

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-89101iLN4#,RN4#..TW197901-198307

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-89101iLN4#,RN4#..TW197901-198307

69903CHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69906-89102iLN4#,RN4#..TW197901-198307

69904CHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-89102iLN4#,RN4#..TW197901-198307

69975AFILLER, REAR DOOR GLASS CHANNEL

main69971-89101×4iLN40,RN40,41..TW198106-198209

main69975-20020×2iLN46,RN46..TW198204-198209

main69975-95110×2iLN46,RN46..TW198001-198204

9011908093

main90119-08093

9161140610

main91611-40610

9165160818

main91651-60818

9166140612

main91661-40612

9166140614

main91661-40614

18 parts on this diagram · 1 diagram in section
