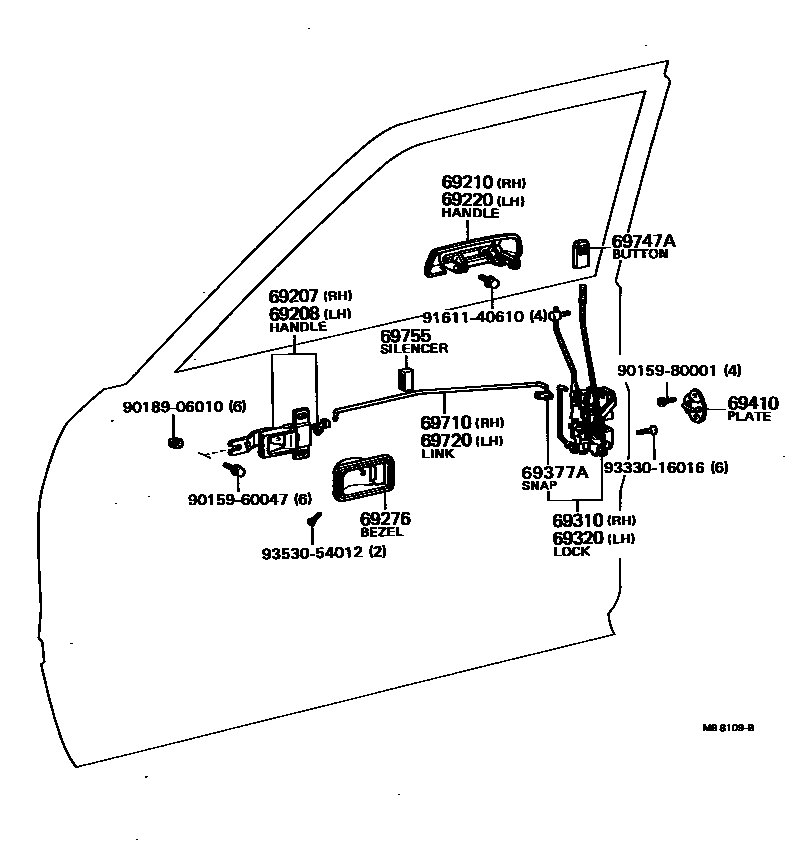

FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-89103-01iLN3#,4#,RN3#,4#197808-198403

BLACK,BLACK,TRIM2#

main69205-89103-04iLN3#,4#,RN3#,4#197808-198403

BLUE,BLUE,TRIM8#

main69205-89103-05iLN3#,4#,RN3#,4#..STD197808-198403

BEIGE,BEIGE,TRIM4#

main69205-89103-16iLN40,RN3#,4#..DLX,SR5198108-198403

BROWN,BROWN,TRIM4#

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-89103-01iLN3#,4#,RN3#,4#197808-198403

BLACK,BLACK,TRIM2#

sub69206-89103

main69206-89103-04iLN3#,4#,RN3#,4#197808-198403

BLUE,BLUE,TRIM8#

sub69206-89103

main69206-89103-05iLN3#,4#,RN3#,4#197808-198403

BEIGE,BEIGE,TRIM4#

sub69206-89103

main69206-89103-16iLN40,RN3#,4#..DLX,SR5198108-198403

BROWN,BROWN,TRIM4#

sub69206-89103

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-89106iLN3#,4#,RN3#,4#197808-198202

main69210-89107iLN3#,4#,RN3#,4#198202-198403

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-89106iLN3#,4#,RN3#,4#197808-198202

main69220-89107iLN3#,4#,RN3#,4#198202-198403

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69276-10012-01iLN36,46,RN36,46198202-198307

BLACK,BLACK,TRIM2#

sub69276-10012

main69276-10012-04iLN36,46,RN36,46198202-198307

BLUE,BLUE,TRIM8#

sub69276-10012

main69276-10012-05iLN36,46,RN36,46..STD198202-198307

BEIGE,BEIGE,TRIM4#

sub69276-10012

main69276-10012-56iRN36,46..ME198202-198307

BROWN,BROWN,TRIM4#

sub69276-10012

main69277-89103-01iLN3#,4#,RN3#,4#197808-198403

BLACK,BLACK,TRIM2#

sub69276-10012

main69277-89103-04iLN3#,4#,RN3#,4#197808-198403

BLUE,BLUE,TRIM8#

sub69276-10012

main69277-89103-05iLN30,40,RN30,31,40,41..STD197808-198403

BEIGE,BEIGE,TRIM4#

sub69276-10012

main69277-89103-36iRN3#,4#..DLX,SR5198108-198403

BROWN,BROWN,TRIM4#

sub69276-10012

69310LOCK ASSY, FRONT DOOR, RH

main69310-89107iLN3#,4#,RN3#,4#197808-198108

main69310-89108iLN3#,4#,RN3#,4#198108-198403

69320LOCK ASSY, FRONT DOOR, LH

main69320-89107iLN3#,4#,RN3#,4#197808-198108

main69320-89108iLN3#,4#,RN3#,4#198108-198403

69377ASNAP, BACK DOOR UPPER LOCK ROD

main69377-30020iLN3#,4#,RN3#,4#197808-198108

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-89103iLN3#,4#,RN3#,4#197808-198403

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-89101iLN3#,4#,RN3#,4#197808-198403

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-89101iLN3#,4#,RN3#,4#197808-198403

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-20020-01iLN3#,4#,RN3#,4#197808-198403

BLACK,BLACK,TRIM2#

sub69741-20020

sub69741-32010

main69741-20020-04iLN3#,4#,RN3#,4#197808-198403

BLUE,BLUE,TRIM8#

sub69741-20020

sub69741-32010

main69741-20020-05iLN3#,4#,RN3#,4#..STD197808-198403

BEIGE,BEIGE,TRIM4#

sub69741-20020

sub69741-32010

main69741-20020-16iLN40,RN3#,4#..DLX,SR5198108-198403

BROWN,BROWN,TRIM4#

sub69741-20020

sub69741-32010

69755SILENCER, FRONT DOOR LOCK LINK

main69759-89102iLN30,40,RN30,31,40,41197808-198403

main69759-95110iLN36,46,RN36,46197901-198307

sub69759-30021

9015960047

main90159-60047

9015980001

main90159-80001

9018906010

main90189-06010

9161140610

main91611-40610

9333016016

main93330-16016

9353054012

main93530-54012

19 parts on this diagram · 1 diagram in section
