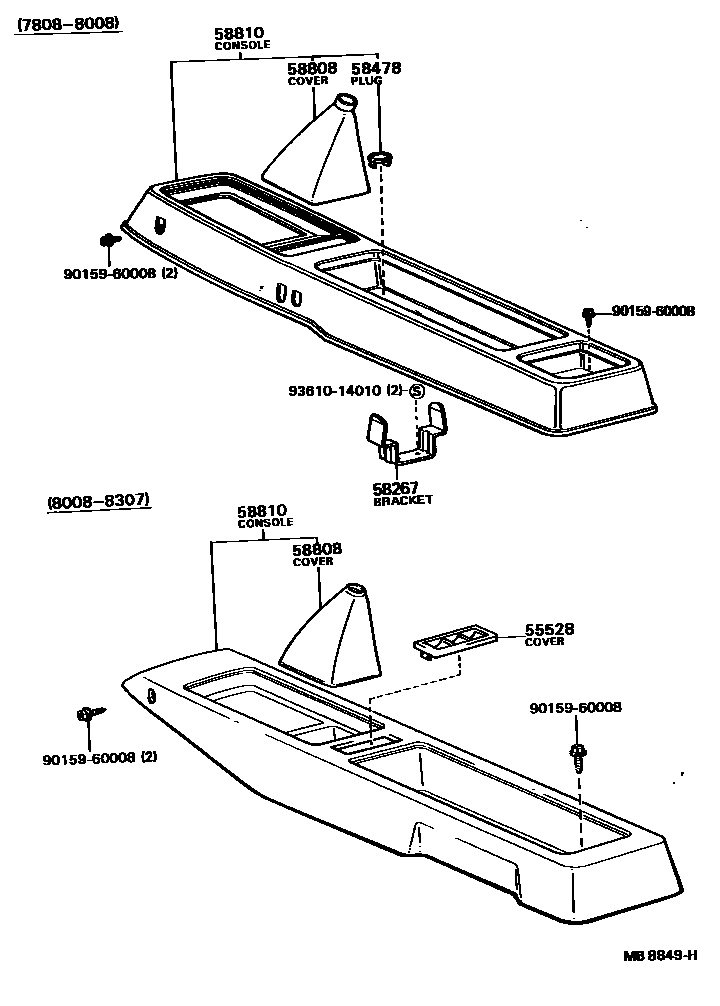

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

55528COVER, AUTO DRIVE OPENING

main55528-14030-01iLN46,RN36,46..ARL198108-198307

BLACK,BLACK,TRIM2#

main55528-14030-04iLN46,RN36,46..ARL198108-198307

BLUE,BLUE,TRIM8#

main55528-14030-06iLN46,RN36,46..ARL198108-198307

BROWN,BROWN,TRIM4#

58267BRACKET, CONSOLE BOX SUPPORT, CENTER

main58996-89101iRN31,41..SR5..CBU197812-198003

58478PLUG, CONSOLE BOX HOLE

main55477-12020-01iRN31,41..SR5..CBU197812-198008

BLACK,BLACK,TRIM2#

main55477-12020-04iRN31,41..SR5197808-197812

BLUE,BLUE,TRIM8#

main55477-12020-05iRN31,41..SR5197808-197812

BEIGE,BEIGE,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-89101iRN31,41..SR5..CBU198007-198008

main58808-89102iRN31,41..SR5..ECB..CBU198008-198108

main58808-89102-01iRN31,41..SR5..(ARL,GEN)..ECB198108-198307

BLACK,BLACK,TRIM2#

main58808-89102-04iRN31,41..SR5..(ARL,GEN)..ECB198108-198307

BLUE,BLUE,TRIM8#

main58808-89102-06iRN31,41..SR5..(ARL,GEN)..ECB198108-198307

BROWN,BROWN,TRIM4#

58810CONSOLE ASSY

main58810-89111-01iRN31,41..SR5197808-197812

BLACK,BLACK,TRIM2#

main58810-89111-04iRN31,41..SR5197808-197812

BLUE,BLUE,TRIM8#

main58810-89111-05iRN31,41..SR5197808-197812

BEIGE,BEIGE,TRIM4#

main58810-89113-01iRN31,41..SR5..ECB..CBU198008-198108

BLACK,BLACK,TRIM2#

main58810-89113-04iRN31,41..SR5..ECB..CBU198008-198108

BLUE,BLUE,TRIM8#

main58810-89113-05iRN31,41..SR5..ECB..CBU198008-198108

BEIGE,BEIGE,TRIM4#

main58810-89114-01iRN31,41..SR5..(ARL,GEN)..ECB198108-198307

BLACK,BLACK,TRIM2#

main58810-89114-04iRN31,41..SR5..(ARL,GEN)..ECB198108-198307

BLUE,BLUE,TRIM8#

main58810-89114-06iRN31,41..SR5..(ARL,GEN)..ECB198108-198307

BROWN,BROWN,TRIM4#

main58811-95110-01iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198008

BLACK,BLACK,TRIM2#

sub90119-06106

main58811-95110-04iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198008

BLUE,BLUE,TRIM8#

sub90119-06106

main58811-95110-05iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198008

BEIGE,BEIGE,TRIM4#

sub90119-06106

main58811-95111-01iRN36;RN46..EUR,GEN;RN46..ARL..IV3198008-198108

BLACK,BLACK,TRIM2#

main58811-95111-04iRN36;RN46..EUR,GEN;RN46..ARL..IV3198008-198108

BLUE,BLUE,TRIM8#

main58811-95111-05iRN36;RN46..EUR,GEN;RN46..ARL..IV3198008-198108

BEIGE,BEIGE,TRIM4#

main58811-95111-06iRN36,46..EUR,GEN,SA198108-198307

BROWN,BROWN,TRIM4#

9015960008

main90159-60008

9361014010

main93610-14010
