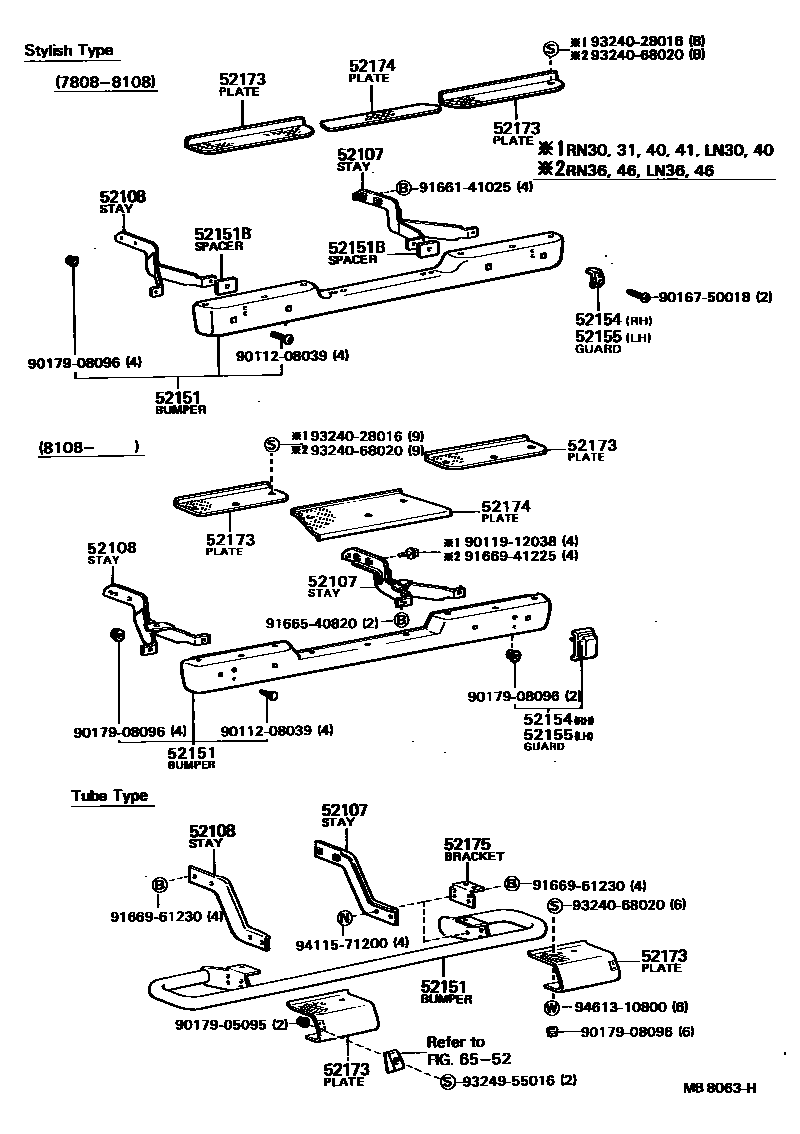

REAR BUMPER & BUMPER STAY

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-89104iLN3#,RN3#..ARL,GEN,PHL,SA197808-198108

STYLISH TYPE

main52015-89105iLN4#,RN4#..ARL,GEN,PHL,SA197808-198108

STYLISH TYPE

main52015-89106iLN30,RN31;RN30..ARL,GEN,ME,PHL; LN36,RN36..GEN,ME; LN36..EUR198108-198307

STYLISH TYPE

main52015-89107iLN40,RN40,41..ARL,GEN,ME,PHL; LN46,RN46..GEN,ME; LN46..EUR198108-198307

STYLISH TYPE

main52181-95110iLN36,RN36197901-198307

TUBE TYPE

main52181-95111iLN46,RN46..ARL,EUR,GEN,ME197901-198307

TUBE TYPE

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-89104iLN3#,RN3#..ARL,GEN,PHL,SA197808-198108

STYLISH TYPE

main52016-89105iLN4#,RN4#..ARL,GEN,PHL,SA197808-198108

STYLISH TYPE

main52016-89106iLN30,RN31;RN30..ARL,GEN,ME,PHL; LN36,RN36..GEN,ME; LN36..EUR198108-198307

STYLISH TYPE

main52016-89107iLN40,RN40,41..ARL,GEN,ME,PHL; LN46,RN46..GEN,ME; LN46..EUR198108-198307

STYLISH TYPE

main52182-95110iLN36,RN36197901-198307

TUBE TYPE

main52182-95111iLN46,RN46..ARL,EUR,GEN,ME197901-198307

TUBE TYPE

52151BUMPER ASSY, REAR

main52105-95110iLN36,46,RN36,46197901-198108

TUBE TYPE,BLACK

main52105-95111iLN36,46,RN36,46..ARL,GEN,ME197901-198307

TUBE TYPE,CHROME PLATED

main52150-39015iLN3#,4#,RN3#,4#..ARL,GEN,PHL,SA197808-198108

STYLISH TYPE

main52150-39025iLN30,RN31;LN40,RN30,40,41..ARL,GEN,ME,PHL; LN36,46,RN36,46..GEN,ME; LN36,46..EUR198108-198307

STYLISH TYPE

52151BSPACER(FOR REAR BUMPER SET)

main52188-89101×2iLN3#,4#,RN3#,4#..ARL,GEN,PHL,SA197808-198108

52154GUARD, BUMPER, REAR RH

main52405-39015iLN30,RN31;LN40,RN30,40,41..ARL,GEN,ME,PHL; LN36,46,RN36,46..GEN,ME; LN36,46..EUR198108-198307

main52461-89101iLN3#,4#,RN3#,4#..ARL,GEN,PHL,SA197808-198108

52155GUARD, BUMPER, REAR LH

main52405-39015iLN30,RN31;LN40,RN30,40,41..ARL,GEN,ME,PHL; LN36,46,RN36,46..GEN,ME; LN36,46..EUR198108-198307

main52461-89101iLN3#,4#,RN3#,4#..ARL,GEN,PHL,SA197808-198108

52173PLATE, REAR BUMPER, SIDE

main52163-95110iLN36,46,RN36,46..ARL,EUR,GEN,ME197901-198307

TUBE TYPE,RH

main52164-95110iLN36,46,RN36,46..ARL,EUR,GEN,ME197901-198307

TUBE TYPE,LH

main52179-89101×2iLN3#,4#,RN3#,4#..ARL,GEN,PHL,SA197808-198108

STYLISH TYPE

main52179-89105×2iLN30,RN31;LN40,RN30,40,41..ARL,GEN,ME,PHL; LN36,46,RN36,46..GEN,ME; LN36,46..EUR198108-198307

STYLISH TYPE

52174PLATE, REAR BUMPER, CENTER

main52179-89102iLN3#,4#,RN3#,4#..ARL,GEN,PHL,SA197808-198108

main52179-89106iLN30,RN31;LN40,RN30,40,41..ARL,GEN,ME,PHL; LN36,46,RN36,46..GEN,ME; LN36,46..EUR198108-198307

52175BRACKET, REAR BUMPER ARM MOUNTING

main52175-95110×2iLN36,46,RN36,46..ARL,EUR,GEN,ME197901-198307

6552REAR BODY FLOOR & FENDER

→ Go to FIG 65-52

9011208039

main90112-08039

9011912038

main90119-12038

9016750018

main90167-50018

9017905095

main90179-05095

9017908096

main90179-08096

9166141025

main91661-41025

9166540820

main91665-40820

9166941225

main91669-41225

9166961230

main91669-61230

9324028016

main93240-28016

9324068020

main93240-68020

9324955016

main93249-55016

9411571200

main94115-71200

9461310800

main94613-10800

24 parts on this diagram · 1 diagram in section
