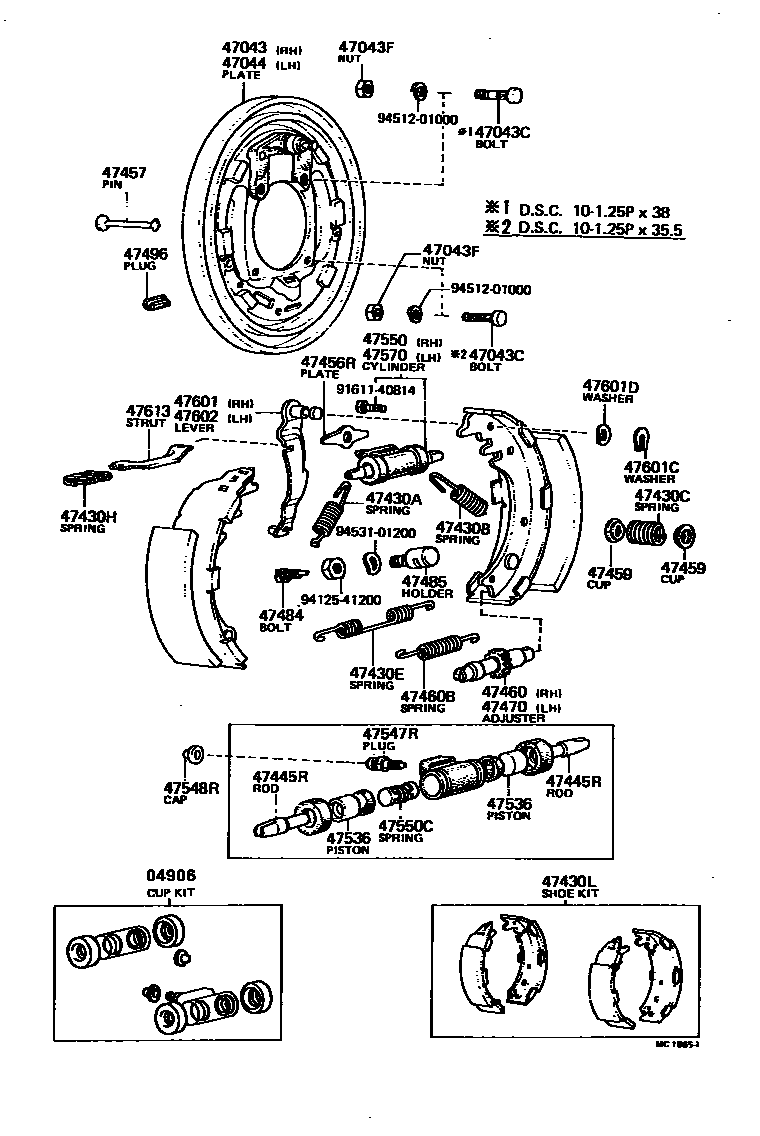

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0004 1 0007 1 0008 1

04906CUP KIT, REAR WHEEL CYLINDER

main04906-30040iLN36,46,RN36,46197901-198307

ID=19.05 WHEEL CYLINDER

main04906-30100iRN41..SR5..ARL197808-198307

ID=22.22 WHEEL CYLINDER

main04906-31010iRN31,41..DLX,STD197808-198108

ID=20.64 WHEEL CYLINDER

main04906-35080iLN30,40,RN30,31,40197808-198403

ID=22.22 WHEEL CYLINDER

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-35041iRN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD197808-198108

FR DRUM BRAKE

sub47043-35042

main47043-35050iRN31,41..RCB;RN31..SR5..IV3;LN40,RN30,40..EUR197808-198108

FR DISC BRAKE

sub47043-35051

main47043-35060iRN41..SR5..ARL197808-198307

sub47043-35061

sub47492-28010

main47043-35070iLN36,46,RN36,46197901-198307

sub47043-35090

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-10002×8iRN41..SR5..ARL197808-198307

*10-1.25PX37-18.5,*10-1.25PX35.5

main90114-10016×4iRN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA)197808-198403

*10-1.25PX41-18,*10-1.25PX41

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90170-10172×8iLN30,40,RN30,31,40,41197808-198307

sub90179-10067

main90170-10191×2iLN36,46,RN36,46197901-198307

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-35031iRN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD197808-198108

FR DRUM BRAKE

sub47044-35032

main47044-35040iRN31,41..RCB;RN31..SR5..IV3;LN40,RN30,40..EUR197808-198108

FR DISC BRAKE

sub47044-35041

main47044-35050iRN41..SR5..ARL197808-198307

sub47044-35051

sub47492-28010

main47044-35060iLN36,46,RN36,46197901-198307

sub47044-35080

47430ASPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26331×2iRN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA)197808-198403

47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26331×2iRN31,41..RCB;RN31..SR5..IV3;LN40,RN30,40..EUR197808-198108

FR DISC BRAKE

main90506-26394×2iRN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD197808-198108

FR DRUM BRAKE

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20225×4iRN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD197808-198108

FR DRUM BRAKE

main90501-20604×4iRN31,41..RCB;RN31..SR5..IV3;LN40,RN30,40..EUR197808-198108

FR DISC BRAKE

main90501-20756×4iRN41..SR5..ARL197808-198307

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12015×2iRN41..SR5..ARL197808-198307

main90506-16343×2iRN41..DLX,STD;RN41..SR5..(GEN,SA);LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA198108-198403

FR DISC BRAKE

main90506-26002×2iRN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA)198108-198307

FR DRUM BRAKE

47430HSPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)

main90504-18012×2iRN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA)197808-198403

47430LSHOE KIT, REAR BRAKE

main04495-26020iRN41..DLX,STD;RN41..SR5..GEN;LN30,40,RN30,31,40197808-198108

FR DRUM BRAKE

sub04495-26021

main04495-35051iRN41..DLX,STD;RN41..SR5..(GEN,SA);LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA198108-198403

FR DISK BRAKE

sub04495-35052

main04495-35060iRN41..SR5..ARL197808-198307

sub04495-35061

47445RROD, REAR WHEEL CYLINDER

main47538-35010×4iRN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA)197808-198403

47456RPLATE, REAR BRAKE SHOE GUIDE

main47456-20010×2iRN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA)197808-198403

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010×4iRN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA)197808-198403

main47447-30020×4iRN41..SR5..ARL197808-198307

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-20011×8iRN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD197808-198108

FR DRUM BRAKE

main47449-30020×8iRN31,41..RCB;LN40,RN30,40..EUR;RN31,41..SR5..(ARL,SA)197808-198108

FR DISC BRAKE

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-35010iRN41..SR5..ARL197808-198307

sub47061-35020

main47405-30010iRN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA)198108-198307

FR DRUM BRAKE

sub47405-30011

main47405-30020iLN36,46,RN36,46197901-198307

ID=19.05 WHEEL CYLINDER

main47406-30020iLN36,46,RN36,46..GEN,ME197901-198307

ID=20.64 WHEEL CYLINDER

47460BSPRING, TENSION(FOR REAR BRAKE ADJUSTER)

main90506-23344×2iRN41..DLX,STD;RN41..SR5..GEN;LN30,40,RN30,31,40197808-198108

FR DRUM BRAKE

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-35010iRN41..SR5..ARL197808-198307

sub47062-35020

main47406-30010iRN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA)198108-198307

FR DRUM BRAKE

sub47406-30011

main47406-30020iLN36,46,RN36,46197901-198307

47484BOLT, REAR BRAKE SHOE RETRACTING SPRING CLAMP

main47408-30020×2iRN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD197808-198108

FR DRUM BRAKE

47485SPACER OR HOLDER, SHOE RETRACTING SPRING CLAMP

main47485-35010×2iRN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA)198108-198307

FR DRUM BRAKE

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iRN41..SR5..ARL197808-198307

main47491-35040×2iRN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA)197808-198403

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22020×4iRN41..SR5..ARL197808-198307

ID=22.22 WHEEL CYLINDER

main47531-20071×4iRN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA)197808-198403

ID=22.22 WHEEL CYLINDER

sub47531-26070

main47531-30110×4iLN36,46,RN36,46197901-198307

ID=19.05 WHEEL CYLINDER

sub47531-35130

main47531-31011×4iRN31,41..(GEN,ME)..ECB;LN30,40,RN30,40..(DLX,STD)..(EUR,GEN,ME)198108-198307

ID=20.64 WHEEL CYLINDER

sub47531-26080

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iRN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA)197808-198211

main47547-20030×2iRN41..SR5..ARL197808-198307

main47547-26010×2iRN41..DLX,STD;RN46..ARL..IV3;LN30,40,RN3#,40;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;RN41..SR5..(GEN,SA)198211-198403

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iLN3#,4#,RN3#,4#197808-198403

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-29175iRN41..(GEN,ME)..ECB;LN40..STD..(EUR,GEN);LN30,RN30,31,40..EUR,GEN,ME198108-198211

ID=20.64

main47550-29265iRN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA)198211-198403

ID=22.22

sub47550-26090

sub91611-60814

main47550-29275iRN41..(GEN,ME)..ECB;LN40..STD..(EUR,GEN);LN30,RN30,31,40..EUR,GEN,ME198211-198307

ID=20.64

sub47550-26100

sub91611-60814

main47550-29305iLN36,46,RN36,46198211-198307

ID=19.05

sub47550-35160

main47550-39115iRN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA)197808-198211

ID=22.22

main47550-39125iLN36,46,RN36,46197901-198211

ID=19.05

main47550-39275iRN41..SR5..ARL197808-198307

ID=22.22

sub47550-30130

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-12010×2iLN36,46,RN36,46197901-198307

ID=19.05 WHEEL CYLINDER

main47509-20010×2iLN30,40,RN30,31,40,41197808-198403

ID=22.22 WHEEL CYLINDER

main47509-22010×2iRN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD197808-198108

ID=20.64 WHEEL CYLINDER

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-29175iRN31,41..(GEN,ME)..ECB;LN30,40,RN30,40..(DLX,STD)..(EUR,GEN,ME)198108-198211

ID=20.64

main47550-29265iRN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA)198211-198403

ID=22.22

sub47550-26090

sub91611-60814

main47550-29275iRN41..(GEN,ME)..ECB;LN40..STD..(EUR,GEN);LN30,RN30,31,40..EUR,GEN,ME198211-198307

ID=20.64

sub47550-26100

sub91611-60814

main47550-39115iRN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA)197808-198211

ID=22.22

main47550-39125iLN36,46,RN36,46197901-198307

ID=19.05

main47550-39275iRN41..SR5..ARL197808-198307

ID=22.22

sub47550-30130

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-35011iRN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA)197808-198403

main47601-35020iLN36,46,RN36,46197901-198307

ID=19.05 WHEEL CYLINDER

main47602-35020iLN36,46,RN36,46..GEN,ME197901-198307

ID=20.64 WHEEL CYLINDER

main47611-35020iRN41..SR5..ARL197808-198307

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010×2iLN3#,4#,RN3#,4#197808-198403

T=1.6

47601DWASHER, WAVE(FOR REAR BRAKE)

main90206-10059×2iRN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA)197808-198403

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-35011iRN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA)197808-198403

main47602-35020iLN36,46,RN36,46197901-198307

main47612-35020iRN41..SR5..ARL197808-198307

47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

main47613-35011iRN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA)197808-198403

RH

main47613-35020iLN36,46,RN36,46197901-198307

ID=19.05 WHEEL CYLINDER,RH

main47614-35011iRN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA)197808-198403

LH

main47614-35020×2iLN36,46,RN36,46..GEN,ME197901-198307

ID=20.64 WHEEL CYLINDER

9161140814

main91611-40814

9412541200

main94125-41200

9451201000

main94512-01000

9453101200

main94531-01200
