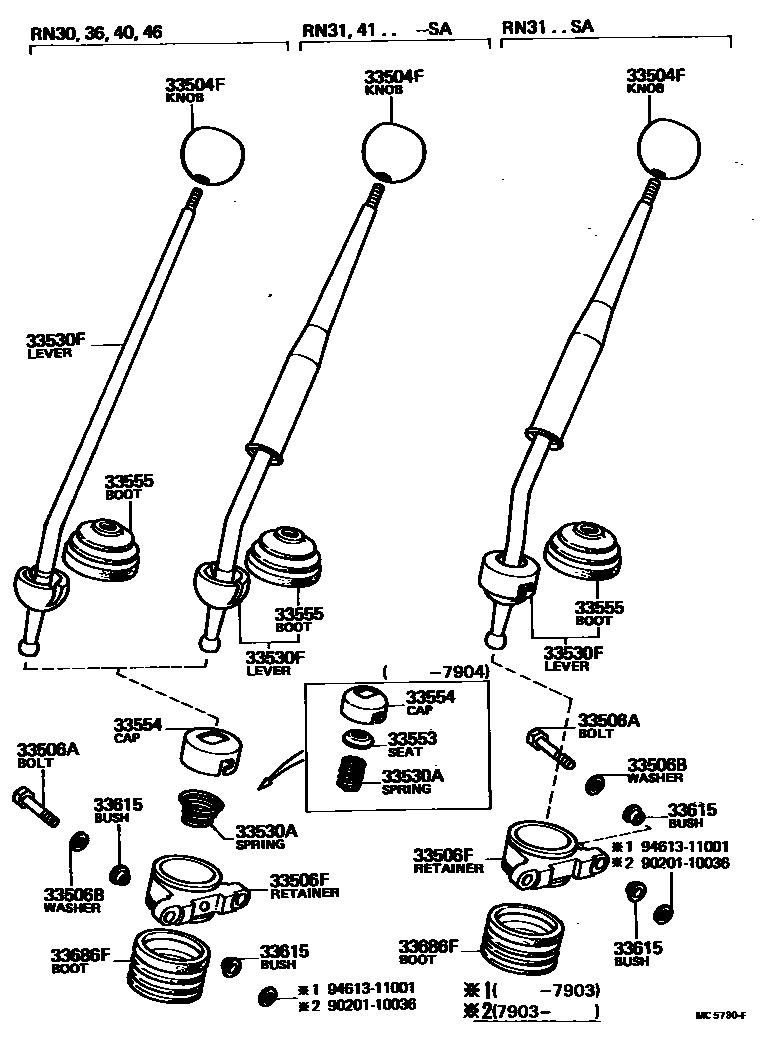

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0005 1 0006 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-20052-01iLN40,RN41..SR5198308-198403

URETHANE,BLACK,BLACK,TRIM2#

main33504-20052-04iLN40,RN31,41..5F198108-198307

URETHANE,BLUE,BLUE,TRIM8#

main33504-20052-16iLN40,RN31,41..5F198108-198307

URETHANE,BROWN,BROWN,TRIM4#

main33504-20062-01iRN31,41..LHD..4F197808-198307

URETHANE,BLACK,BLACK,TRIM2#

main33504-22100-01iRN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41..4F197808-198010

BLACK,BLACK,TRIM2#

main33504-22101-01iLN30,40,RN30,31,40,41..4F..(ARL,EUR,GEN,PHL,SA)198108-198403

BLACK,BLACK,TRIM2#

main33504-22110iLN30,40..5F197911-198010

BLACK

main33504-22111-01iLN3#,4#..5F..STD198010-198403

BLACK,BLACK,TRIM2#

main33504-22120iLN3#,4#,RN3#,4#..LHD..4F..GEN197808-198307

*WOO,URETHANE

main33504-22130iLN30,40..LHD..5F..GEN197911-198307

*WOO,URETHANE

33506ABOLT (FOR CONTROL SHIFT LEVER RETAINER)

main90109-10020×2iRN46..EUR,GEN;RN3#,40,41..4F;RN46..ARL..IV3197808-197903

main90109-10042×2iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F197903-198403

33506BWASHER, PLATE (FOR CONTROL SHIFT LEVER RETAINER)

main90201-11257×2iRN46..EUR,GEN;RN3#,40,41..4F;RN46..ARL..IV3197808-197903

main90201-13012×2iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F197903-198403

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-20030iRN46..EUR,GEN;RN3#,40,41..4F;RN46..ARL..IV3197808-197903

main33506-20031iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F197903-198109

main33506-35010iLN30,40..5F197911-198108

main33506-35020iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198103-198307

main33506-35040iLN30,40..5F198108-198310

main33506-35050iRN36,46..ME;RN46..RHD..T1..GEN..CBU198109-198110

W/HEAVY DUTY ADAPTER

main33506-35060iLN30,40..5F..RCB198310-198403

main33570-14011iRN31,41..SR5197808-198010

main33570-35010iRN31,41..SR5198010-198312

33530ASPRING, COMPRESSION (FOR SHIFT LEVER)

main90501-26629iRN46..ARL..IV3;RN30,36,40,41..4F;RN31,46..4F..(EUR,GEN)197808-197904

main90502-26001iRN31..4F..(GEN,ME);LN3#,4#,RN30,36,4#..4F197904-198403

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-35011iRN31..4F..SA197808-198307

main33530-35022iRN31,41..LHD..SR5197808-198307

main33530-35030iRN31,41..RHD..SR5197808-198312

main33530-35050iLN30,40..LHD..5F197911-198307

main33530-35060iLN30,40..RHD..5F197911-198403

main33541-35062iLN30,40,RN30,31,40,41..LHD..4F197808-198008

main33541-35063iLN30,40,RN30,31,40,41..LHD..4F198008-198307

main33541-35082iRN31..RHD..4F..CBU;LN30,40,RN30,40,41..RHD..4F197808-198008

main33541-35083iRN31..RHD..4F..CBU;LN30,40,RN30,40,41..RHD..4F198008-198403

main33541-35120iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197901-198307

main33541-35210iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198103-198307

33553SEAT, SHIFT LEVER SPRING

main33553-30010iRN46..ARL..IV3;RN30,36,40,41..4F;RN31,46..4F..(EUR,GEN)197808-197904

33554CAP, SHIFT LEVER

main33554-30011iRN46..ARL..IV3;RN30,36,40,41..4F;RN31,46..4F..(EUR,GEN)197808-197904

main33554-30012iLN30,40,RN30,36,4#..4F;LN36,46,RN31..(4F,5F)..(DLX,STD)..(ARL,EUR,GEN,ME)197904-198307

33555BOOT, SHIFT LEVER

main33555-30030iLN30,40,RN30,31,40,41..4F197808-198403

main33555-31011iRN31,41..SR5197808-198312

main33555-35020iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197901-198307

main33555-35040iLN46..TW;LN30,40..5F;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198403

33615BUSH, CONTROL SHIFT LEVER RETAINER

main33615-20011×4iRN46..EUR,GEN;RN3#,40,41..4F;RN46..ARL..IV3197808-197903

main33615-20012×4iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F197903-198403

33686FBOOT, CONTROL SHAFT DUST (FOR FLOOR SHIFT RETAINER)

main33555-30020iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F197808-198403

9020110036

main90201-10036

9461311001

main94613-11001

13 parts on this diagram · 5 diagrams in section
