SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29016iRN31,41..LHD..SR5197808-198307

N=19,W/185R14C-8 TIRE

main33403-29016iRN30,40..EUR197808-198210

N=19

main33403-29065iRN36,46..EUR198008-198307

N=20

main33403-29065iLN36,46,RN36,46..ARL,GEN197901-198307

N=20,W/5.50F-15 DISC WHEEL

main33403-29065iLN40..GEN..ECB..IV3198008-198108

N=20,W/185R14C-8 TIRE

main33403-39016iRN30,40..ARL,GEN,ME,PHL,SA197808-198210

N=18

main33403-39036iRN31..SR5..IV3;RN31,41..LHD..SR5197808-197812

N=17,N=17,W/185R14C-8 TIRE

main33403-39036iLN46,RN46..T1..ARL..CBU198208-198307

N=17,N=17,W/205SR15 TIRE

main33403-39036iRN31,41..LHD..SR5197808-198202

N=17,N=17

main33403-39036iLN40,RN31,41..ARL198108-198210

N=17,N=17,W/185R14C-8.TIRE

main33403-39036iLN40,RN31,41..ARL198108-198210

N=17,N=17,W/185R14 TIRE

main33403-69026iLN30,40..4F197808-198210

N=19

main33403-69026iRN46..GEN,ME;RN46..ARL..IV3;RN36..ARL,GEN,ME;LN46..T1..ARL..CBU198008-198307

N=19,W/5.50F-16 DISK WHEEL

main33403-69026iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198008

N=19,W/5.50F-16 DISC WHEEL

main33482-29045iRN30,40..ARL198210-198307

N=19,MARK 19:5,N=19,W/185R14C-8 TIRE

main33482-29045iRN30,40..EUR198202-198312

N=19,MARK 19:5,N=19

main33482-29055iLN40..LHD..T1..4F..ECB;RN41..LHD..DLX..GEN..CBU198210-198307

N=17,MARK 17:5,N=17,W/185R14C-8.TIRE

main33482-29055iLN40..LHD..T1..4F..ECB;RN41..LHD..DLX..GEN..CBU198202-198307

N=17,MARK 17:5,N=17

main33482-29055iRN41..SR5..SA198304-198307

N=17,MARK 17:5,N=17,W/DIFF R=4.375

main33482-39015iRN41..SR5..ARL198009-198202

N=21

main33482-39025iLN30,40,RN41..DLX,STD197911-198312

N=19,MARK 19:6,N=19

main33482-39035iLN40..SR5198202-198403

N=21,MARK 21:6,N=21

main33482-39045iLN30,40..5F..STD..RCB198008-198403

N=20,MARK 20:6,N=20

main33482-39085iRN30,40..ARL,GEN,ME,PHL,SA198210-198403

N=18,MARK 18:5,N=18

33403ABUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)

main90386-09078iRN3#,4#197808-197811

33403CRING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)

main90301-09017iRN3#,4#197808-197811

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-30040iRN31,41;LN3#,4#,RN30,36,40,46..4F,4H197808-198307

main33404-35010iLN30,40..5F,5H197911-198403

main33404-39016iRN3#,4#..DLX,STD197808-197811

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iLN3#,4#,RN3#,4#197808-198403

33404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)

main90201-07069iRN3#,4#197808-197811

33404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)

main90303-06017iRN3#,4#197808-197811

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLN3#,4#,RN3#,4#197808-198403

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iLN30,40..5F,5H197911-198403

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30010iRN3#,4#197808-197811

main33485-30020iLN3#,4#,RN3#,4#197808-198403

9161140814

main91611-40814

9161140816

main91611-40816

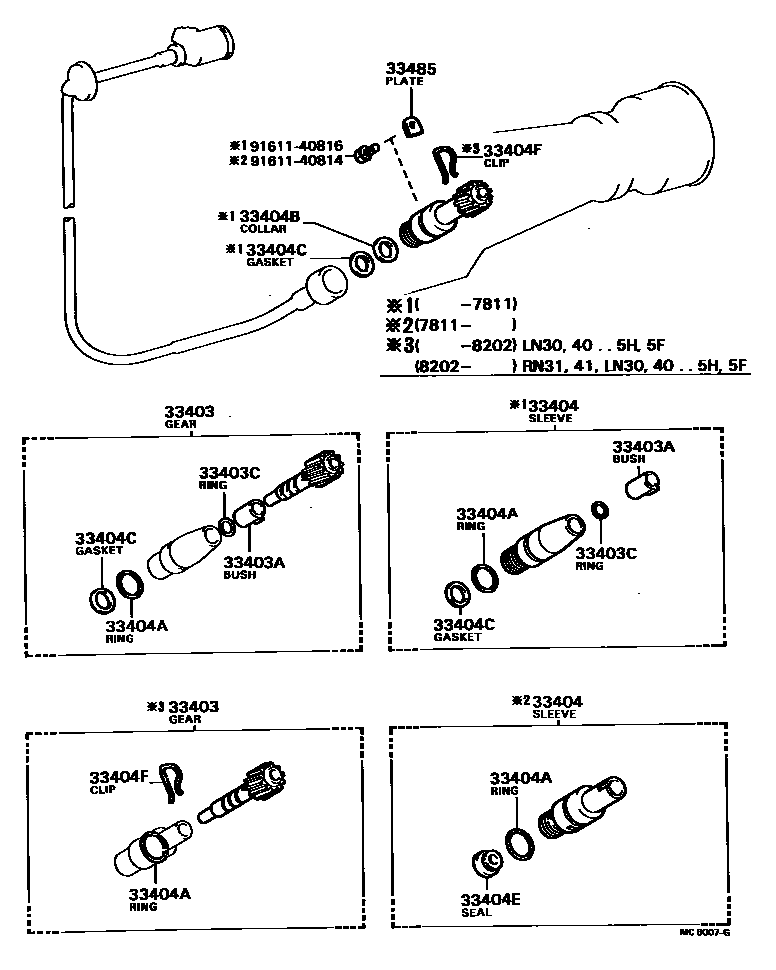

12 parts on this diagram · 1 diagram in section
