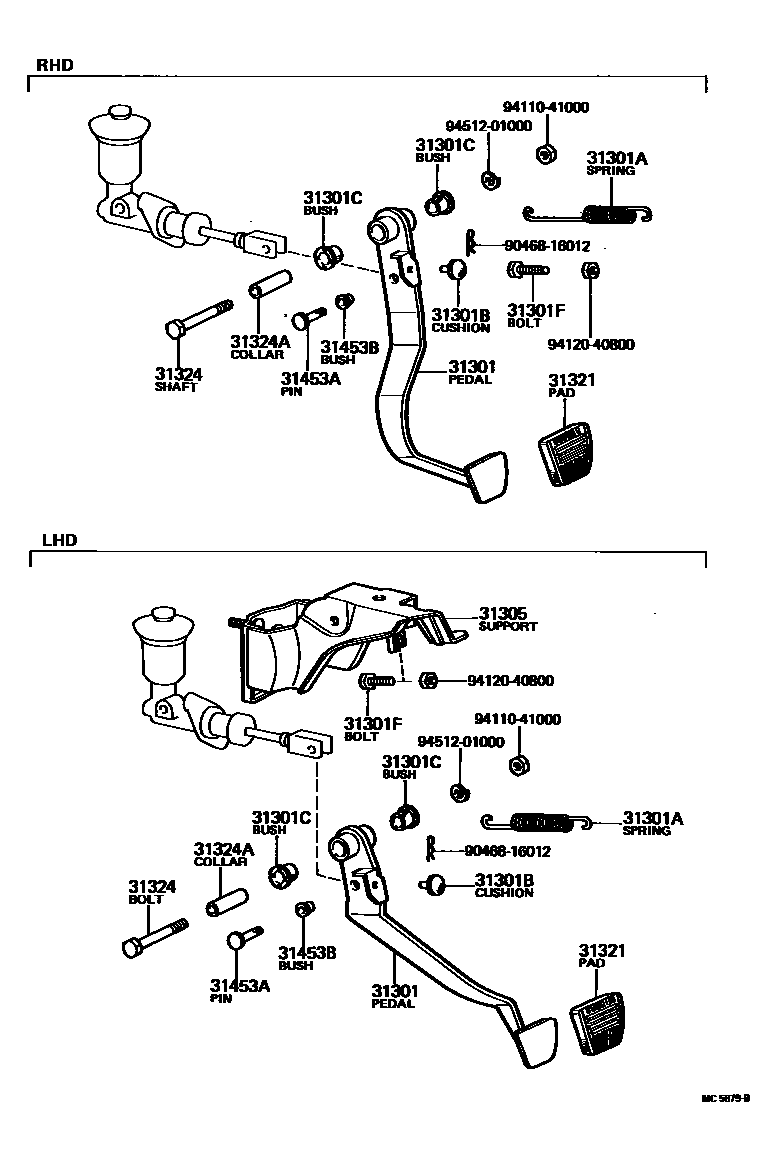

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-35100iLN3#,4#,RN3#,4#..RHD197808-198403

main31301-35110iLN3#,4#,RN3#,4#..LHD197808-198307

31301ASPRING(FOR CLUTCH PEDAL)

main90506-14019iLN3#,4#,RN3#,4#197808-198403

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iLN3#,4#,RN3#,4#197808-198403

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007×2iLN3#,4#,RN3#,4#197808-198403

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-08052iLN3#,4#,RN3#,4#197912-198403

main90109-08001iRN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41197808-197912

31305BRACKET SUB-ASSY, CLUTCH PEDAL

main55107-89102iRN3#,4#..LHD197808-198108

main55107-89103iLN30,40..LHD197909-198108

31321PAD, CLUTCH PEDAL

main31321-14010iLN3#,4#,RN3#,4#197808-198403

31324SHAFT, CLUTCH PEDAL

main91121-51060iLN3#,4#,RN3#,4#197808-198403

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iLN3#,4#,RN3#,4#197808-198403

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08018iRN3#,40,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197808-198207

L=29.5

main90249-08028iLN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN)197909-198207

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iLN3#,4#,RN3#,4#197808-198403

9046816012

main90468-16012

9411041000

main94110-41000

9412040800

main94120-40800

9451201000

main94512-01000

15 parts on this diagram · 3 diagrams in section
