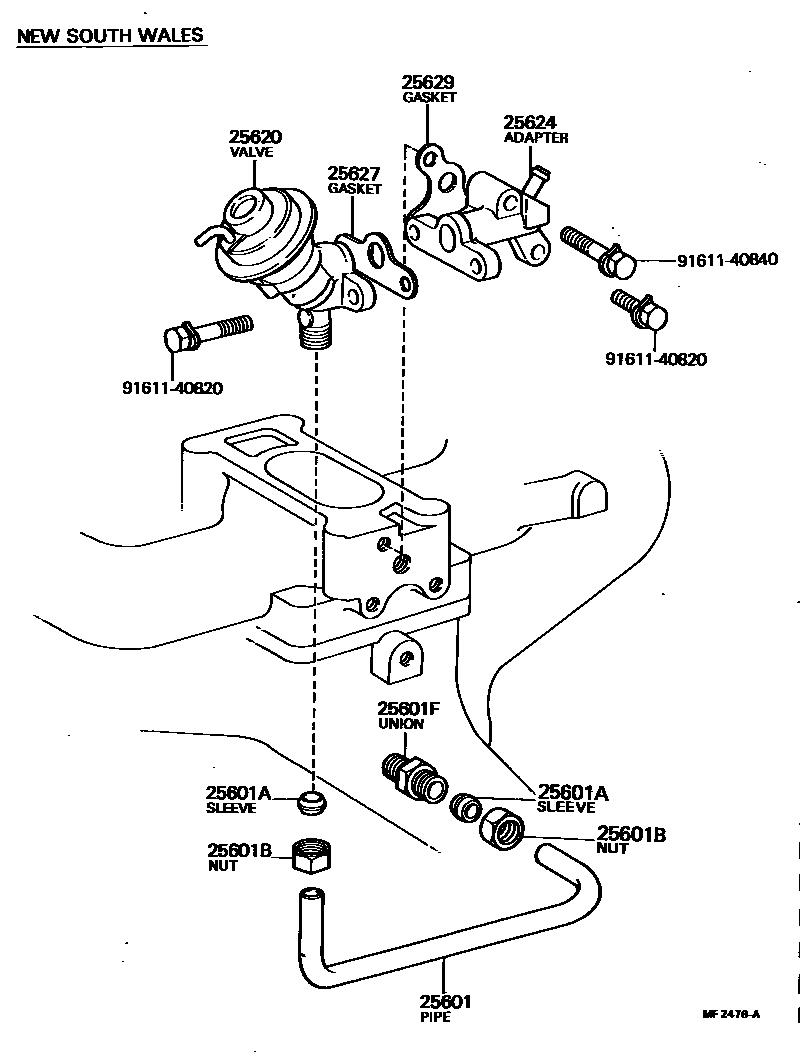

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-31030i12R..RN30,40..ARL198010-198307

NEW SOUTH WALES

main25601-34020i18R..RN36,46197901-198104

main25601-34021i18R..RN36..ARL;18R..RN46..ARL..IV3; L..LN46..T1..ARL..CBU198104-198307

main25601-34040i18R..RN31,41..ARL197808-198104

main25601-34041i18R..RN31,41..T1..ARL198104-198307

main25611-31020i12R..RN30,40..ARL197808-198010

NEW SOUTH WALES

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-12042×2i12R..RN30,40..ARL197808-198307

NEW SOUTH WALES

main90410-18038i18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL; L..LN46..T1..ARL..CBU197808-198307

25601BNUT, UNION, EGR PIPE, NO.1

main90402-20073×2i12R..RN30,40..ARL197808-198307

NEW SOUTH WALES

main90402-26074i18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL; L..LN46..T1..ARL..CBU197808-198307

25601FUNION(FOR EGR PIPE, NO.1)

main90404-20001i12R..RN30,40..ARL197808-198307

NEW SOUTH WALES

main90404-26284i18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL; L..LN46..T1..ARL..CBU197808-198307

25620VALVE ASSY, EGR

main25620-31030i12R..RN30,40..ARL197808-198010

NEW SOUTH WALES

main25620-31060i12R..RN30,40..ARL198010-198307

NEW SOUTH WALES

main25620-34150i18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL; L..LN46..T1..ARL..CBU197808-198307

25624ADAPTER, EGR VALVE

main25607-31020i12R..RN30,40..ARL198010-198010

NEW SOUTH WALES

main25607-31030i12R..RN30,40..ARL198010-198307

NEW SOUTH WALES

25627GASKET, EGR VALVE

main25627-31020i12R..RN30,40..ARL198010-198307

NEW SOUTH WALES

main25627-44010i12R..RN30,40..ARL197808-198010

NEW SOUTH WALES

25629GASKET, EGR VALVE ADAPTER

main25629-31010i12R..RN30,40..ARL197808-198010

NEW SOUTH WALES

main25629-31020i12R..RN30,40..ARL198010-198307

NEW SOUTH WALES

9161140820

main91611-40820

9161140840

main91611-40840

10 parts on this diagram · 3 diagrams in section
