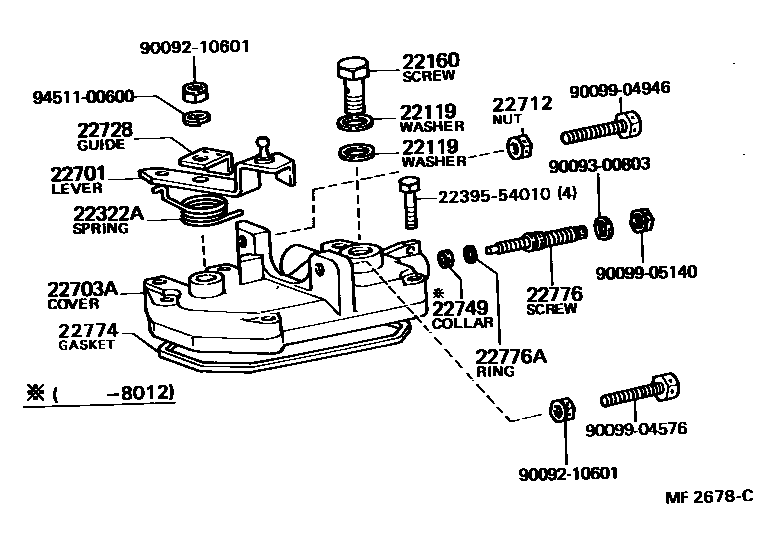

INJECTION PUMP BODY

0001 1 0002 1 0003 1

22119WASHER, AIR BLEEDER NIPPLE

main22119-77020iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

sub90201-12109

22160SCREW SUB-ASSY, OVERFLOW

main22160-54010iL..LN3#,4#197909-198108

sub22160-64010

main22160-64010i18R..RN46..ARL..CBU198108-198403

22322ASPRING, RETURN

main22322-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

22701LEVER SUB-ASSY, ADJUSTING

main22701-54042iL..LN30,40197909-198403

NO MARK

main22701-54043i18R..RN46..ARL..CBU197909-198403

MARK "0"

main22701-54120iL..LN36,46198101-198403

HIGH ALTITUDE SPEC,NO MARK

sub22701-56350

main22701-54120iL..LN30,40..SA198101-198312

NO MARK

sub22701-56350

main22701-54121i18R..RN46..ARL..CBU198103-198108

HIGH ALTITUDE SPEC,MARK"0"

sub22701-56351

main22701-54121iL..LN30,40..LHD..GEN198101-198403

HIGH ALTITUDE SPEC,MARK "0"

sub22701-56351

main22701-54121iL..LN30,40..SA198101-198312

MARK "0"

sub22701-56351

22703ACOVER SUB-ASSY, GOVERNOR

main22703-54020iL..LN30,40197909-198403

main22703-54140i18R..RN46..ARL..CBU198101-198111

HIGH ALTITUDE SPEC

main22703-54140iL..LN30,40..SA198101-198111

main22703-54141iL..LN30,40..SA198111-198312

main22703-54141iL..LN3#,4#..GEN198111-198403

HIGH ALTITUDE SPEC

22712NUT, ROCK

main22775-77121iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

22728GUIDE, RETURN SPRING

main22728-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

22749COLLAR, SMOKE SET ADJUSTING

main22749-54010iL..LN30,40197909-198012

T=2.0

main22749-54011iL..LN30,40197909-198012

T=2.2

main22749-54012iL..LN30,40197909-198012

T=2.4

main22749-54013iL..LN30,40197909-198012

T=2.6

main22749-54014iL..LN30,40197909-198012

T=2.8

main22749-54015iL..LN30,40197909-198012

T=3.0

main22749-54016iL..LN30,40197909-198012

T=3.2

main22749-54017iL..LN30,40197909-198012

T=3.4

main22749-54018iL..LN30,40197909-198012

T=3.6

main22749-54019iL..LN30,40197909-198012

T=3.8

22774GASKET, GOVERNOR COVER

main22774-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

sub22774-54270

22776SCREW, SMOKE SET ADJUSTING

main22776-54010iL..LN30,40197909-198101

sub22776-54110

main22776-54110iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198101-198403

22776ARING, O(FOR SMOKE SET SCREW)

main90099-14047iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

sub22193-54771

2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-54010

9009210601

main90092-10601

9009300803

main90093-00803

9009904576

main90099-04576

9009904946

main90099-04946

9009905140

main90099-05140

9451100600

main94511-00600

18 parts on this diagram · 3 diagrams in section
