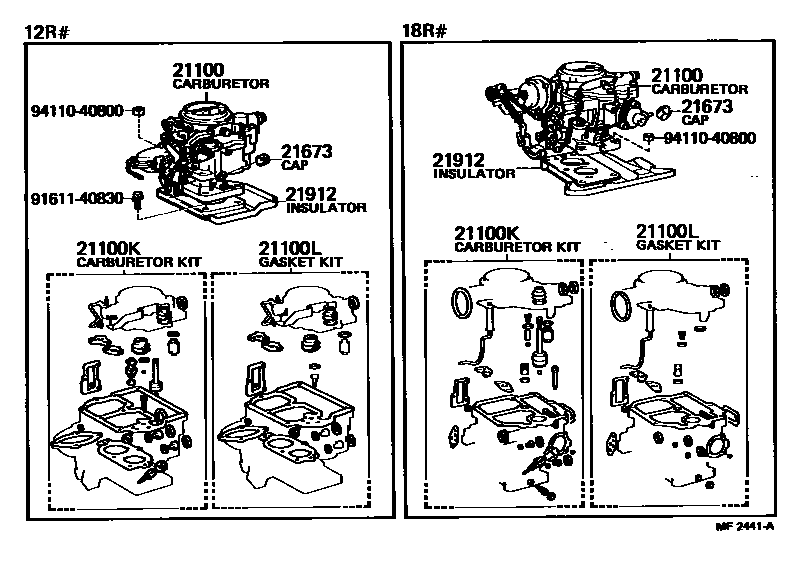

CARBURETOR ASSEMBLY

21100CARBURETOR ASSY

main21100-31410i12R..RN30,40..GEN,SA197808-197912

main21100-31411i12R..RN30,40..GEN,ME,SA197912-198403

main21100-31420i12R..RN30,40..EUR; 12R..RN30,40..RHD197808-197912

HONG KONG SPEC

main21100-31421i12R..RN30,40..RHD..GEN197912-198202

HONG KONG SPEC

main21100-31430i12R..RN30,40..ARL197808-197912

main21100-31431i12R..RN30,40..ARL197912-198301

main21100-31432i12R..RN30,40..ARL198301-198307

main21100-31440i12R..RN30,40..ARL197808-197912

NEW SOUTH WALES

main21100-31441i12R..RN30,40..ARL197912-198301

NEW SOUTH WALES

main21100-31442i12R..RN30,40..ARL198301-198307

NEW SOUTH WALES

main21100-31541i12RM..RN30197808-197912

main21100-31542i12RM..RN30,40197912-198307

main21100-34431i18R..RN31,36,41,46..GEN,SA197808-197908

main21100-34432i18R..RN31,36,41,46..GEN,ME,SA197908-198312

main21100-34511i18R..RN31,41..ARL197808-197908

main21100-34512i18R..RN31,41..T1..ARL197908-198307

main21100-34550i18R..RN36,46..RHD197904-197908

HONG KONG SPEC

main21100-34551i18R..RN36..RHD;18R..RN46..ARL..IV3;18R..RN46..RHD..(EUR,GEN,SA); L..LN46..T1..ARL..CBU197908-198202

HONG KONG SPEC

main21100-34560i18R..RN31,36,41,46..ARL197901-197908

main21100-34561i18R..RN46..ARL..IV3;18R..RN31,36,41..ARL; L..LN46..T1..ARL..CBU197908-198307

main21100-34570i18R..RN36,46197901-197908

main21100-34571i18R..RN36..ARL;18R..RN46..ARL..IV3; L..LN46..T1..ARL..CBU197908-198307

21100KCARBURETOR KIT

main04211-31290i12R..RN30,40..GEN,SA197808-198403

main04211-31300i12R..RN30,40..RHD..GEN197808-198202

HONG KONG SPEC

main04211-31320i12R..RN30,40..ARL197808-198301

main04211-31330i12R..RN30,40..ARL197808-198301

NEW SOUTH WALES

main04211-31350i12RM..RN30,40197808-198307

main04211-31420i12R..RN30,40..ARL198301-198307

NEW SOUTH WALES

main04211-31440i12R..RN30,40..ARL198301-198307

main04211-34210i18R..RN31,36,41,46..GEN,ME,SA197808-198312

main04211-34220i18R..RN46..ARL..IV3;18R..RN31,36,41..ARL; L..LN46..T1..ARL..CBU197808-198307

main04211-34240i18R..RN36..RHD;18R..RN46..ARL..IV3;18R..RN46..RHD..(EUR,GEN,SA); L..LN46..T1..ARL..CBU197904-198202

HONG KONG SPEC

21100LGASKET KIT, CARBURETOR

main04212-28012i12R#..RN30,40197911-198403

main04212-31070i12R#..RN30,40197808-197912

main04212-36010i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA; L..LN46..T1..ARL..CBU197808-198312

21673CAP, IDLE LIMIT

main21673-13280i12R..RN30,40..ARL; 18R..RN46..ARL..IV3;18R..RN31,36,41..ARL; L..LN46..T1..ARL..CBU198301-198307

main21673-38020i18R..RN46..ARL..IV3;12R,18R..RN3#,40,41..ARL; L..LN46..T1..ARL..CBU197808-198301

21912INSULATOR, CARBURETOR HEAT

main21912-31061i12R..RN30,40197808-198403

main21912-31080i12RM..RN30,40197808-198307

main21912-34062i18R..RN31,36,41,46197808-197908

main21912-34063i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA; L..LN46..T1..ARL..CBU197908-198312

9161140830

main91611-40830

9411040800

main94110-40800

7 parts on this diagram · 1 diagram in section
