AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1 0011 1 0012 1

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

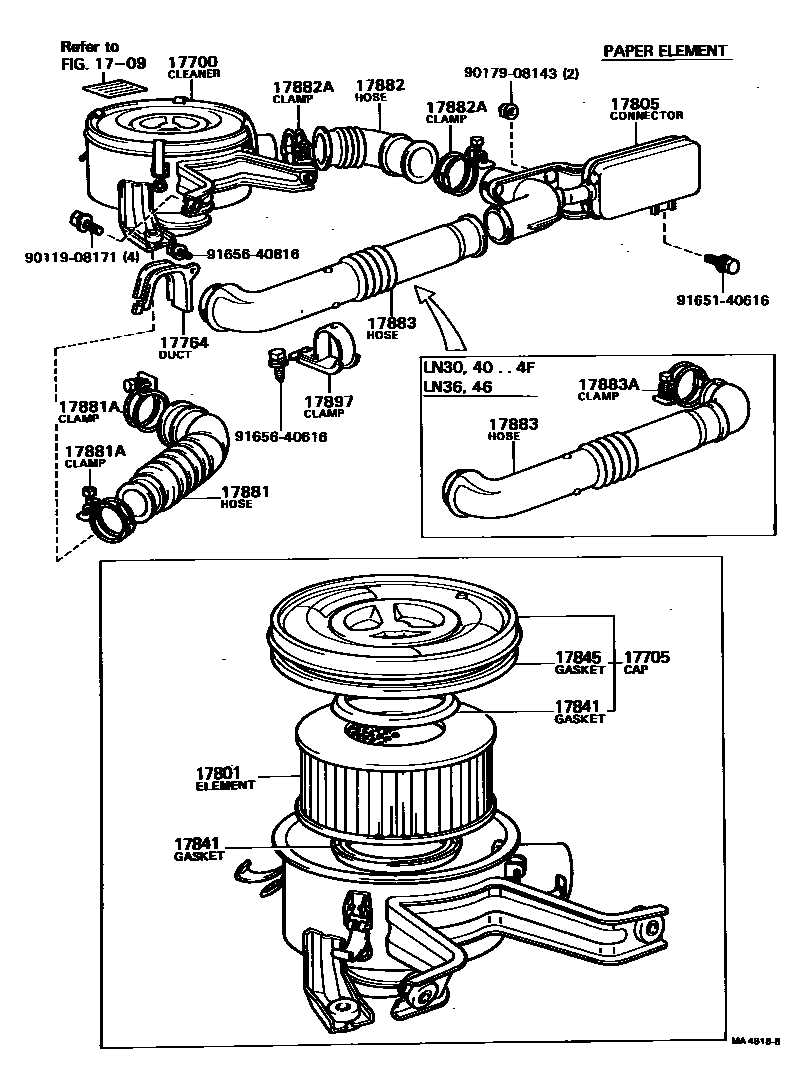

17700CLEANER ASSY, AIR

main17700-31262i12RM..RN30,40197808-198307

main17700-31360i12R..RN30,40..ARL,GEN197808-197909

main17700-31361i12R..RN30,40..ARL,GEN197909-198307

main17700-31371i12R#,18R..RN3#,4#..GEN,PHL,SA197808-197901

CYCLONE TYPE

main17700-31372i12R,18R..RN30,31,40,41..GEN,ME,SA197901-198403

CYCLONE TYPE

main17700-31380i12R..RN30,40..ARL,EUR,GEN197808-197909

W/HOT AIR INTAKE

main17700-31381i12R..RN30,40..ARL,EUR,GEN197909-198307

W/HOT AIR INTAKE

main17700-31390i12R..RN30,40..ARL197808-198307

NEW SOUTH WALES

main17700-34354i18R..RN31,41..ARL197808-198001

W/HOT AIR INTAKE

main17700-34355i18R..RN31,41..T1..ARL198001-198307

W/HOT AIR INTAKE

main17700-34441i18R..RN46..ARL..IV3;18R..RN46..GEN,ME,SA;18R..RN36..ARL,GEN,ME197901-198307

CYCLONE TYPE

main17700-34521i18R..RN36,46197901-197908

CYCLONE,W/HOT AIR INTAKE

main17700-34522i18R..RN36..ARL;18R..RN46..ARL..IV3197908-198307

CYCLONE,W/HOT AIR INTAKE

main17700-34560i18R..RN36,46..EUR197901-197908

W/HOT AIR INTAKE

main17700-34561i18R..RN36,46..EUR197908-198307

W/HOT AIR INTAKE

main17700-34570i18R..RN36,46..EUR197901-198307

PAPER ELEMENT TYPE

main17700-34570i18R..RN36,46..GEN197901-198307

W/O HOT AIR INTAKE

main17700-34590i18R..RN31,41..ARL,GEN197901-198307

PAPER ELEMENT TYPE

main17700-34710i18R..RN36,46..GEN198103-198307

DUST AREA,PAPER ELEMENT TYPE

main17700-36153i18R..RN31,41..ARL,GEN197808-197901

PAPER ELEMENT TYPE

main17700-54070iL..LN30,40..EUR,GEN197909-198101

PAPER ELEMENT TYPE

main17700-54071iL..LN46..RHD..EUR198108-198307

main17700-54071iL..LN30,40..EUR,GEN198101-198307

PAPER ELEMENT TYPE

main17700-54080iL..LN46..TW;L..LN46..T1..IV3;L..LN46..T1..GEN..CBU;L..LN3#,40..ARL,GEN,SA197909-198403

CYCLONE TYPE

main17700-54150iL..LN36,46..LHD..EUR198108-198307

17705CAP SUB-ASSY, AIR CLEANER

main17705-31032i12R#..RN30,40..ARL,EUR,GEN,PHL197808-198110

WHITE

main17705-31033i12R#..RN30,40..ARL,EUR,GEN,PHL198110-198403

BLACK

main17705-34141i18R..RN31,41..ARL197901-198108

main17705-34141i18R..RN31,41..ARL,GEN197808-197901

PAPER ELEMENT TYPE

main17705-34142i18R..RN31,41..T1..ARL198108-198307

main17705-34190i18R..RN31,41..ARL,GEN197901-198108

PAPER ELEMENT TYPE

main17705-34191i18R..RN31,41..ARL,GEN198108-198307

PAPER ELEMENT TYPE

main17705-34230i18R..RN36,46..EUR,GEN197901-198108

PAPER ELEMENT TYPE

main17705-34231i18R..RN41,46..RHD..GEN..IV3198208-198307

W/HOT AIR INTAKE

main17705-34231i18R..RN36,46..EUR,GEN198108-198307

PAPER ELEMENT TYPE

main17705-54031iL..LN30,40..EUR,GEN197909-198101

PAPER ELEMENT TYPE

main17705-54032iL..LN36,4#..EUR198101-198307

PAPER ELEMENT TYPE

17764DUCT, AIR CLEANER

main53207-89102iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-25010i12R#..RN30,40..ARL,EUR,GEN,PHL197808-198307

PAPER ELEMENT TYPE

main17801-31050iL..LN46..TW;L..LN46..T1..IV3;L..LN46..T1..GEN..CBU;L..LN3#,40..ARL,GEN,SA197808-198403

CYCLONE TYPE

main17801-31080i12R#..RN30,40..ARL,EUR,GEN,PHL198103-198307

DUST AREA,PAPER ELEMENT TYPE

main17801-34060i18R..RN31,41..ARL,GEN197808-198307

PAPER ELEMENT TYPE

main17801-34070i18R..RN31,41..ARL,GEN198103-198307

DUST AREA,PAPER ELEMENT TYPE

main17801-54030iL..LN30,40..EUR,GEN197909-198307

PAPER ELEMENT TYPE

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-89101iL..LN30,40..5F,5H197911-198101

main17805-89103i18R..RN46..ARL..CBU197901-198403

17841GASKET, FILTER ELEMENT

main17841-31020i12R#..RN30,40..ARL,EUR,GEN,PHL197808-198403

main17841-33011i18R..RN31,41..ARL,GEN197808-198307

PAPER ELEMENT TYPE

main17841-54010iL..LN30,40..EUR,GEN197909-198307

PAPER ELEMENT TYPE

17845GASKET, AIR CLEANER CAP

main17845-25010i12R#..RN30,40..ARL,EUR,GEN,PHL197910-198210

main17845-31020i12R#..RN30,40..ARL,EUR,GEN,PHL197808-197910

main17845-33011i18R..RN31,41..ARL,GEN197808-198307

PAPER ELEMENT TYPE

main17845-34050i18R..RN41,46..RHD..GEN..IV3198208-198307

W/HOT AIR INTAKE

main17845-34050i18R..RN36,46..EUR,GEN197901-198307

PAPER ELEMENT TYPE

main17845-42010i12R#..RN30,40..ARL,EUR,GEN,PHL198210-198403

*G,L=990

main17845-54010iL..LN30,40..EUR,GEN197909-198307

PAPER ELEMENT TYPE

17881HOSE, AIR CLEANER, NO.1

main17881-25012i12R..RN30,40..ARL,EUR,GEN197808-198307

W/HOT AIR INTAKE

main17881-31020i12R#..RN30,40..GEN,ME,PHL,SA197808-198403

CYCLONE TYPE

main17881-34110i18R..RN41,46..RHD..GEN..IV3197808-198307

W/HOT AIR INTAKE

main17881-54060iL..LN36,4#..EUR197909-198307

PAPER ELEMENT TYPE

main17881-54070iL..LN46..TW;L..LN46..T1..IV3;L..LN46..T1..GEN..CBU;L..LN3#,40..ARL,GEN,SA197909-198403

CYCLONE TYPE

main17882-34100i18R..RN46..ARL..IV3;18R..RN46..GEN,ME,SA;18R..RN36..ARL,GEN,ME197808-198312

CYCLONE TYPE

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10460i18R..RN31,41..T1..ARL197808-198307

W/HOT AIR INTAKE,ID=46

main96111-10690iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198307

ID=69

main96111-10690iL..LN46..T1..ARL..CBU197808-198403

CYCLONE TYPE,ID=69

17882HOSE, AIR CLEANER, NO.2

main17881-34150iL..LN46..T1..ARL..CBU197901-198307

W/HOT AIR INTAKE

main17882-89103iL..LN46..TW;L..LN46..T1..IV3;L..LN46..T1..GEN..CBU;L..LN3#,40..ARL,GEN,SA197909-198403

CYCLONE TYPE

main17882-89104iL..LN30,40..EUR,GEN197909-198307

PAPER ELEMENT TYPE

main17882-89104iL..LN46..RHD..EUR198108-198307

main17882-89106i18R..RN36,46..EUR,GEN197901-198307

W/COOL AIR INTAKE

main17882-95111iL..LN36,46..LHD..EUR198108-198307

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-01003i18R..RN36,46..EUR,GEN197901-198307

W/COOL AIR INTAKE

main96111-10460iL..LN46..T1..ARL..CBU197901-198307

W/HOT AIR INTAKE

main96111-10690iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

ID=69

17883HOSE, AIR CLEANER, NO.3

main17883-89101iL..LN30,40..4F197909-198403

main17883-89102iL..LN30,40..5F,5H197911-198403

main17883-95110i18R..RN46..ARL..CBU198108-198307

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main90460-64001iL..LN46..TW;L..LN46..ARL..IV3;L..LN36,46..T1..(EUR,GEN)197909-198403

ID=64

17897CLAMP, HOSE(FOR AIR CLEANER)

main90461-09002i18R..RN46..ARL..CBU197909-198403

ID=63.5

9011908171

main90119-08171

9017908143

main90179-08143

9165140616

main91651-40616

9165640616

main91656-40616

9165640816

main91656-40816

20 parts on this diagram · 10 diagrams in section
