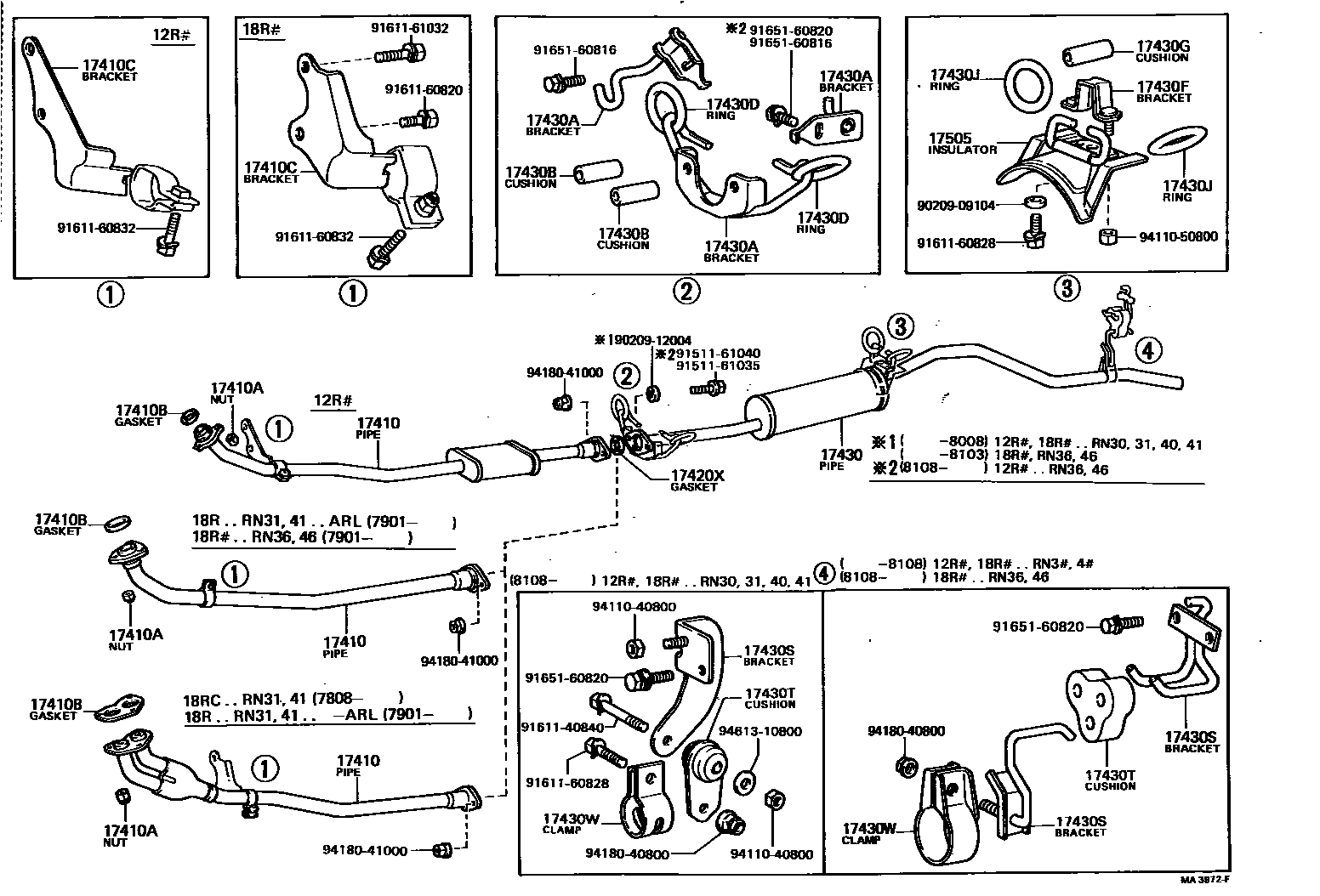

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-31280i12R#..RN30,40..GEN,ME,PHL,SA197808-198403

main17410-31290i12R..RN30,40..RHD..GEN197808-198202

HONG KONG SPEC

main17410-34320i18R..RN36;18R..RN46..EUR,GEN;18R..RN46..ARL..IV3197901-197911

main17410-34321i18R..RN36;18R..RN46..ARL..IV3;L..LN46..T1..ARL..CBU;18R..RN46..T1..(EUR,GEN,ME,SA)197911-198307

main17410-34331i18R..RN31,41197808-197901

main17410-34360i18R..RN31,41..ARL197901-198307

main17410-34420i18R..RN46..TW198001-198307

main17410-54070iL..LN30,40..4F,5F197909-198403

main17410-54080iL..LN30,40..5H197911-198307

main17410-54150iL..LN46..TW;L..LN46..ARL..IV3;18R..RN46..ARL..CBU;L..LN36,46..T1..(EUR,GEN)198103-198307

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90170-10199×3i12R#,18R..RN30,31,40,41197808-198403

main90179-10010×3iL,18R..LN3#,4#,RN36,46197901-198307

17410BGASKET, EXHAUST PIPE

main17451-41010i18R..RN31,41197808-197901

main90917-06004iL..LN46..TW;L..LN46..ARL..IV3;18R..RN46..ARL..CBU;L..LN46..T1..(EUR,GEN);L,12R#..LN3#,40,RN30,40197808-198403

main90917-06005i18R..RN31,41..ARL; 18R..RN36;18R..RN46..ARL..IV3;L..LN46..T1..ARL..CBU;18R..RN46..EUR,GEN,ME,SA197901-198307

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-31140i12R#..RN30,40197808-198403

main17571-34200i18R..RN31,36,41..T1;18R..RN46..ARL..IV3;L..LN46..T1..ARL..CBU;18R..RN46..T1..(EUR,GEN,ME,SA)197808-198312

main17571-34220i18R..RN46..TW198001-198307

main17571-54050iL..LN30,40..4F,5F197909-198310

main17571-54060iL..LN30,40..5H197911-198307

main17571-54100iL..LN46..TW;L..LN46..ARL..IV3;18R..RN46..ARL..CBU;L..LN36,46..T1..(EUR,GEN)198103-198307

main17571-54130iL..LN30,40..5F..RCB198310-198403

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06004i18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;L..LN46..T1..ARL..CBU;18R..RN46..EUR,GEN,ME,SA197808-198403

17430PIPE ASSY, EXHAUST, TAIL

main17430-31161i12R#,18R..RN30,31197808-198204

main17430-31171i12R#,18R..RN40,41197808-198204

main17430-31320iL..LN30197909-198403

main17430-31330iL..LN40197909-198403

main17430-34410i18R..RN36197901-198307

main17430-34420i18R..RN46..ARL..IV3;L..LN46..T1..ARL..CBU;18R..RN46..T1..(EUR,GEN,ME,SA)197901-198307

main17430-34460i18R..RN46..TW198001-198307

main17430-54220iL..LN36198103-198307

main17430-54230iL..LN46..ARL..IV3;18R..RN46..ARL..CBU;L..LN46..T1..(EUR,GEN)198103-198307

main17430-54240iL..LN46..TW198103-198307

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17503-31030iL,12R#,18R..LN30,40,RN30,31,40,41..T1197808-198008

CTR

main17503-31031iL,12R#,18R..LN30,40,RN30,31,40,41..T1198008-198403

CTR

main17503-31040iL,12R..LN40,RN40..TW197901-198008

CTR

main17503-31041iL,12R..LN40,RN40..TW198208-198307

CTR

main17503-34020i18R..RN36;18R..RN46..ARL..IV3;18R..RN46..T1..(EUR,GEN)197901-198103

CTR

main17503-34030i18R..RN46..TW198001-198103

CTR

main17503-54010i18R..RN36;18R..RN46..ARL..IV3;L..LN46..T1..ARL..CBU;18R..RN46..T1..(EUR,GEN,ME,SA); L..LN46..ARL..IV3;18R..RN46..ARL..CBU;L..LN36,46..T1..(EUR,GEN)198103-198307

CTR

main17503-54020i18R..RN46..TW; L..LN46..TW198103-198307

CTR

main17504-31010iL,12R#,18R..LN3#,4#,RN3#,4#197808-198403

RH

main17507-31060iL,12R#,18R..LN3#,4#,RN3#,4#197808-198403

LH

17430BCUSHION, EXHAUST TAILPIPE(FOR FRONT)

main90540-09003×2iL,12R#,18R..LN3#,4#,RN3#,4#197808-198403

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main90301-33001×2iL,12R#,18R..LN3#,4#,RN3#,4#197808-198403

17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)

main17576-31050iL,12R#,18R..LN3#,4#,RN3#,4#197808-198403

17430GCUSHION, EXHAUST TAILPIPE(FOR CENTER)

main90540-09003iL,12R#,18R..LN3#,4#,RN3#,4#197808-198403

17430JBOLT OR RING, EXHAUST TAILPIPE(FOR CENTER)

main90301-33001×2iL,12R#,18R..LN3#,4#,RN3#,4#197808-198403

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17566-31020iL,18R..LN36,46,RN36,46198108-198307

LWR

main17566-54010iL..LN30,40197909-198108

main17575-31070i12R#,18R..RN30,31,40,41197808-198108

UPR

main17577-34040iL,18R..LN36,46,RN36,46197901-198307

UPR

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main17563-31090iL,18R..LN36,46,RN36,46198108-198307

main90917-08004iL,12R#,18R..LN30,40,RN30,31,40,41198108-198403

17430WCLAMP NO.2, EXHAUST TAILPIPE (FOR REAR)

main90461-23018iL,18R..LN36,46,RN36,46197901-198307

main90461-23020i12R#,18R..RN30,31,40,41197808-198108

main90461-23026i12R#,18R..RN30,31,40,41198108-198204

17505INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1

main17505-31010iL,12R#,18R..LN3#,4#,RN3#,4#197808-198307

9020909104

main90209-09104

9020912004

main90209-12004

9151161035

main91511-61035

9151161040

main91511-61040

9161140840

main91611-40840

9161160820

main91611-60820

9161160828

main91611-60828

9161160832

main91611-60832

9161161032

main91611-61032

9165160816

main91651-60816

9165160820

main91651-60820

9411040800

main94110-40800

9411050800

main94110-50800

9418040800

main94180-40800

9418041000

main94180-41000

9461310800

main94613-10800

32 parts on this diagram · 3 diagrams in section
