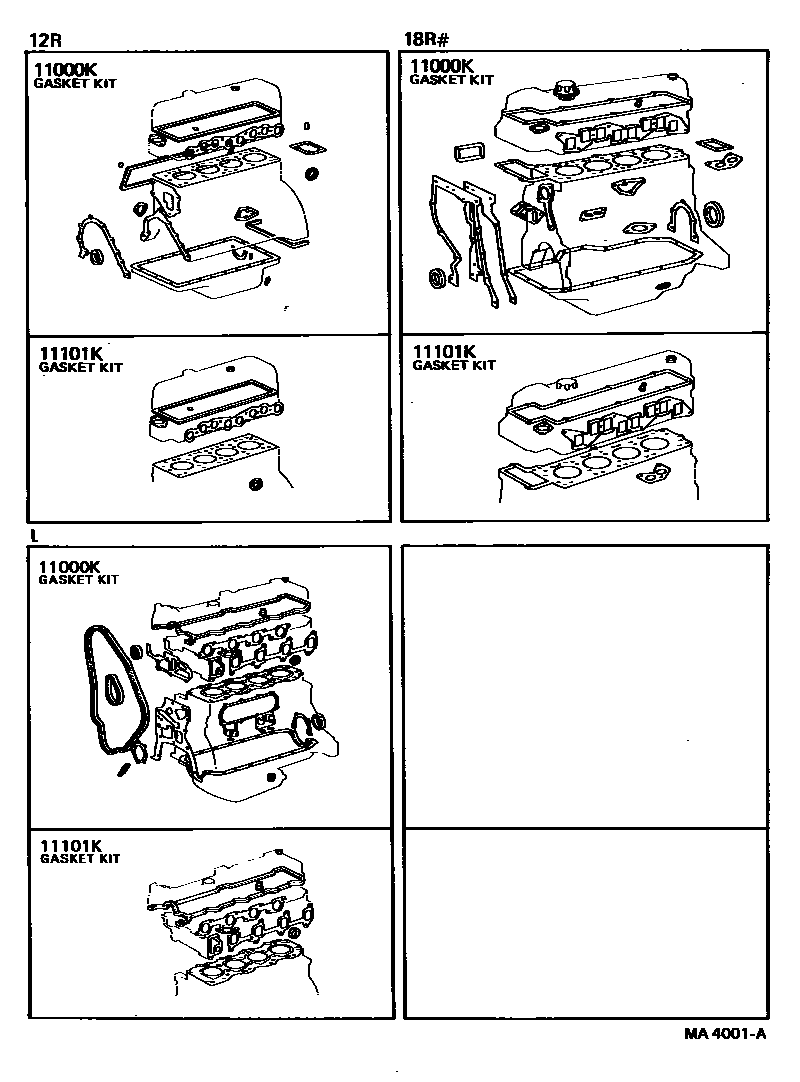

ENGINE OVERHAUL GASKET KIT

11000KGASKET KIT, ENGINE OVERHAUL

main04111-31033i12R..RN30,40197808-198101

main04111-31034i12R..RN30,40198101-198403

main04111-34062i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA; L..LN46..T1..ARL..CBU197808-198312

main04111-54020iL..LN30,40197909-198008

main04111-54021iL..LN30,40198008-198101

main04111-54022iL..LN3#,4#198101-198105

main04111-54023iL..LN3#,4#198105-198107

main04111-54024i18R..RN46..ARL..CBU; L..LN3#,4#198107-198108

main04111-54030i18R..RN46..ARL..CBU; L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198108-198111

main04111-54031i18R..RN46..ARL..CBU; L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198111-198201

main04111-54032i18R..RN46..ARL..CBU; L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198201-198204

main04111-54033i18R..RN46..ARL..CBU; L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198204-198306

main04111-54034i18R..RN46..ARL..CBU; L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198306-198403

11101KGASKET KIT, ENGINE VALVE GRIND

main04112-31033i12R..RN30,40197808-198108

main04112-31034i12R..RN30,40198108-198403

main04112-34060i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA; L..LN46..T1..ARL..CBU197808-198312

main04112-54010iL..LN30,40197909-198008

main04112-54011iL..LN3#,4#198008-198107

main04112-54012i18R..RN46..ARL..CBU; L..LN3#,4#198107-198108

main04112-54020i18R..RN46..ARL..CBU; L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198108-198111

main04112-54021i18R..RN46..ARL..CBU; L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198111-198306

main04112-54022i18R..RN46..ARL..CBU; L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198306-198403

2 parts on this diagram · 1 diagram in section
