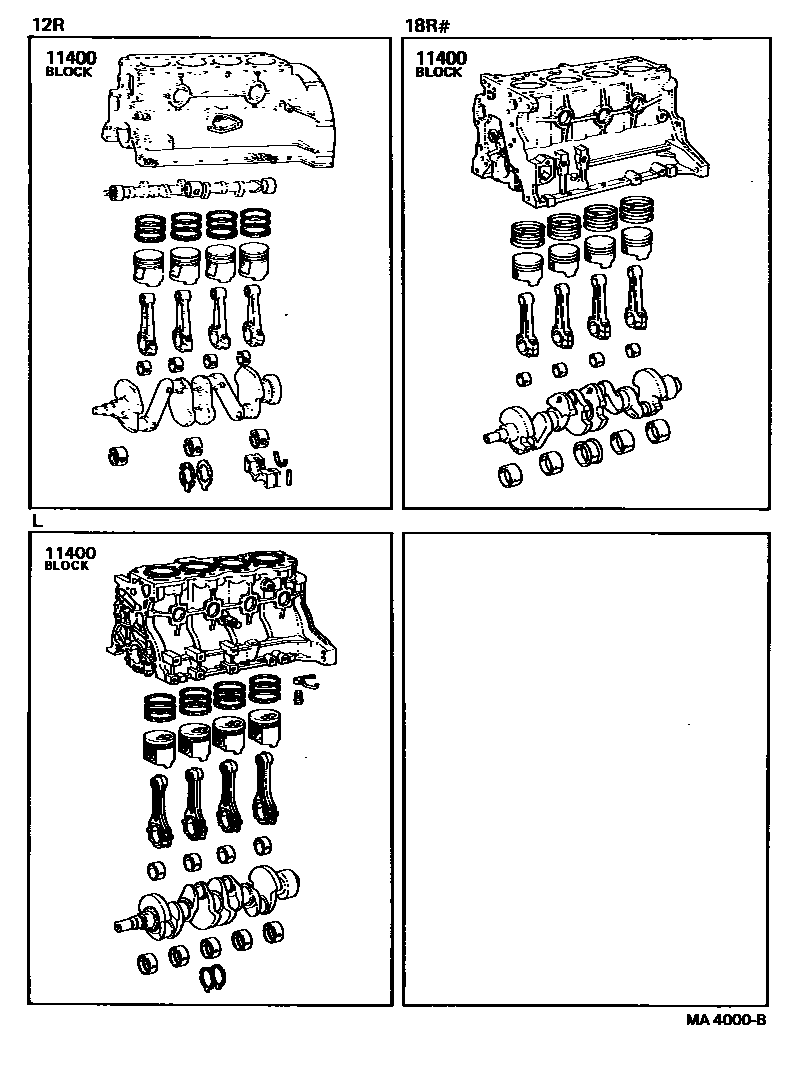

SHORT BLOCK ASSEMBLY

11400BLOCK ASSY, SHORT

main11400-31030i12R..RN30,40197808-198403

main11400-34043i18R..RN31,41197808-198104

main11400-34044i18R..RN31,41198104-198208

main11400-34045i18R..RN31,41198208-198312

main11400-34070i18R..RN36;18R..RN46..EUR,GEN;18R..RN46..ARL..IV3197901-198104

main11400-34071i18R..RN36;18R..RN46..ARL..IV3;L..LN46..T1..ARL..CBU;18R..RN46..EUR,GEN,ME,SA198104-198208

main11400-34072i18R..RN36;18R..RN46..ARL..IV3;L..LN46..T1..ARL..CBU;18R..RN46..EUR,GEN,ME,SA198208-198307

main11400-54010iL..LN3#,4#197909-198105

main11400-54011iL..LN3#,4#198105-198107

main11400-54013iL..LN30,40198304-198403

main11400-54020iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;18R..RN46..ARL..CBU;L..LN46..T1..(EUR,GEN)198107-198202

main11400-54021iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;18R..RN46..ARL..CBU;L..LN46..T1..(EUR,GEN)198202-198304

1 parts on this diagram · 1 diagram in section
