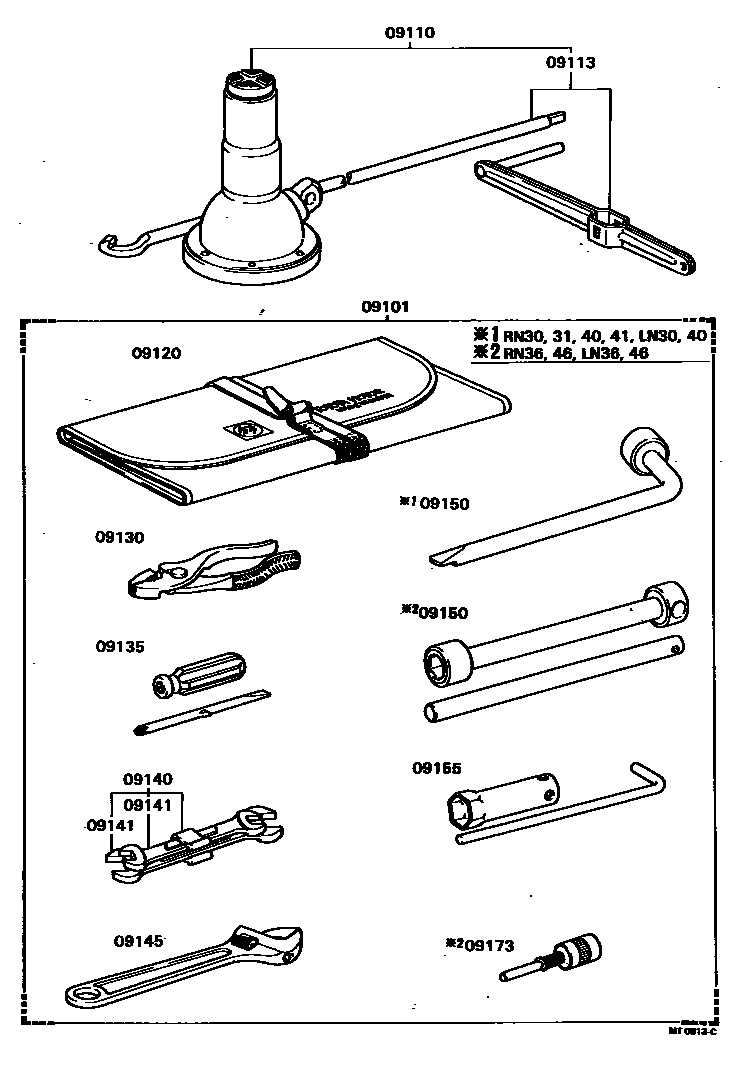

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-26100iRN30,31,40,41197901-197903

main09101-26101iRN30,31,40,41197903-198205

main09101-26130iLN30,40197909-198205

main09101-26190iLN30,40198205-198403

main09101-26192iRN30,31,40,41198301-198403

main09101-26201iRN30,31,40,41198205-198301

main09101-35080iRN3#,4#197808-197901

main09101-35160iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197901-198205

main09101-35190iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198103-198205

main09101-35240iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198205-198307

main09101-35241iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA198205-198307

09110JACK ASSY

main09110-35090iRN3#,4#197808-197901

main09110-35091iLN30,40,RN30,31,40,41197901-198403

main09110-35110iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198008

main09110-35120iLN36,46,RN36,46198008-198307

09113HANDLE, JACK

main09113-35060iRN3#,4#197808-197901

main09113-35070iLN30,40,RN30,31,40,41197901-198403

main09113-35100iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198008

main09113-35110iLN36,46,RN36,46198008-198307

09120BAG, TOOL

main09120-26021iLN3#,4#,RN3#,4#197808-198403

09130PLIERS

main09130-00010iLN3#,4#,RN3#,4#197808-198205

main99913-11500iLN3#,4#,RN3#,4#198205-198403

09135DRIVER, SCREW

main99915-10700iLN3#,4#,RN3#,4#197808-198403

09140SPANNER SET

main09140-27010iLN3#,4#,RN3#,4#197808-198403

09141SPANNER

main99914-11012iLN3#,4#,RN3#,4#197808-198403

10 X 12,10X12

main99914-11417iLN3#,4#,RN3#,4#197808-198403

14 X 17,14X17

09145WRENCH, MONKEY

main99911-10200iLN3#,4#,RN3#,4#197808-198403

09150WRENCH, HUB NUT BOX

main09150-26010iRN30,31,40,41197901-198301

main09150-30011iRN3#,4#197808-197901

main09150-35020iLN30,40197909-198403

main09150-60010iLN36,46,RN36,46197901-198307

09155WRENCH, SPARK PLUG

main09155-22010iRN3#,4#197808-197901

main09155-41010iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197901-198403

main09155-41020iRN30,31,40,41197901-197903

main09155-41030iRN30,31,40,41197903-198301

09173ATTACHMENT, GREASE GUN

main09173-00010iLN36,46,RN36,46197901-198307

12 parts on this diagram · 1 diagram in section
