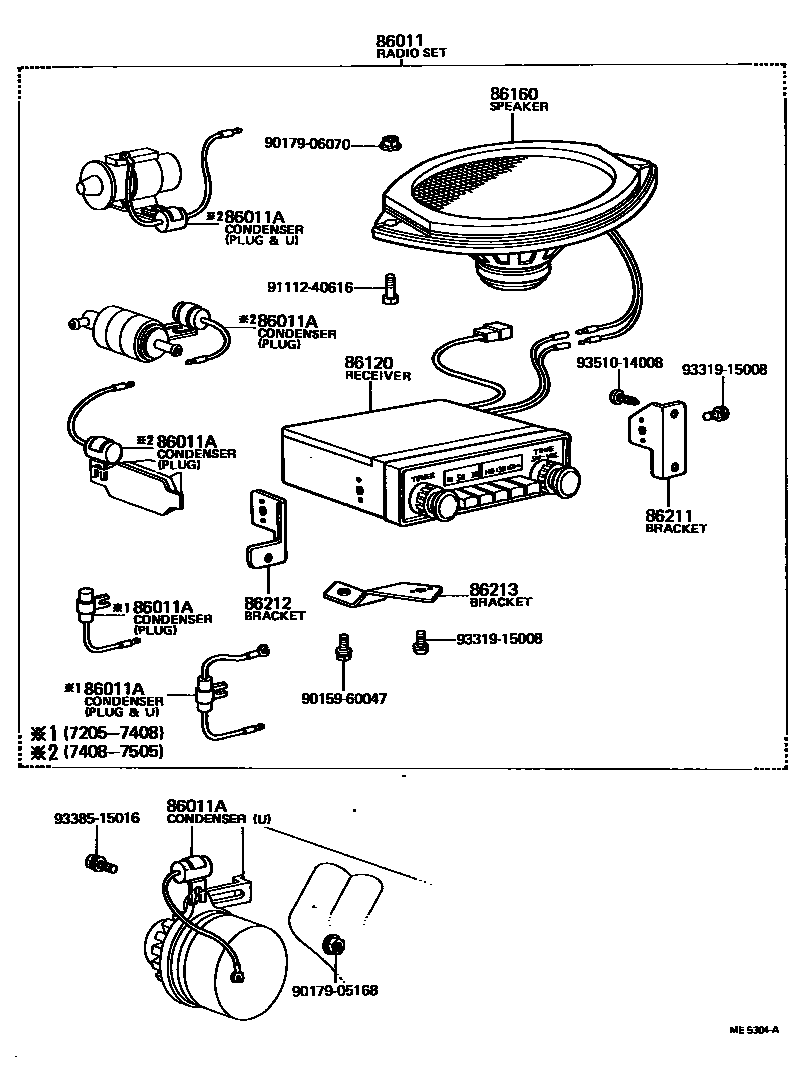

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011RADIO & SETTING PARTS SET

main86011-89104iRN2#197205-197408

AM

main86011-89106iRN2#197408-197505

AM

main86011-89108iRN2#197505-197807

AM

main86011-89111iRN20,22,25197708-197807

MW/SW

86011ACONDENSER, RADIO SETTING

main90980-04011×2iRN2#197205-197807

CONNECTOR: PLUG

main90980-04017iRN2#197303-197608

CONNECTOR: (U)

main90980-04018iRN2#197303-197408

CONNECTOR: PLUG&(U)

main90980-04022iRN2#197408-197807

CONNECTOR: PLUG&(U)

86120RECEIVER ASSY, RADIO

main86120-35024iRN2#197205-197505

AM

main86120-35025iRN2#197505-197807

AM

main86120-89103iRN20,22,25197708-197807

MW/SW

86160SPEAKER ASSY, FRONT NO.1

main86160-35010iRN2#197205-197505

AM

main86160-35011iRN2#197505-197807

AM

main86160-95402iRN20,22,25197708-197807

MW/SW

86211BRACKET, RADIO, NO.1

main86211-89101iRN2#197205-197512

main86211-89102iRN2#197512-197807

86212BRACKET, RADIO, NO.2

main86212-89101iRN2#197205-197512

main86212-89102iRN2#197512-197807

86213BRACKET, RADIO, NO.3

main86215-89103iRN2#197205-197408

main86215-89106iRN2#197408-197505

main86215-89107iRN2#197505-197807

9015960047

main90159-60047

9017905168

main90179-05168

9017906070

main90179-06070

9111240616

main91112-40616

9331915008

main93319-15008

9338515016

main93385-15016

9351014008

main93510-14008

14 parts on this diagram · 2 diagrams in section
