WINDSHIELD WIPER

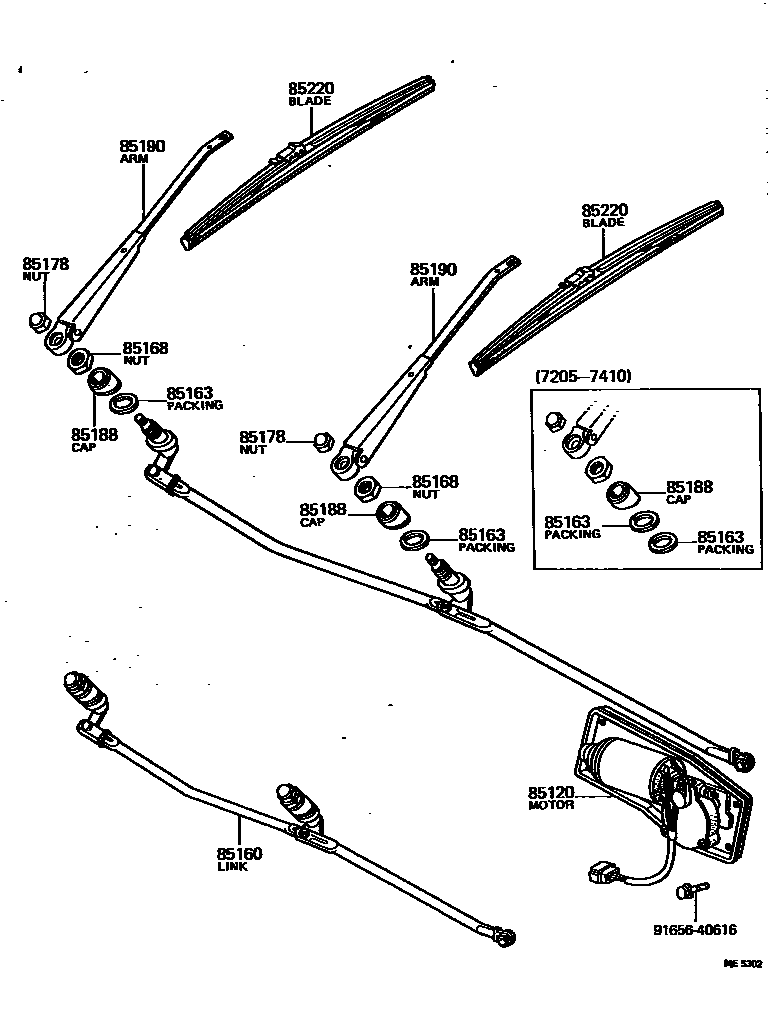

Parts diagram

85120MOTOR AND BRACKET ASSY, WINDSHIELD WIPER

main85120-89106i197205-197807

main85120-89107i197205-197708

main85120-89112i197708-197807

main85120-89113i197708-197807

EUR.SPEC.

85160LINK ASSY, WINDSHIELD WIPER

main85160-89105i197205-197608

main85160-89106i197205-197608

main85160-89108i197608-197710

main85160-89109i197608-197708

main85160-89111i197708-197711

main85160-89112i197708-197710

EUR.SPEC.

main85160-89114i197711-197807

main85160-89115i197710-197807

85163PACKING, WINDSHIELD WIPER PIVOT

main85163-20040×4i197205-197608

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85186-12170×2i197708-197807

EUR.SPEC.

main85186-12210×2i197608-197708

main85186-20040×2i197205-197608

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08005×2i197608-197708

main90176-08008×2i197205-197608

main90176-08019×2i197708-197807

EUR.SPEC.

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85179-14010×2i197410-197608

main85179-89107×2i197608-197708

main85179-89111×2i197708-197807

EUR.SPEC.

main85185-14040×2i197205-197410

85190ARM ASSY, WINDSHIELD WIPER

main85190-89106×2i197205-197710

main85190-89107×2i197205-197708

main85190-89108×2i197708-197804

main85190-89109×2i197708-197807

EUR.SPEC.

main85190-89110×2i197710-197807

main85190-89116×2i197804-197807

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12140×2i197708-197710

EUR.SPEC.

main85220-12190×2i197708-197711

main85220-12210×2i197710-197807

main85220-12220×2i197710-197807

EUR.SPEC.

main85220-12250×2i197711-197804

main85220-89102×2i197205-197708

main85220-89103×2i197205-197710

9165640616

main91656-40616

9 parts on this diagram · 2 diagrams in section
