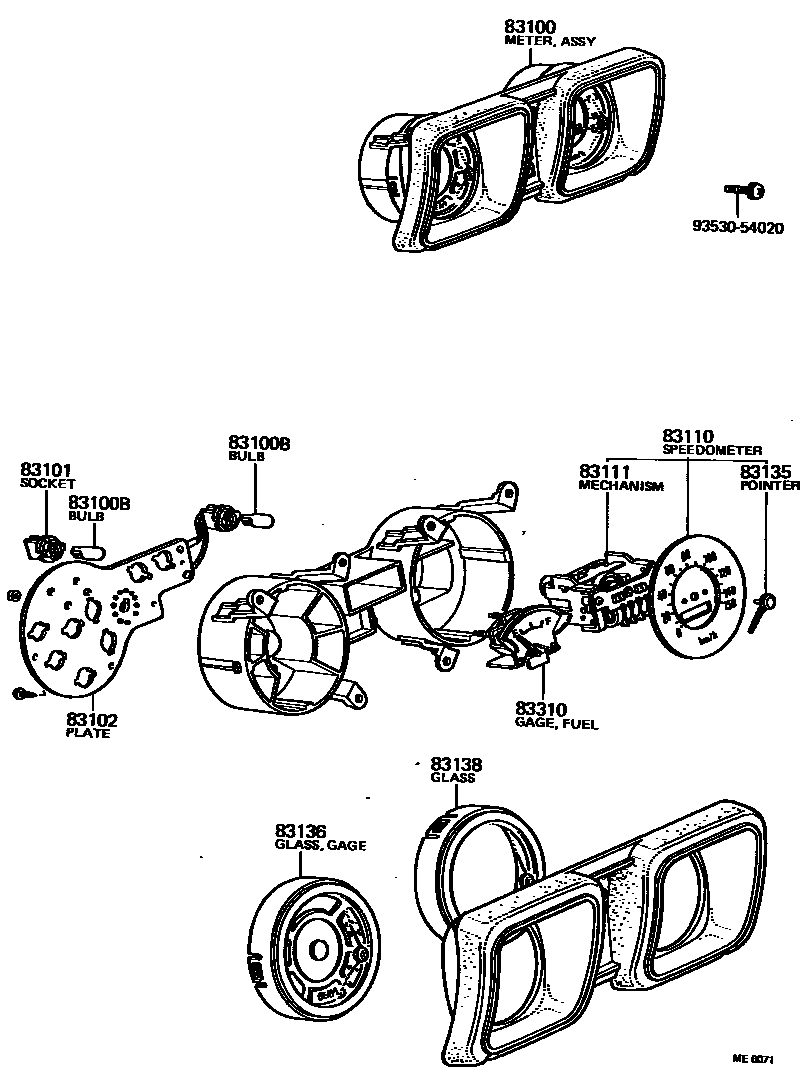

METER

0001 1 0002 1 0003 1

83100METER ASSY, COMBINATION

main83100-89110iRN2#197205-197210

MILE

main83100-89111iRN2#197205-197210

KM.

main83100-89114iRN2#197210-197511

KM.

main83100-89116iRN20,25197210-197511

MILE

main83100-89122iRN2#197511-197807

KM.

main83100-89123iRN20,25197511-197807

MILE

main83100-89129iRN20,25..4H197805-197807

AUSTRALIA

main83100-89129iRN20,25..4H197702-197807

AUSTRALIA N.S.W. SPEC.KM.

83100BBULB, COMBINATION METER, NO.1

main99132-12034iRN2#197205-197807

12V 3.4W,12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-12010iRN2#197205-197511

main83101-20040iRN2#197511-197807

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83102-89103iRN2#197205-197511

main83102-89122iRN2#197511-197807

83110SPEEDOMETER ASSY

main83110-89106iRN2#197205-197210

KM.

main83110-89108iRN2#197205-197210

MILE

main83110-89111iRN20,25197210-197511

MILE

main83110-89113iRN2#197210-197511

KM.

main83110-89122iRN20,22,25197511-197807

KM.

main83110-89123iRN20,25197511-197807

MILE

main83110-89124iRN20,25..4H197702-197807

AUSTRALIA N.S.W. SPEC.KM.

main83110-89124iRN27197805-197807

AUSTRALIA

83111MECHANISM, SPEEDOMETER

main83112-26014iRN2#197511-197807

KM.

main83112-89123iRN20,25197511-197807

MILE

main83114-89111iRN20,25197210-197511

MILE

main83114-89113iRN2#197210-197511

KM.

83135POINTER, SPEEDOMETER

main83135-89102iRN2#197210-197807

83136GLASS, GAGE METER

main83141-89101iRN2#197205-197511

main83141-89102iRN2#197511-197807

83138GLASS, SPEEDOMETER

main83138-89102iRN2#197210-197807

83310GAGE ASSY, FUEL RECEIVER

main83310-89102iRN2#197205-197511

main83310-89103iRN2#197511-197807

9353054020

main93530-54020

11 parts on this diagram · 3 diagrams in section
