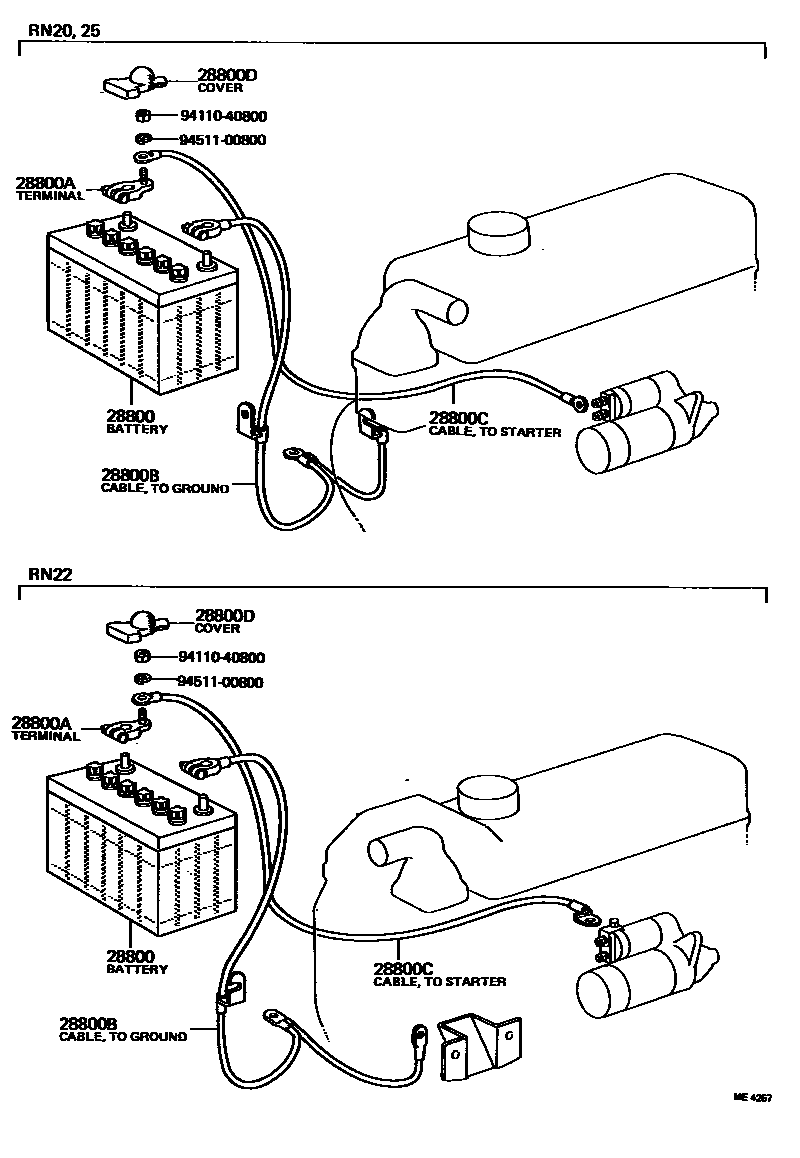

BATTERY & BATTERY CABLE

28800BATTERY

main28800-21021i12R,18R..RN2#197205-197612

NS40ZL KOBE

main28800-26040i12R,18R..RN2#197612-197807

34B19L,NS40ZAL,GS

main28800-30100i12R,18R..RN2#197205-197612

NS40ZL,GS

main28800-30131i12R..RN20,25197205-197807

55D26R,N50ZL,GS

main28800-31021i12R#..RN20,25197205-197807

32C24L,N40L,KOBE

main28800-31031i12R#..RN20,25197205-197807

32C24L,N40L,GS

main28800-41010i12R..RN20,25197208-197807

55D26L,N50ZL,KOBE

28800ATERMINAL, BATTERY POSITIVE

main90982-05004i12R#,18R..RN2#197503-197807

FOR NS40ZL & NS40ZAL

main90982-05005i12R..RN20,25197503-197807

FOR N40L & N50ZL

main90982-05006i12R,18R..RN2#197205-197503

FOR NS40ZL

main90982-05007i12R,18R..RN2#197205-197503

FOR N40L & N50ZL

28800BCABLE, BATTERY TO GROUND

main90982-02059i12R#..RN20,25197206-197807

FOR NS40ZL & NS40ZAL

main90982-02085i12R..RN20,25197206-197807

FOR N40L & N50ZL

main90982-02087i12R..RN2#197205-197206

FOR NS40ZL

main90982-02090i12R..RN2#197205-197206

FOR N40L & N50ZL

main90982-02111i18R..RN22,27197404-197807

FOR NS40ZL & NS40ZAL

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main90982-01149i12R,18R..RN2#197205-197708

main90982-01254i12R#,18R..RN2#197708-197807

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12030i12R#,18R..RN2#197408-197807

9411040800

main94110-40800

9451100800

main94511-00800

7 parts on this diagram · 1 diagram in section
