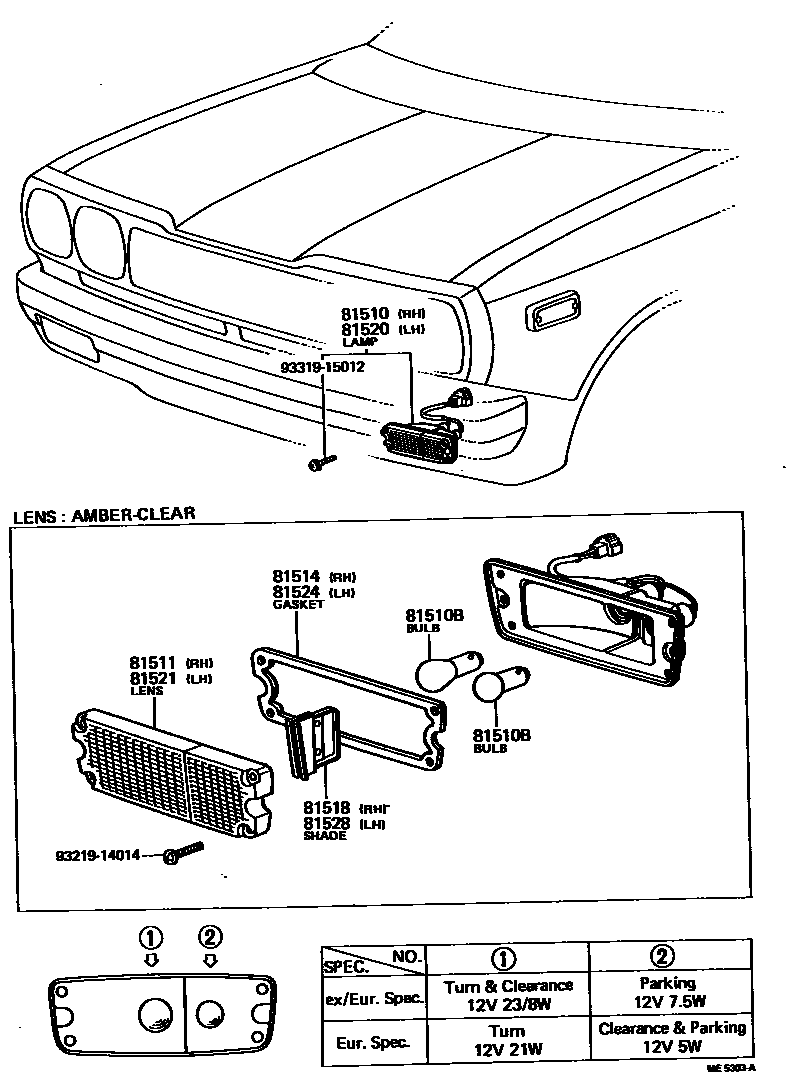

FRONT TURN SIGNAL LAMP

0001 1 0002 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-89804iRN2#197205-197705

AMBER

main81510-89806iRN20,25197205-197705

AMBER-CLEAR

main81510-89808iRN20,25197605-197705

EUR.SPEC. AMBER-CLEAR

main81510-89810iRN20,22,25197705-197807

AMBER

main81510-89811iRN20,25,27197705-197807

AMBER-CLEAR

main81510-89813iRN20,25197705-197807

EUR.SPEC. AMBER-CLEAR

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11050×2iRN20,25197605-197807

12V 5W,12V 5W EUR.SPEC.

main99132-11075×2iRN20,25,27197205-197807

12V 7.5W,12V 7.5W

main99132-11210×2iRN20,25197605-197807

12V 21W,12V 21W EUR.SPEC.

main99132-11230×2iRN20,25,27197205-197807

12V 23W,12V 23W

main99132-21230×2iRN20,22,25197205-197807

12V 23/8W,12V 23/8W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-89105iRN20,22,25197205-197807

AMBER

main81511-89106iRN20,25,27197205-197807

AMBER-CLEAR

81514GASKET, FRONT TURN SIGNAL LAMP BODY, RH

main81512-89104iRN2#197205-197212

main81512-89105iRN2#197212-197807

81518SHADE, FRONT TURN SIGNAL LAMP, RH

main81517-89101iRN20,25,27197205-197807

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-89804iRN2#197205-197705

AMBER

main81520-89806iRN20,25197205-197705

AMBER-CLEAR

main81520-89808iRN20,25197605-197705

EUR.SPEC. AMBER-CLEAR

main81520-89810iRN20,22,25197705-197807

AMBER

main81520-89811iRN20,25,27197705-197807

AMBER-CLEAR

main81520-89813iRN20,25197705-197807

EUR.SPEC. AMBER-CLEAR

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-89104iRN20,22,25197205-197807

AMBER

main81521-89105iRN20,25,27197205-197807

AMBER-CLEAR

81524GASKET, FRONT TURN SIGNAL LAMP BODY, LH

main81512-89104iRN2#197205-197212

main81522-89104iRN2#197212-197807

81528SHADE, FRONT TURN SIGNAL LAMP, LH

main81527-89101iRN20,25,27197205-197807

9321914014

main93219-14014

9331915012

main93319-15012

11 parts on this diagram · 2 diagrams in section
