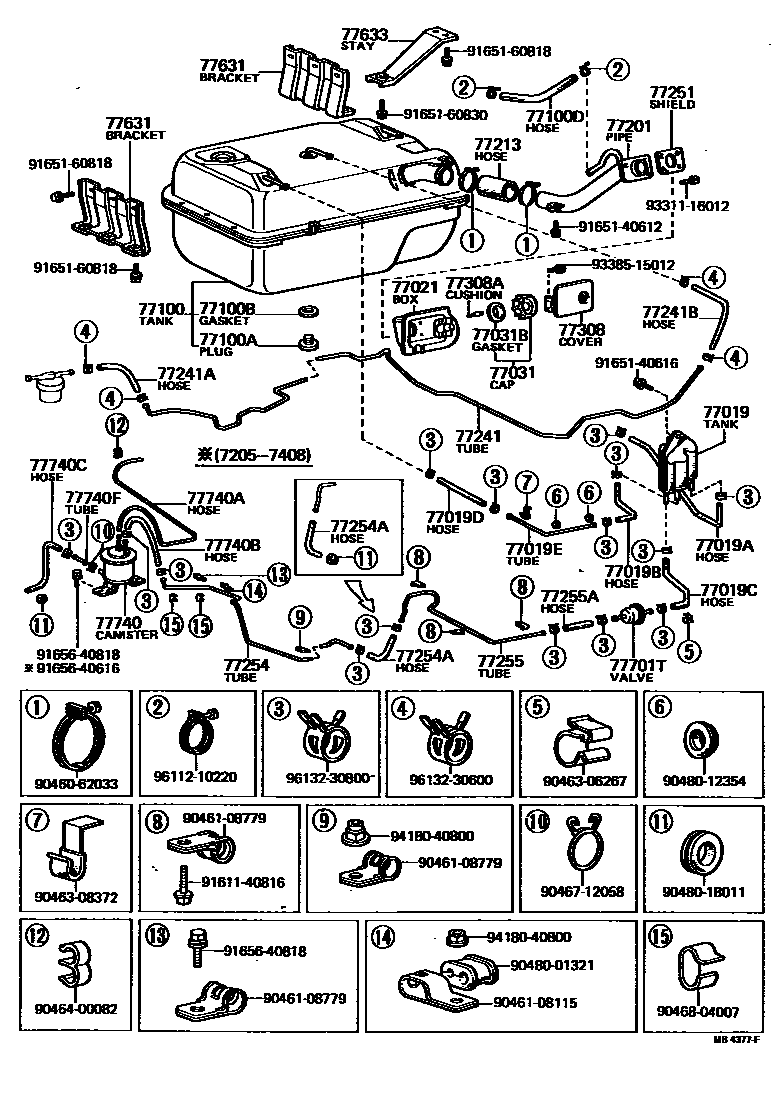

FUEL TANK & TUBE

0001 1 0002 1 0004 1 0005 1

77019TANK SUB-ASSY, FUEL EXPANSION

main77193-35010iRN20,25; RN22..5F197205-197807

77019AHOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK)

main77226-35020iRN20,25; RN22..5F197205-197807

77019BHOSE, FUEL, NO.2(FOR FUEL EXPANSION TANK)

main77225-35020iRN20,25; RN22..5F197205-197807

77019CHOSE, FUEL, NO.3(FOR FUEL EXPANSION TANK)

main77224-35010iRN20,25; RN22..5F197205-197807

77019DHOSE, FUEL, NO.4(FOR FUEL EXPANSION TANK)

main95332-08024iRN20,25; RN22..5F197205-197807

L=300(*H,L=240)

77019ETUBE, FUEL, NO.1(FOR FUEL EXPANSION TANK)

main77244-35010iRN20,25; RN22..5F197205-197807

77021BOX ASSY, FUEL TANK INLET

main65507-89102iRN20,25; RN22..5F197205-197807

main65507-89105iRN27197710-197807

77031CAP ASSY, FUEL TANK

main77310-12041iRN2#197511-197708

main77310-14070iRN2#197708-197807

main77310-89105iRN22197404-197511

CHROME PLATED

77031BGASKET (FOR FUEL TANK CAP)

main77316-12040iRN2#197205-197708

main77316-12050iRN2#197708-197807

77100TANK ASSY, FUEL

main77001-35909iRN20,25197205-197408

main77001-35915iRN22197404-197408

main77001-35918iRN20,25; RN22..5F197408-197807

main77001-35920iRN22..RHD197408-197807

main77001-35922iRN27197710-197807

77100APLUG(FOR FUEL TANK)

main90105-12018iRN22197404-197605

main90341-24036iRN20,25197205-197605

77100BGASKET(FOR FUEL TANK)

main90430-12038iRN2#197605-197704

main90430-12245iRN2#197704-197807

main90430-24047iRN20,25197205-197605

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main90445-21883iRN22,27..RHD197608-197807

L=320

main90445-22904iRN20,25; RN22..5F197702-197807

L=300

main90445-22907iRN22197404-197608

L=310

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-35060iRN20,25; RN22..5F197205-197807

main77201-35071iRN22,27..RHD197404-197807

77213HOSE, FUEL TANK SUB INLET

main77214-35030iRN2#197205-197212

main77214-35031iRN20,25; RN22..5F197212-197807

main77214-35050iRN22,27..RHD197404-197807

77241TUBE, FUEL MAIN, NO.1

main77252-35080iRN20197205-197408

main77252-35090iRN25197205-197408

main77252-35100iRN22197404-197408

main77252-35120iRN20197408-197605

main77252-35121iRN20; RN22..5F197605-197807

main77252-35130iRN25197408-197605

main77252-35131iRN25197605-197807

main77252-35140iRN22197408-197605

main77252-35141iRN22,27..RHD197605-197807

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95331-06026iRN2#197408-197509

*H,L=260

main95331-08022iRN2#197205-197408

*H,L=220

main95332-06028iRN2#197509-197807

L=300(*H,L=280)

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main95331-08015iRN22197404-197408

*H,L=150

main95331-08030iRN20,25197205-197408

*H,L=300

main95332-06030iRN20,25; RN22..5F197408-197807

L=300

main95332-06046iRN22..RHD197408-197807

L=600(*H,L=460)

main95332-06050iRN27197710-197807

L=600(*H,L=500)

77251SHIELD, FUEL TANK, INLET, NO.1

main77262-35011iRN2#197205-197807

77254TUBE, FUEL EMISSION, NO.1

main77254-35021iRN20,25..4H197501-197511

FOR W/CANISTER

main77254-35022iRN20,25..4H197511-197605

FOR W/CANISTER

main77254-35023iRN20,25..4H197605-197704

FOR W/CANISTER

main77254-35024iRN20,25..4H; RN27197704-197807

FOR; FOR W/CANISTER

77254AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)

main77754-35010iRN20,25197205-197702

L=300

main77754-35040iRN22..RHD197408-197807

L=480

main77754-35050iRN22197404-197408

L=480

main95331-08024iRN20,25..4H197501-197511

*H,L=240,FOR W/CANISTER

main95332-06015iRN27197710-197807

L=200(*H,L=150),FOR W/CANISTER

main95332-06024iRN20,25..4H197511-197807

L=300(*H,L=240),FOR W/CANISTER

77255TUBE, FUEL EMISSION, NO.2

main77245-35010iRN20; RN22..5F197205-197807

main77245-35020iRN25197205-197807

main77255-35030iRN20..4H197511-197807

FOR W/CANISTER

main77255-35040iRN25..4H197511-197807

FOR W/CANISTER

main77263-35010iRN27197710-197807

FOR W/CANISTER

77255AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)

main95331-06065iRN27197710-197807

*H,L=650

main95331-08005iRN20,25; RN22..5F197702-197807

*H,L=50

77308COVER SUB-ASSY, FUEL INLET BOX

main77308-89101iRN20,25,27; RN22..5F197205-197807

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-05080×2iRN20,25,27; RN22..5F197205-197807

77631BRACKET, FUEL TANK, NO.1

main77631-35061×2iRN20,25; RN22..5F197205-197807

77633STAY, FUEL TANK

main77633-35010iRN2#197205-197212

main77633-35011iRN20,25; RN22..5F197212-197807

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10004iRN2#197205-197212

main90917-10012iRN2#197212-197408

main90917-10020iRN22..RHD197408-197807

77740CANISTER ASSY, CHARCOAL

main77740-35022iRN20,25..4H197501-197511

AUSTRALIA SPEC.

main77740-35023iRN20,25..4H197511-197606

AUSTRALIA SPEC.

main77740-35024iRN20,25..4H; RN27197606-197801

AUSTRALIA SPEC.

main77740-35025iRN20,25..4H; RN27197801-197807

AUSTRALIA SPEC.

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main90445-07338iRN20,25..4H197501-197511

L=950

main95411-19960iRN27197805-197807

*H,L=540,MARK=#*

main95411-19995iRN20..RHD197511-197704

*H,L=800,MARK=#*

77740BHOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)

main95331-06026iRN20,25..4H197511-197704

*H,L=260

main95331-08026iRN20,25..4H197501-197511

*H,L=260

main95332-06024iRN20,25..4H; RN27197704-197807

L=300(*H,L=240)

77740CHOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)

main77754-35020iRN20,25..4H197501-197704

L=320

77740FTUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main77246-35010iRN20,25..4H; RN27197501-197807

9046062033

main90460-62033

9046108115

main90461-08115

9046108779

main90461-08779

9046306267

main90463-06267

9046308372

main90463-08372

9046400082

main90464-00082

9046712058

main90467-12058

9046804007

main90468-04007

9048001321

main90480-01321

9048012354

main90480-12354

9048018011

main90480-18011

9161140816

main91611-40816

9165140612

main91651-40612

9165140616

main91651-40616

9165160818

main91651-60818

9165160830

main91651-60830

9165640616

main91656-40616

9165640818

main91656-40818

9331116012

main93311-16012

9338515012

main93385-15012

9418040800

main94180-40800

9611210220

main96112-10220

9613230600

main96132-30600

9613230800

main96132-30800

57 parts on this diagram · 4 diagrams in section
