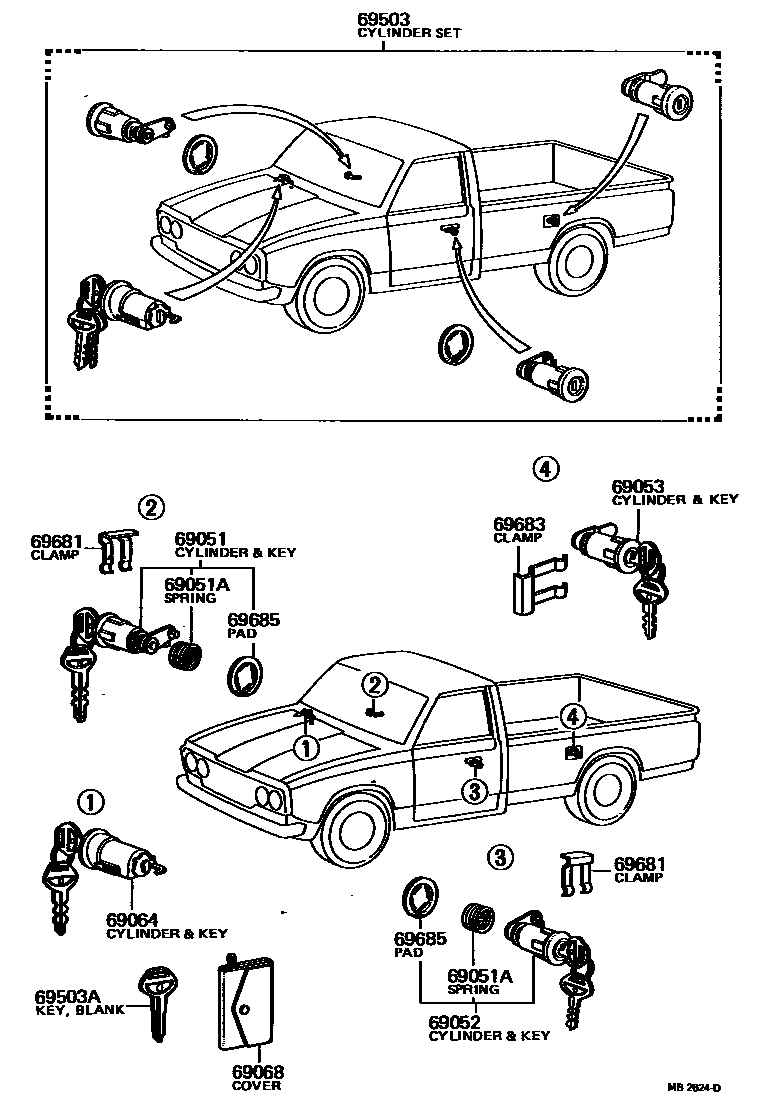

SEPARATION DOOR PANEL & GLASS

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-19015iRN2#197205-197708

sub69051-19016

main69051-89803iRN2#197708-197807

sub69051-89106

69051ASPRING, DOOR LOCK CYLINDER

main90508-09279iRN2#197205-197807

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-19015iRN2#197205-197708

sub69052-19016

main69052-89803iRN2#197708-197807

sub69052-89106

69053CYLINDER & KEY SET, FUEL INLET LOCK

main69053-89101iRN22..5F197205-197807

sub69053-10011

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69064-89101iRN22..5F197205-197807

FOR L/STEERING LOCK

main69064-89102iRN20,25197205-197807

FOR W/STEERING LOCK

69068COVER SUB-ASSY, KEY

main84041-89102iRN2#197205-197807

69503CYLINDER SET, LOCK

main69503-89902iRN20,25197205-197807

FOR L/STEERING LOCK

main69503-89906iRN20,25197205-197807

FOR W/STEERING LOCK

main69503-89907iRN22..RHD197404-197807

main69503-89910iRN27197710-197807

FOR W/STEERING LOCK

69503AKEY, BLANK

main90999-00054iRN2#197205-197807

sub90999-00066

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-20010iRN2#197205-197807

sub69681-20040

69683CLAMP, FUEL LOCK CYLINDER

main69681-20010iRN22..5F197205-197807

sub69681-20040

69685PAD, LOCK CYLINDER

main69685-12010iRN2#197205-197807

11 parts on this diagram · 1 diagram in section
