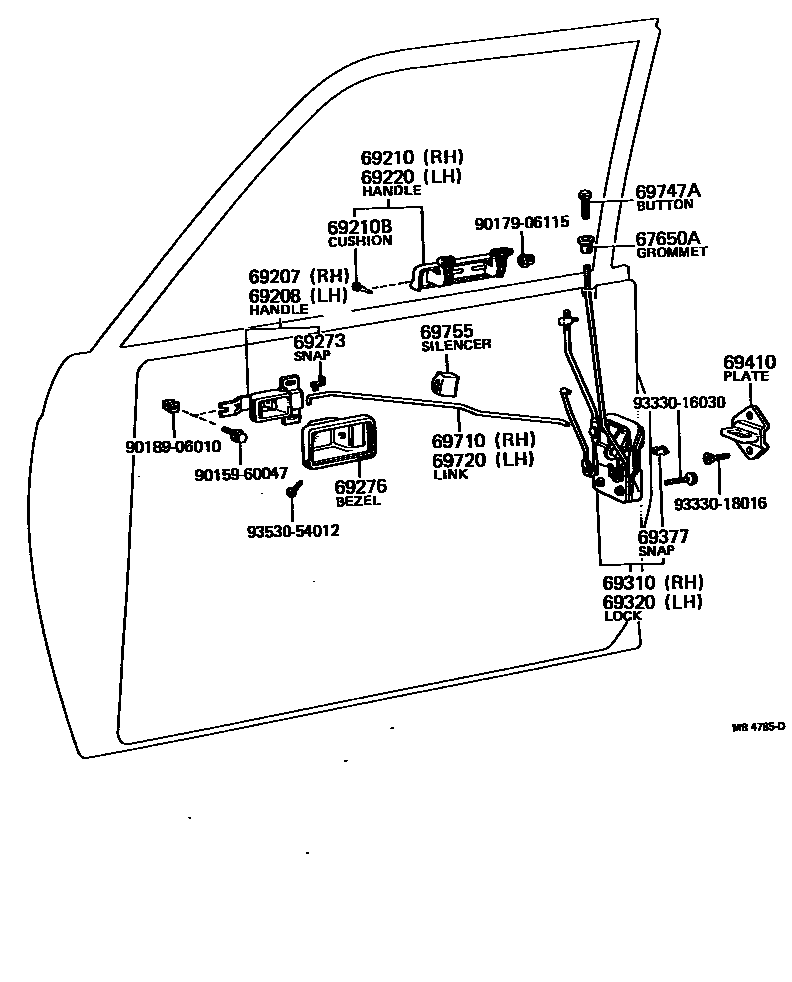

FRONT DOOR LOCK & HANDLE
67650AGROMMET(FOR DOOR PANEL LOCK BUTTON)
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
AUSTRALIA SPEC.
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
AUSTRALIA SPEC.
69273SNAP, DOOR INSIDE HANDLE ROD
69276BEZEL, FRONT DOOR INSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69377SNAP, FRONT DOOR LOCK CONTROL ROD
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)
69755SILENCER, FRONT DOOR LOCK LINK
9015960047
main90159-60047
9017906115
main90179-06115
9018906010
main90189-06010
9333016030
main93330-16030
9333018016
main93330-18016
9353054012
main93530-54012
22 parts on this diagram · 1 diagram in section
