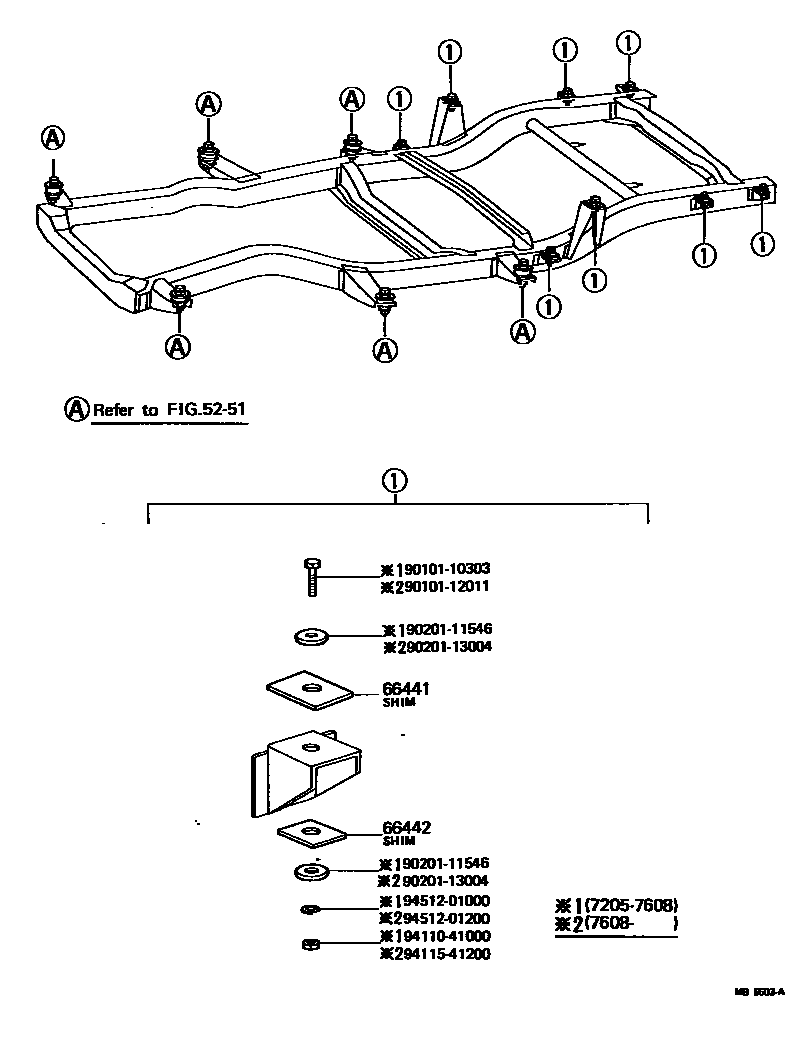

REAR BODY MOUNTING

5251CAB MOUNTING & BODY MOUNTING

→ Go to FIG 52-51

66441SHIM, MOUNTING, NO.1

main90950-04002×8iRN2#197205-197608

50X40

main90950-04016×8iRN2#197704-197807

40X40

main90950-04017×8iRN2#197608-197704

50X40

66442SHIM, MOUNTING, NO.2

main90950-04003×8iRN2#197205-197608

40X40

main90950-04016×8iRN2#197608-197807

40X40

9010110303

main90101-10303

9010112011

main90101-12011

9020111546

main90201-11546

9020113004

main90201-13004

9411041000

main94110-41000

9411541200

main94115-41200

9451201000

main94512-01000

9451201200

main94512-01200

11 parts on this diagram · 1 diagram in section
