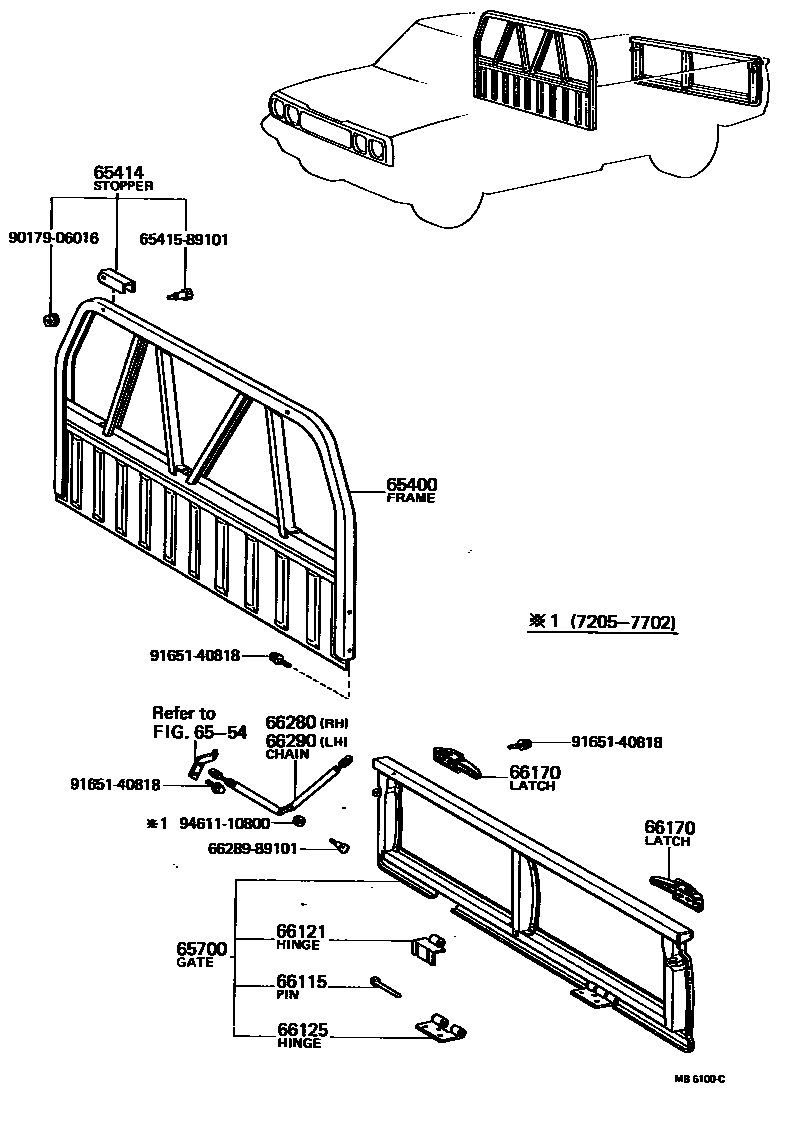

REAR BODY GUARD FRAME & TAIL GATE

65400FRAME ASSY, REAR BODY GUARD

main65400-89103iRN20,25,27; RN22..5F197205-197807

65414STOPPER, GUARD FRAME

main65414-89801×2iRN20,25,27; RN22..5F197205-197807

6554REAR BODY SIDE PANEL

→ Go to FIG 65-54

65700GATE ASSY, REAR BODY TAIL

main65700-89112iRN20,25,27; RN22..5F197205-197807

66115PIN, GATE HINGE

main90243-08028×2iRN22..ATM;RN20..RHD..4F197205-197807

66121HINGE, TAIL GATE, MALE

main66111-89103×2iRN20,25,27; RN22..5F197205-197807

66125HINGE, TAIL GATE, FEMALE

main66112-89102×2iRN20,25,27; RN22..5F197205-197807

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-89103×2iRN20,25,27; RN22..5F197205-197807

66280CHAIN ASSY, TAIL GATE, RH

main90583-05007iRN20,25,27; RN22..5F197205-197807

66290CHAIN ASSY, TAIL GATE, LH

main90583-05007iRN20,25,27; RN22..5F197205-197807

6541589101PROTECTOR, GUARD FLAME

main65415-89101

6628989101BOLT, TAIL GATE CHAIN

main66289-89101

9017906016

main90179-06016

9165140818

main91651-40818

9461110800

main94611-10800

15 parts on this diagram · 1 diagram in section
