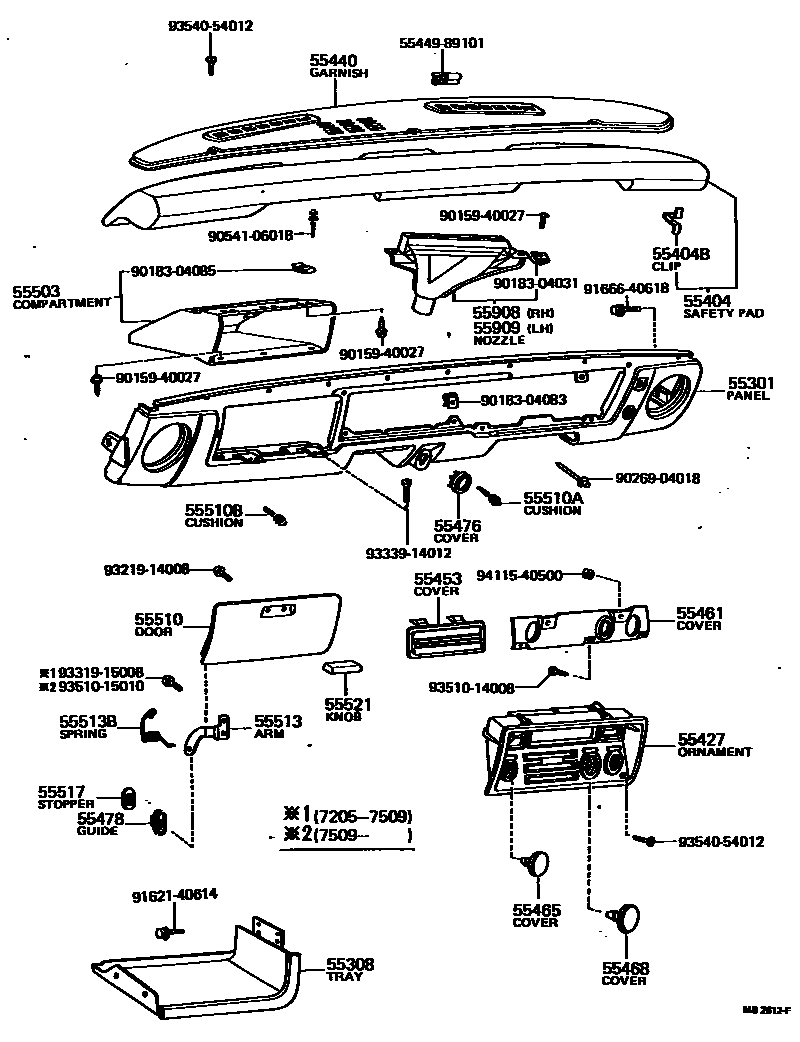

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-89107iRN2#..RHD197205-197408

main55301-89108iRN20,25..LHD197205-197408

main55301-89109iRN2#..RHD197408-197807

main55301-89110iRN20,22,25..LHD197410-197807

main55301-89112iRN20,25..LHD197408-197410

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55308-89102iRN2#..RHD197205-197512

main55308-89103iRN20,25..LHD197205-197512

main55308-89104iRN20,25..RHD197708-197807

main55308-89105iRN20,22,25..LHD197512-197807

main55308-89106iRN22,27..RHD197708-197807

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55404-89107-01iRN2#197205-197807

BLACK,BLACK

main55404-89107-04iRN2#197708-197807

BLUE,BLUE

main55404-89107-06iRN2#197408-197807

BROWN,BROWN

55404BCLIP, SAFETY PAD SET

main75395-30010×10iRN2#197205-197703

55427ORNAMENT, INSTRUMENT PANEL, CENTER

main55416-89101iRN20,25197205-197408

FOR L/HEATER

main55416-89102iRN2#197205-197408

FOR W/HEATER

main55416-89105iRN20,25; RN22..5F197408-197807

FOR; FOR L/HEATER

main55416-89106iRN20,25; RN22,27..RHD197408-197807

FOR; FOR W/HEATER

55440GARNISH, INSTRUMENT PANEL, CENTER

main55443-89101iRN2#197205-197807

55453COVER, RADIO TUNER OPENING

main55463-89103iRN20,25; RN22..RHD197205-197807

55461COVER, HEATER CONTROL HOLE

main55912-89102iRN20,25; RN22..5F197205-197807

55465COVER, INSTRUMENT HOLE

main55465-89101iRN2#197205-197807

55468COVER, HEATER SWITCH HOLE

main55468-10021iRN20,25; RN22..5F197205-197807

55476COVER, CIGARETTE LIGHTER HOLE

main55476-89101iRN20,25197205-197807

55478GUIDE, GLOVE COMPARTMENT DOOR CHECK ARM HOLE

main55478-12011iRN2#197205-197807

55503COMPARTMENT SUB-ASSY, GLOVE

main55503-89102iRN2#197205-197807

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-89103iRN2#197205-197807

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-05080iRN2#197205-197807

55510BCUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-06108iRN2#197205-197807

55513ARM, GLOVE COMPARTMENT DOOR CHECK

main55513-89103iRN2#..RHD197205-197807

main55513-89104iRN20,22,25..LHD197205-197807

55513BSPRING, TORSION(FOR GLOVE COMPARTMENT DOOR CHECK ARM)

main90508-29347iRN20,22,25..LHD197205-197807

main90508-29348iRN2#..RHD197205-197807

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-20010iRN2#197205-197807

55521KNOB, GLOVE COMPARTMENT DOOR

main55521-12012iRN2#197205-197807

55908NOZZLE SUB-ASSY, DEFROSTER, RH

main55951-89102iRN20,25; RN22,27..RHD197205-197807

55909NOZZLE SUB-ASSY, DEFROSTER, LH

main55952-89102iRN20,25; RN22,27..RHD197205-197807

5544989101COVER, COOLER SWITCH HOLE

main55449-89101

9015940027

main90159-40027

9018304031

main90183-04031

9018304083

main90183-04083

9018304085

main90183-04085

9026904018

main90269-04018

9054106018

main90541-06018

9162140614

main91621-40614

9166640618

main91666-40618

9321914008

main93219-14008

9331915008

main93319-15008

9333914012

main93339-14012

9351014008

main93510-14008

9351015010

main93510-15010

9354054012

main93540-54012

9411540500

main94115-40500

38 parts on this diagram · 2 diagrams in section
