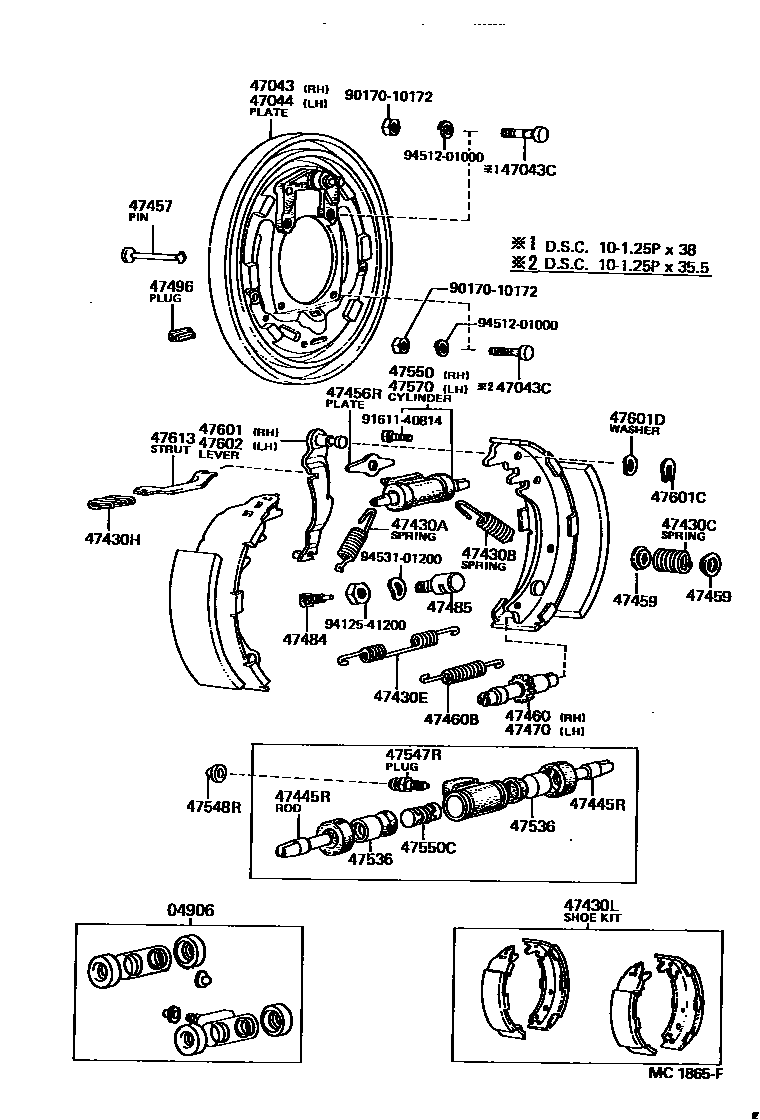

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04906CUP KIT, REAR WHEEL CYLINDER
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
sub47043-35042
47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
*10-1.25PX37-18.5,10-1.25PX37-16.5
*10-1.25PX41-18,10-1.25PX41-18
10-1.25PX35.5-15
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
sub47044-35032
47430ASPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430HSPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
47445RROD, REAR WHEEL CYLINDER
47456RPLATE, REAR BRAKE SHOE GUIDE
47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
sub47405-30011
47460BSPRING, TENSION(FOR REAR BRAKE ADJUSTER)
47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
sub47406-30011
47484BOLT, REAR BRAKE SHOE RETRACTING SPRING CLAMP
47485SPACER OR HOLDER, SHOE RETRACTING SPRING CLAMP
47496PLUG, HOLE(FOR REAR BRAKE)
47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
sub47531-26070
47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47601CWASHER, C(FOR REAR BRAKE)
T=1.6
47601DWASHER, WAVE(FOR REAR BRAKE)
47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)
FOR RH.
FOR LH.
9017010172
main90170-10172
9161140814
main91611-40814
9412541200
main94125-41200
9451201000
main94512-01000
9453101200
main94531-01200
