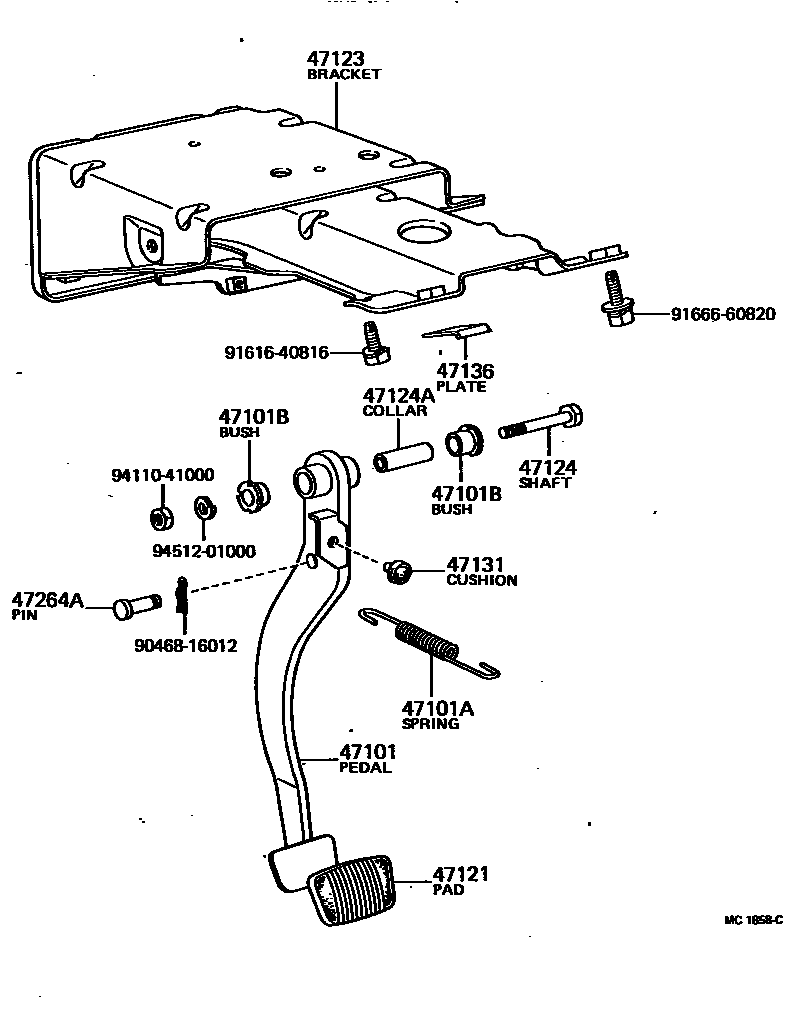

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-35060iRN2#..RHD..MTM197205-197807

main47101-35070iRN20,22,25..LHD197205-197807

main47101-35080iRN22..ATM197404-197408

main47101-35130iRN22..ATM197408-197807

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-16386iRN2#197205-197807

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007×2iRN2#197205-197807

47121PAD, BRAKE PEDAL

main31321-20020iRN2#..MTM197205-197807

main47121-12011iRN22..ATM197408-197807

main47121-30050iRN22..ATM197404-197408

47123BRACKET, BRAKE PEDAL

main55106-89105iRN2#..RHD197205-197408

main55106-89106iRN2#..4F197205-197211

main55106-89107iRN20,25..LHD197211-197408

main55106-89109iRN2#..RHD197408-197807

main55106-89110iRN20,22,25..LHD197408-197807

47124SHAFT, BRAKE PEDAL

main90101-10170iRN20,22,25..LHD197205-197807

main91121-51060iRN2#..RHD197205-197807

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main47144-35010iRN20,22,25..LHD197205-197807

main90387-10003iRN2#..RHD197205-197807

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iRN2#197205-197807

47136PLATE, BRAKE PEDAL BRACKET

main55159-89101iRN20,25..LHD; RN22197205-197408

47264APIN(FOR PUSH ROD)

main90249-10048iRN2#197205-197807

9046816012

main90468-16012

9161640816

main91616-40816

9166660820

main91666-60820

9411041000

main94110-41000

9451201000

main94512-01000

15 parts on this diagram · 2 diagrams in section
